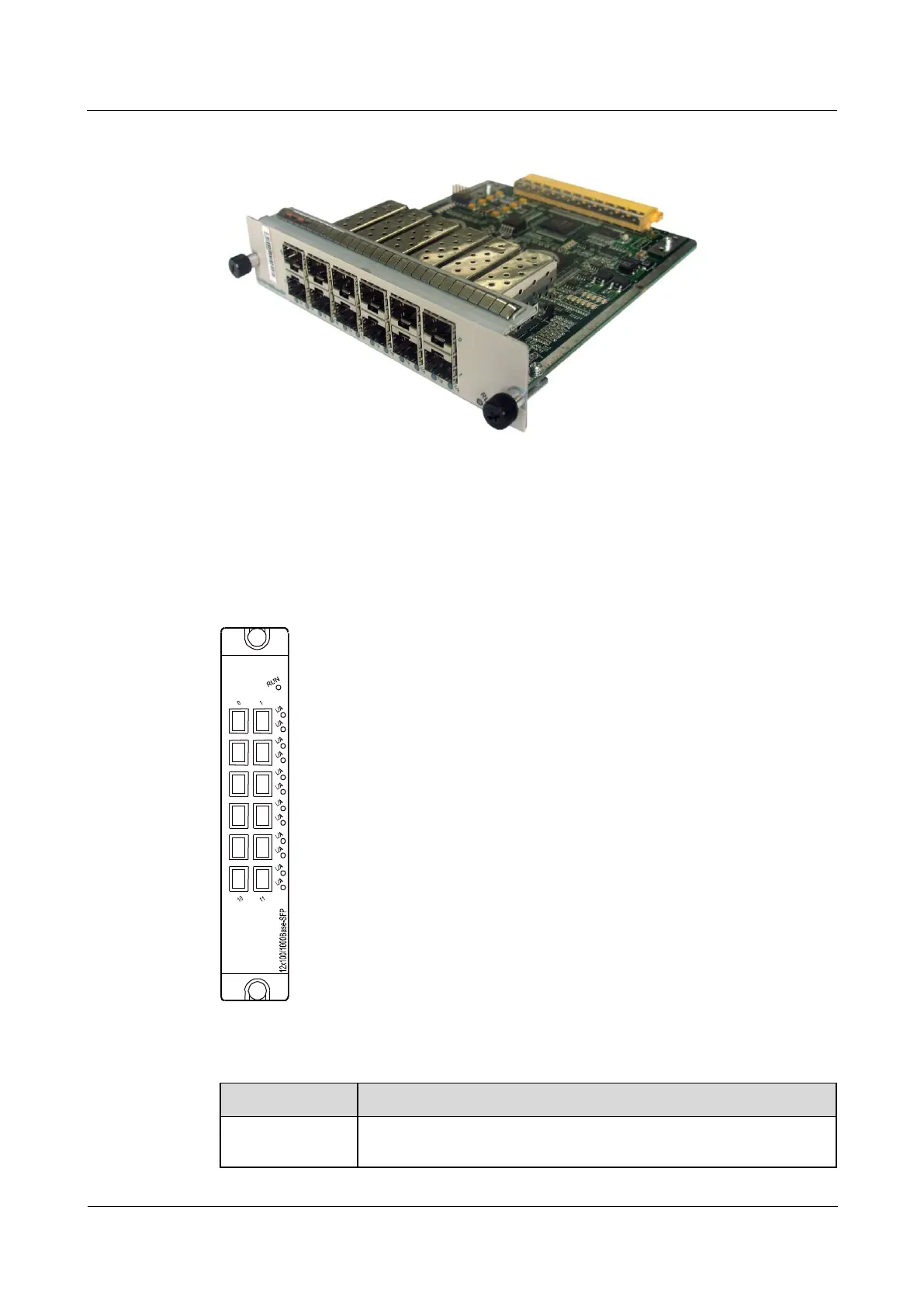

Figure 6-184 Appearance of the 12-port 100/1000Base-SFP FPIC
Panel
Figure 6-185 shows the panel appearance of the 12-port 100/1000Base-SFP FPIC. Table
6-526 describes the indicators on the panel.
Figure 6-185 Panel appearance of the 12-port 100/1000Base-SFP FPIC
Table 6-526 Indicators on the panel of the 12-port 100/1000Base-SFP FPIC
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
