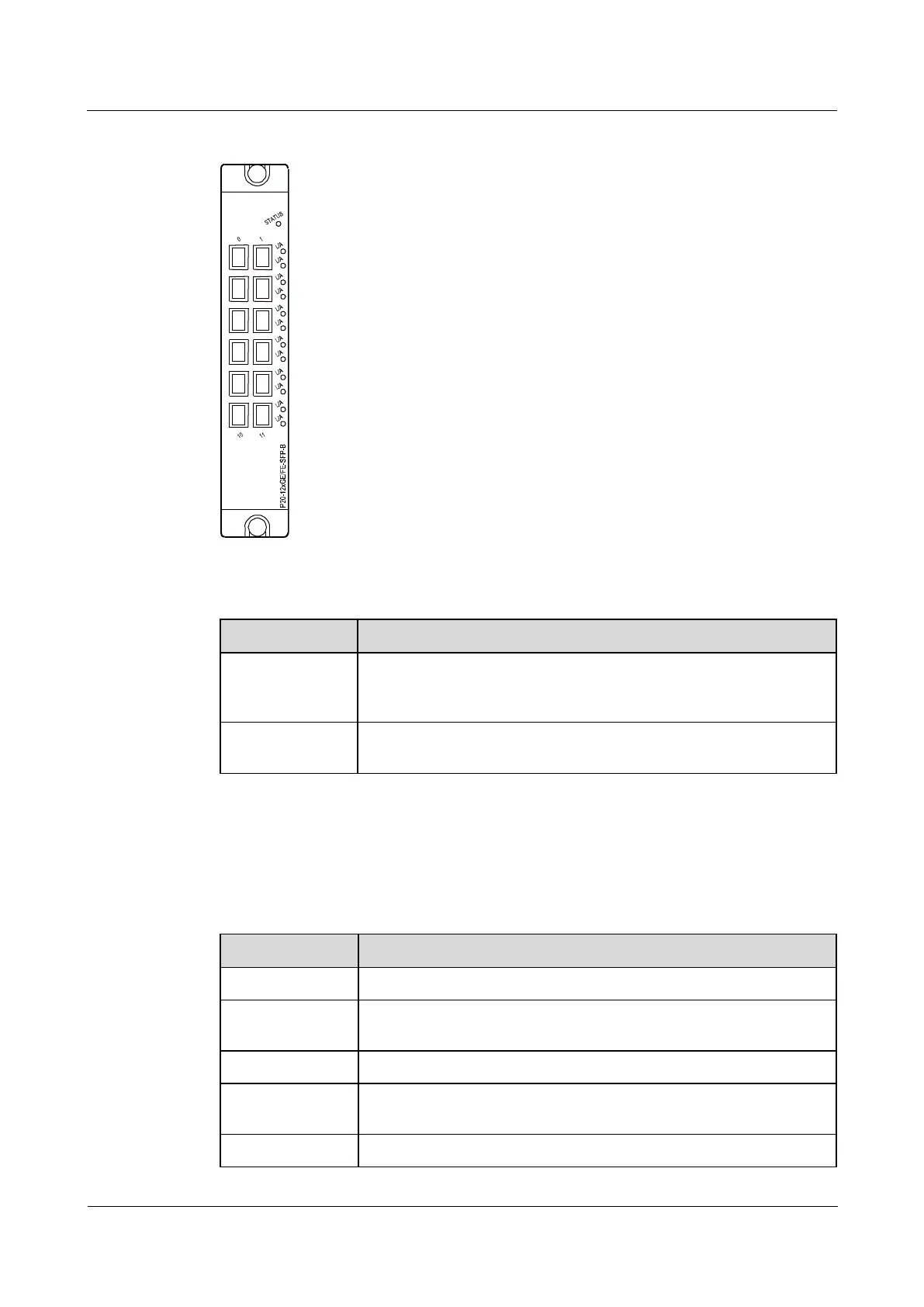

Figure 6-189 Panel appearance of the 12-port 100/1000Base-X-SFP Flexible Card B
Table 6-539 Indicators on the panel of the 12-port 100/1000Base-X-SFP Flexible Card B
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
LINK/ACT
indicator
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
Interface Attributes
Table 6-540 lists the interface attributes of the 12-port 100/1000Base-X-SFP Flexible Card B.
Table 6-540 Interface attributes of the 12-port 100/1000Base-X-SFP Flexible Card B
Attributes
Description
Connector type
LC/PC
Optical interface
attributes
Compliant with the selected SFP optical module
Working mode
Full-duplex
Compliant
standard
IEEE 802.3-2002
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
