6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
545
Panel

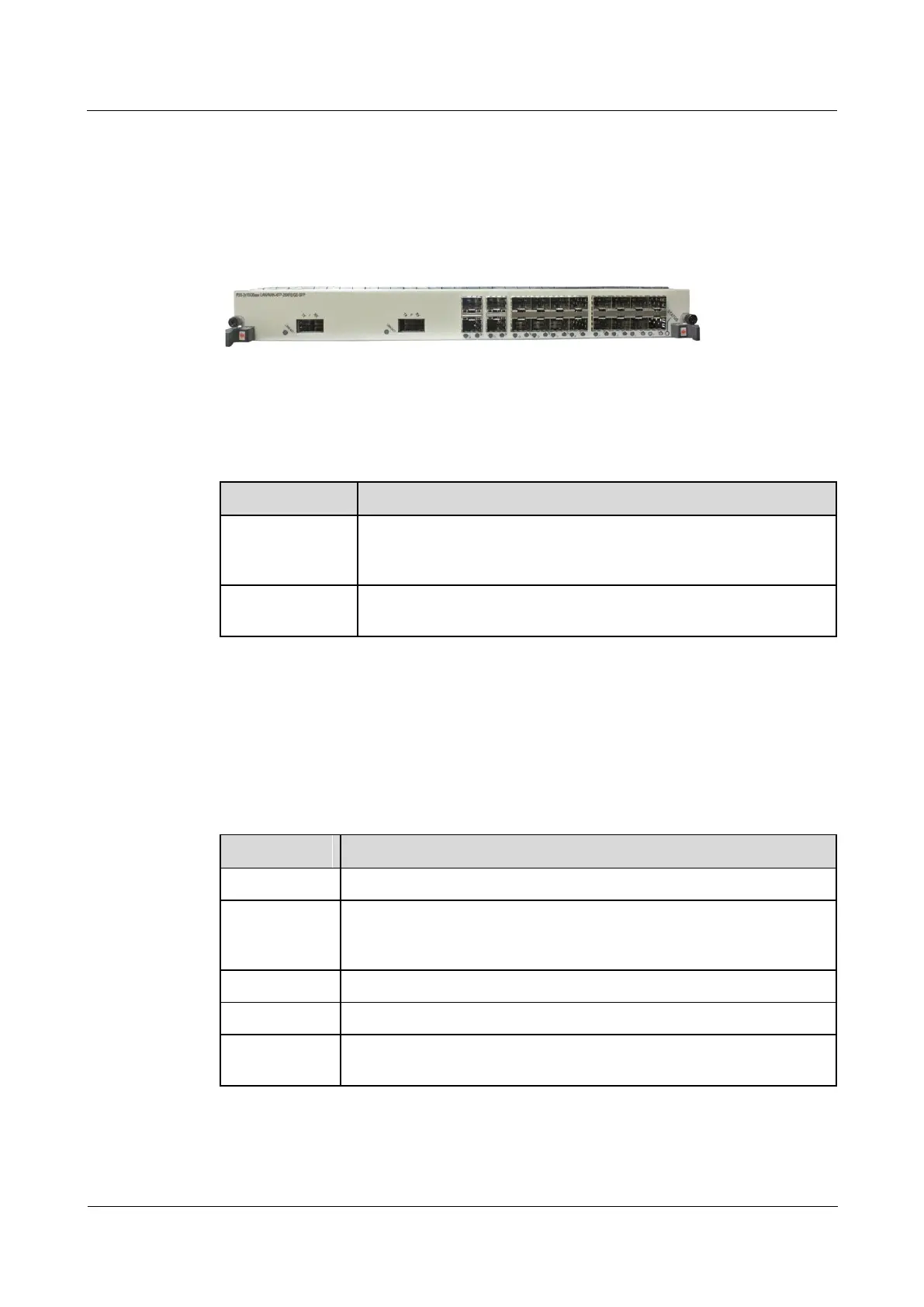

Figure 6-203 shows the panel appearance of the 2-port 10GBase LAN/WAN-XFP+20-Port
100/1000Base-X-SFP FPIC. Table 6-576 describes the indicators on the panel.
Figure 6-203 Panel appearance of the 2-port 10GBase LAN/WAN-XFP+20-Port
100/1000Base-X-SFP FPIC
Table 6-576 lists the indicators on the panel.
Table 6-576 Indicators on the panel of the 2-port 10GBase LAN/WAN-XFP+20-Port
100/1000Base-X-SFP FPIC
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
Interface Attributes
Table 6-577 lists the interface attributes of the 2-port 10GBase LAN/WAN-XFP+20-Port
100/1000Base-X-SFP FPIC.
Table 6-577 Interface attributes of the 2-port 10GBase LAN/WAN-XFP+20-Port
100/1000Base-X-SFP FPIC
Attributes
Description
Connector type
LC/PC,RJ45
Optical
interface
attributes
Compliant with the selected XFP optical module. (for the attributes of
XFP modules, see Table 6-578)
Working mode
Full-duplex
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network
protocol
IP
