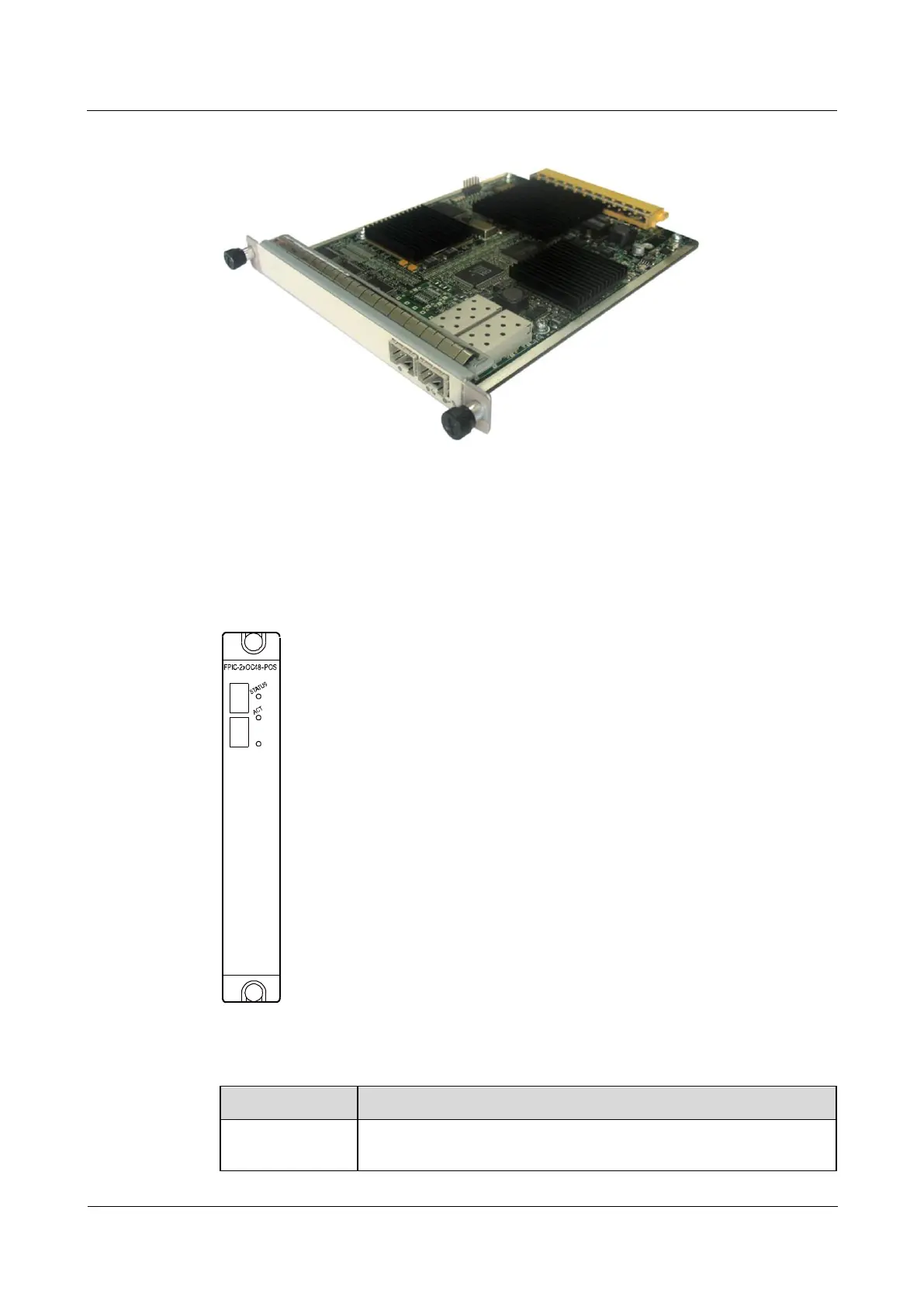

Figure 6-210 Appearance of the 2-port OC-48c/STM-16c POS-SFP FPIC
Panel
Figure 6-211 shows the panel appearance of the 2-port OC-48c/STM-16c POS-SFP FPIC.
Table 6-598 describes the indicators on the panel.
Figure 6-211 Panel appearance of the 2-port OC-48c/STM-16c POS-SFP FPIC
Table 6-598 Indicators on the panel of the 2-port OC-48c/STM-16c POS-SFP FPIC
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
