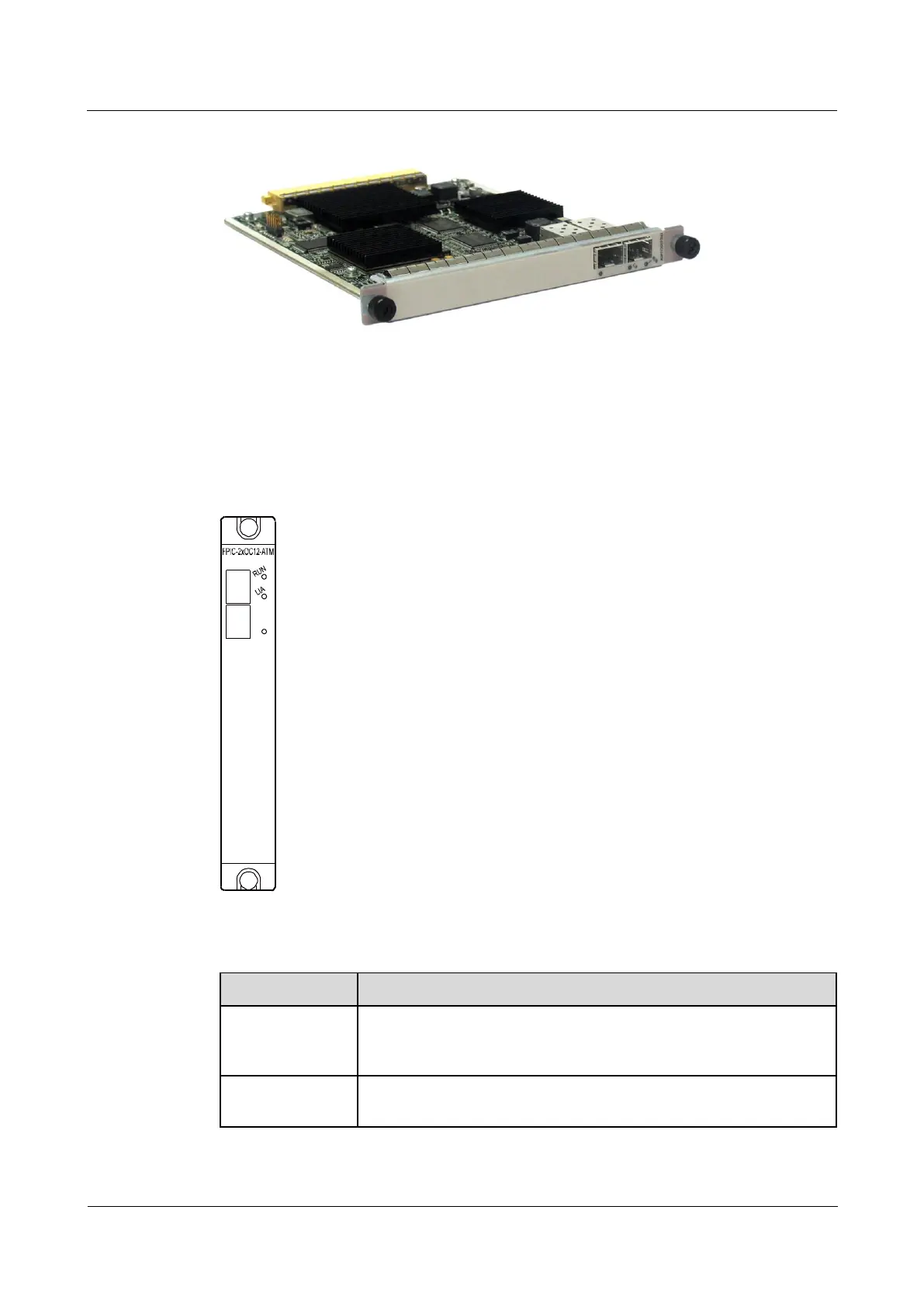

Figure 6-222 Appearance of the 2-port OC-12c/STM-4c ATM-SFP FPIC
Panel
Figure 6-223 shows the panel appearance of the 2-port OC-12c/STM-4c ATM-SFP FPIC.
Table 6-628 describes the indicators on the panel.
Figure 6-223 Panel appearance of the 2-port OC-12c/STM-4c ATM-SFP FPIC
Table 6-628 Indicators on the panel of the 2-port OC-12c/STM-4c ATM-SFP FPIC
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
