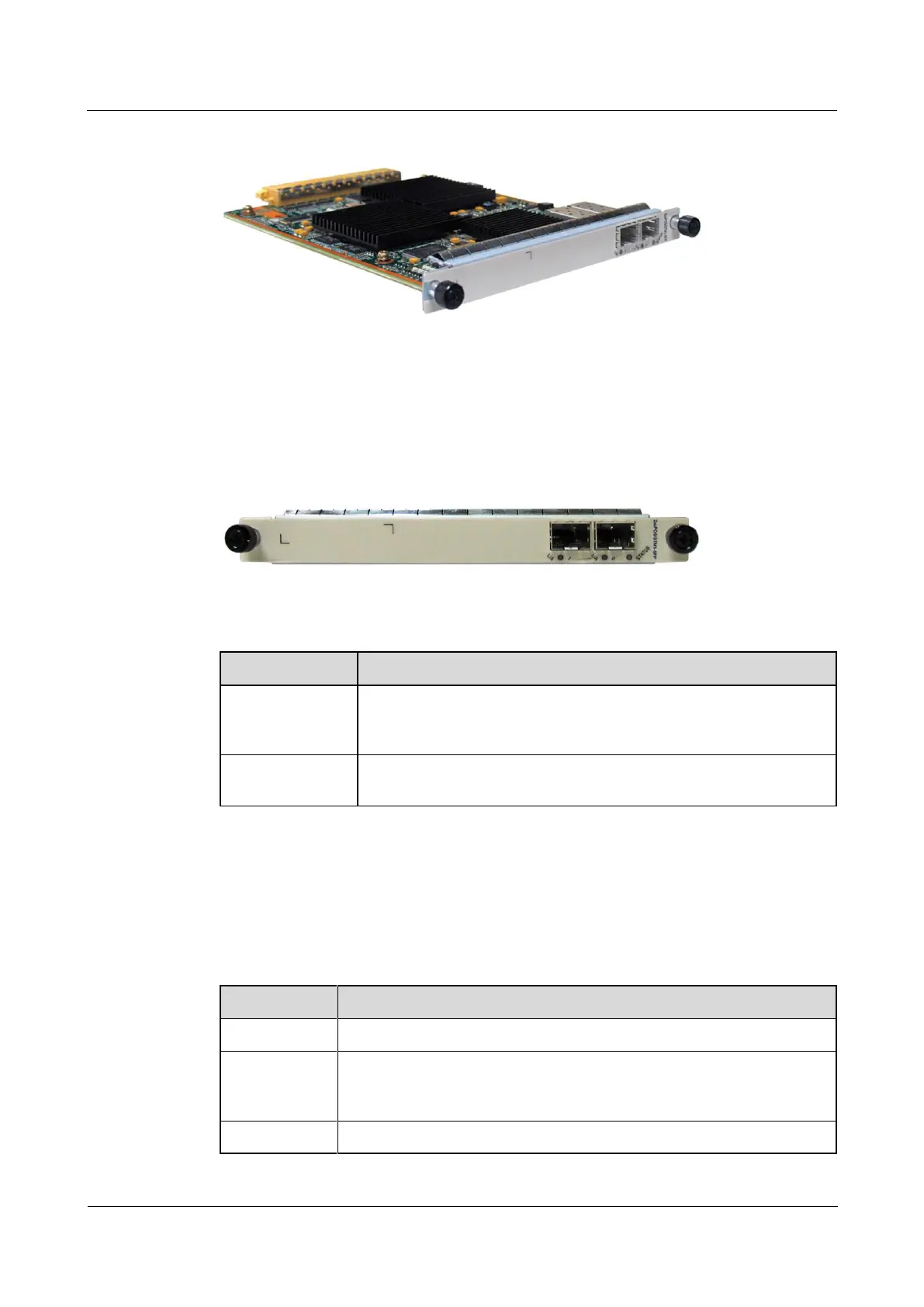

Figure 6-228 Appearance of the 2-port channelized OC-3c/STM-1c POS-SFP FPIC
Panel
Figure 6-229 shows the panel appearance of the 2-port channelized OC-3c/STM-1c POS-SFP
FPIC. Table 6-651 describes the indicators on the panel.
Figure 6-229 Panel appearance of the 2-port channelized OC-3c/STM-1c POS-SFP FPIC
Table 6-651 Indicators on the panel of the 2-port channelized OC-3c/STM-1c POS-SFP FPIC
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
Interface Attributes
Table 6-652 lists the interface attributes of the 2-port channelized OC-3c/STM-1c POS-SFP
FPIC.
Table 6-652 Interface attributes of the 2-port channelized OC-3c/STM-1c POS-SFP FPIC
Optical
interface
attributes
Compliant with the selected SFP optical module (for the attributes of SFP
modules, see Table 6-653)
