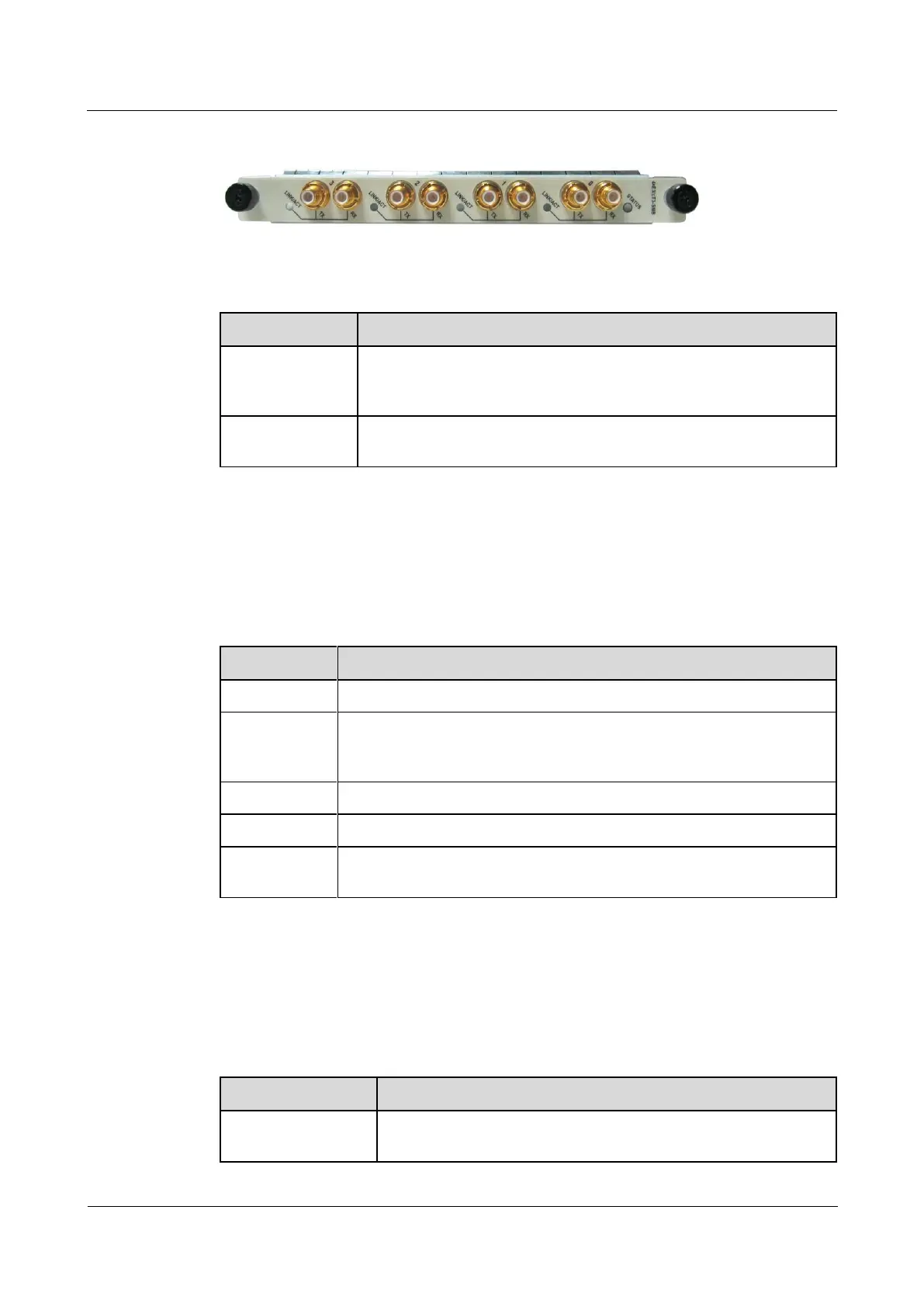

Figure 6-236 Panel appearance of the 4-port clear channel E3/channelized T3-SMB FPIC
Table 6-660 Indicators on the panel of the 4-port clear channel E3/channelized T3-SMB FPIC
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
Interface Attributes
Table 6-661 lists the interface attributes of the 4-port clear channel E3/channelized T3-SMB
FPIC.
Table 6-661 Interface attributes of the 4-port clear channel E3/channelized T3-SMB FPIC
Attributes
Description
Connector type
SMB
Electrical
interface
attribute
E3/CT3
Working mode
Full-duplex
Link protocol
HDLC, PPP, MLPPP, or cRTP
Network
protocol
IP
Technical Specifications
Table 6-662 lists the technical specifications of the 4-port clear channel E3/channelized
T3-SMB FPIC.
Table 6-662 Technical specifications of the 4-port clear channel E3/channelized T3-SMB FPIC
Item
Specifications
Silkscreen of the
board name
4xE3/cT3-SMB
