Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
7 Cables
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
623

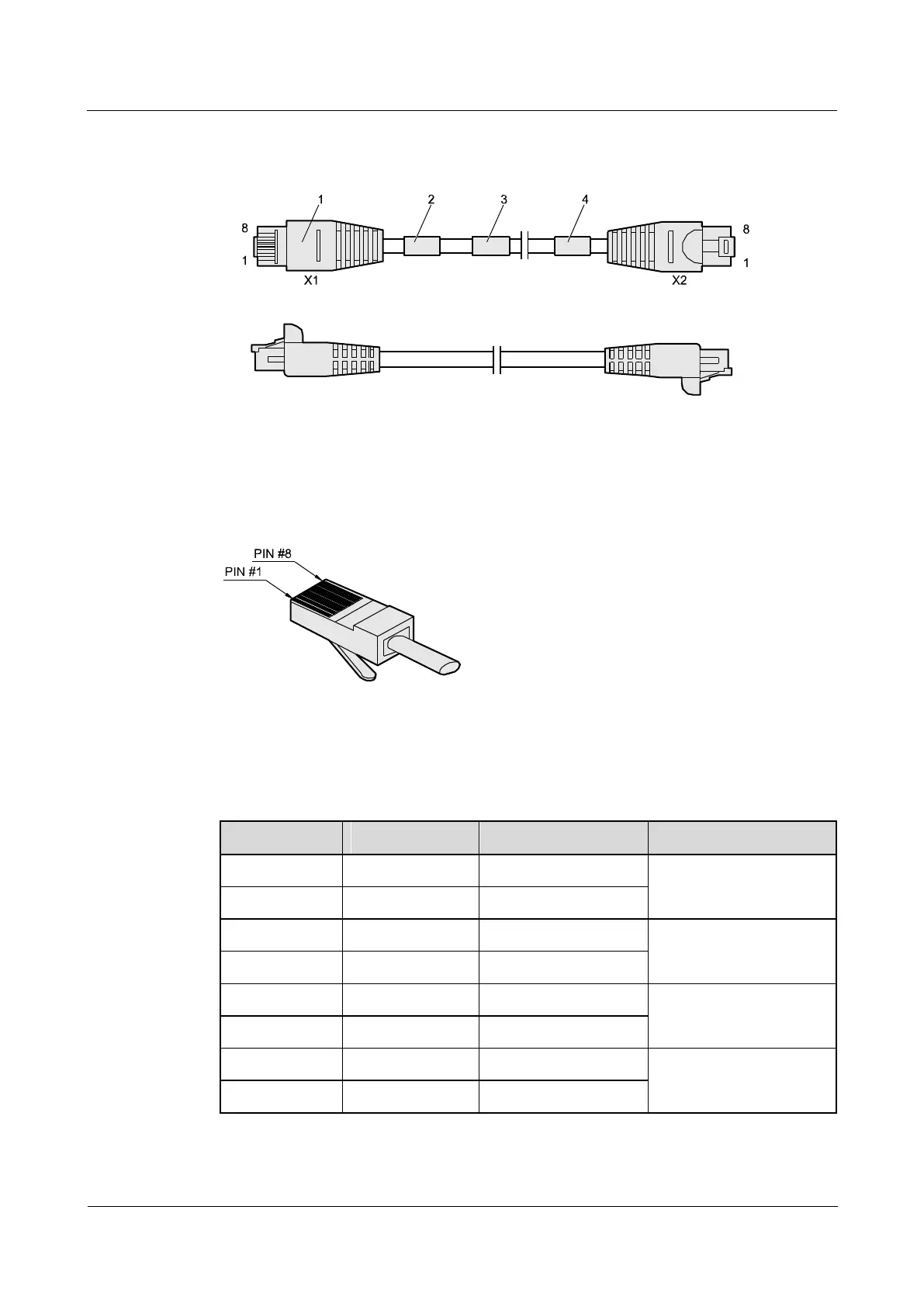

Figure 7-7 Network cable
1. Connector - RJ45
2. Label 1
3. Main label
4. Label 2
Figure 7-8 RJ45 connector
Table 7-28 and Table 7-29 show the pin assignments of the straight-through cable and the
crossover cable respectively.
Table 7-28 Pin assignments of the straight-through cable
Connector X1
Connector X2
Color
Relationship
X1.2
X2.2
Orange
Twisted
X1.1
X2.1
White/orange
X1.6
X2.6
Green
Twisted
X1.3
X2.3
White/green
X1.4
X2.4
Blue
Twisted
X1.5
X2.5
White/blue
X1.8
X2.8
Brown
Twisted
X1.7
X2.7
White/brown
