Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
3 NE40E-X8 Chassis Overview
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
61

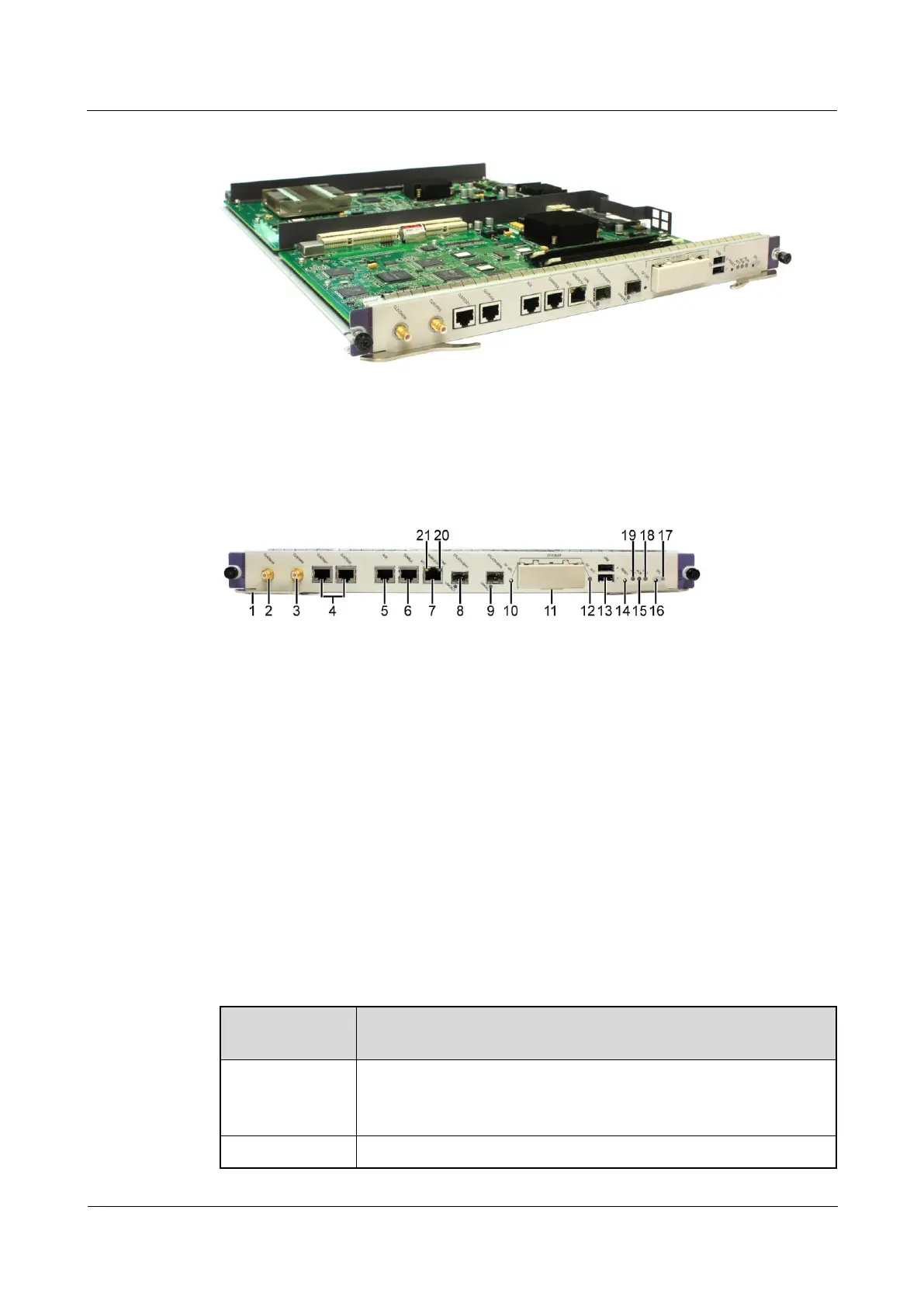

Figure 3-21 Appearance of the SRU
Panel
Figure 3-22 shows the appearance of the panel.
Figure 3-22 Appearance of the panel
1. Ejector lever
2. CLK/Serial
3. CLK/1PPS
4. CLK/TOD
5. AUX
6. Console
7. MGMT-ETH
8. CTL-ETH-SFP
9. LINK/ACT
10. CF OFL
button
11. CF card
12. CF indicator
13. USB
14. RESET
15. ALM indicator
16. OFL button
17. OFL indicator
18. RUN
indicator
19. ACT
active/standby
indicator
20. MGMT-ETH
LINK indicator
21. MGMT-ETH
ACT indicator
Table 3-11 describes the buttons and indicators on the SRU panel.
Table 3-11 Buttons and indicators on the panel of the SRU
Indicator/Butto
n
Description
OFL button
To remove a board, you must press and hold the button for six seconds
until the OFL indicator turns on.
This button takes effect only on the slave SRU.
OFL indicator
If the indicator is on, you can remove the board.
