Chapter 2 • System Control Center
1037073-0001 Revision E
21
System status page
The System Status page (Figure 17) displays important
information about the terminal’s operational status.
•
Signal Strength – Displays the receive signal strength. A
value of 30 or less indicates an appropriate signal is not being
received. Refer to Weather and signal strength on page 39 for
more information on factors that might affect signal strength.
•
Receive Status – Indicates whether the receive data path is
operational. Clicking the status message displays
corresponding help information.
•
Transmit Status – Indicates whether the transmit data path is
operational. Clicking the status message displays
corresponding help information.
•
Software Download Status – Indicates whether remote
terminal software and configuration is current.
•
Service Status – Indicates whether the remote terminal is
commissioned.
•
TCP Acceleration Status – Indicates whether Transmission
Control Protocol (TCP) Acceleration is operational. For
optimal remote terminal performance, TCP acceleration must
be operational.
•
Web Acceleration Status – Indicates whether Web
Acceleration is operational. If it is operational the server ID
will also be displayed. Web Acceleration is operational if you

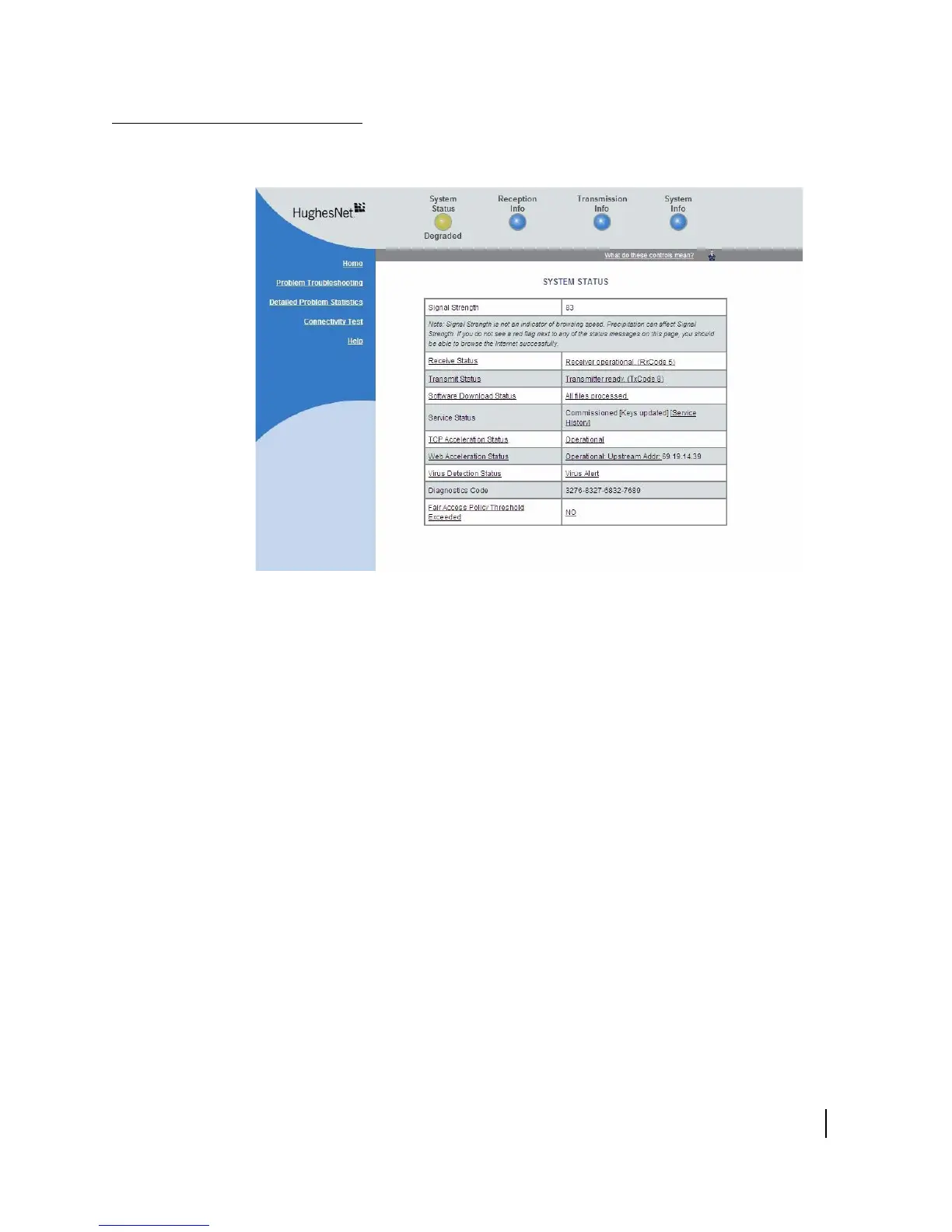

Figure 17: System Status page
