Appendix A • Typical Operating System Settings
84
1037073-0001 Revision E
3. Ensure that Client for Microsoft Networks and Internet
Protocol (TCP/IP)
are installed and checked as shown in
Figure 65. If NetBEUI is installed, uninstall it.
4. Highlight
Internet Protocol (TCP/IP). Be careful not to
uncheck the check box.
5. Click Properties. The
Internet Protocol Properties dialog
appears as shown in Figure 66.

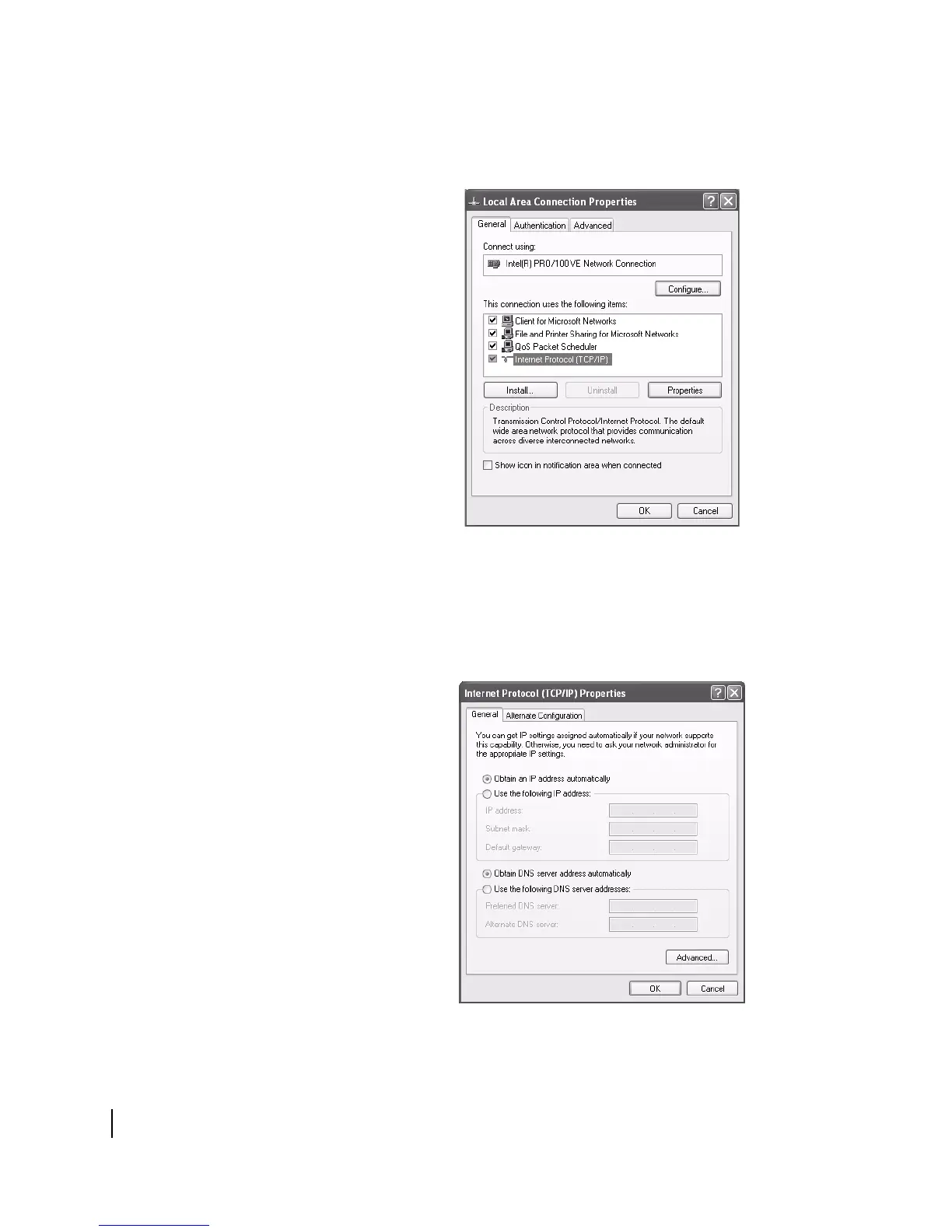

Figure 65: Local Area Connection Properties - Windows XP
Figure 66: Internet Protocol Properties - Windows XP
