Appendix A • Typical Oper
ating System Settings
74
1037073-000
1 Revision
E
Windows 2000
1.
Select
Start
→
Settings
→
Control P
anel
.
2.
Select the
Network and Dialup Connections
icon. See
Figure
54.
3.
Right-click the
Local Area Con
nection
that connects to the
terminal and select
Proper
ties
. See Figure
55.

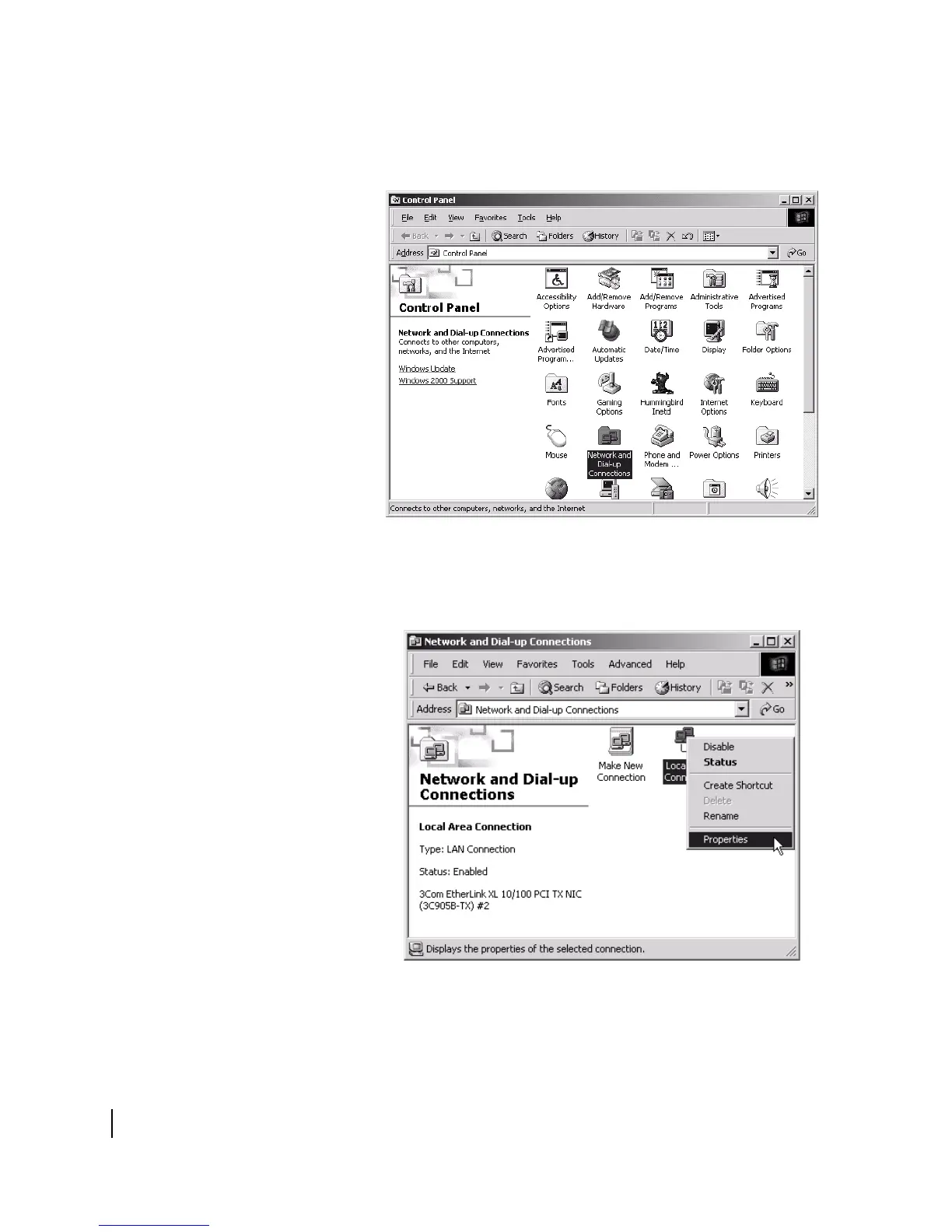

Figure 54:
Network and Dialup
Connections
Figure 55:
Local Area Connections
87
89
