Reception Info page
The Reception Info page (Figure 18) shows information about
data received by the HN7000S.
•
Receive Status – Reports the status of the receive data path.
Clicking the blue status message displays corresponding help
information.
•
Frames Received – Reports the number of data messages
received by the HN7000S over the satellite link.
•
Frames with Errors – Reports the percentage of received
frames found to be corrupted. Any number greater than zero
indicates a problem except when adverse weather conditions
are present. Frames may be corrupted in adverse weather
conditions or if there is a problem with the receive cable or
the antenna assembly.
•
Bad Key Frames – Indicates the percentage of received
frames that could not be decrypted successfully. All data
received over the satellite is encrypted. Any number greater
than zero indicates a problem except when adverse weather
conditions are present. Bad key frames may indicate that the
terminal is not commissioned.
•
Current Modcod– Indicates the modulation and forward error
correction coding method.

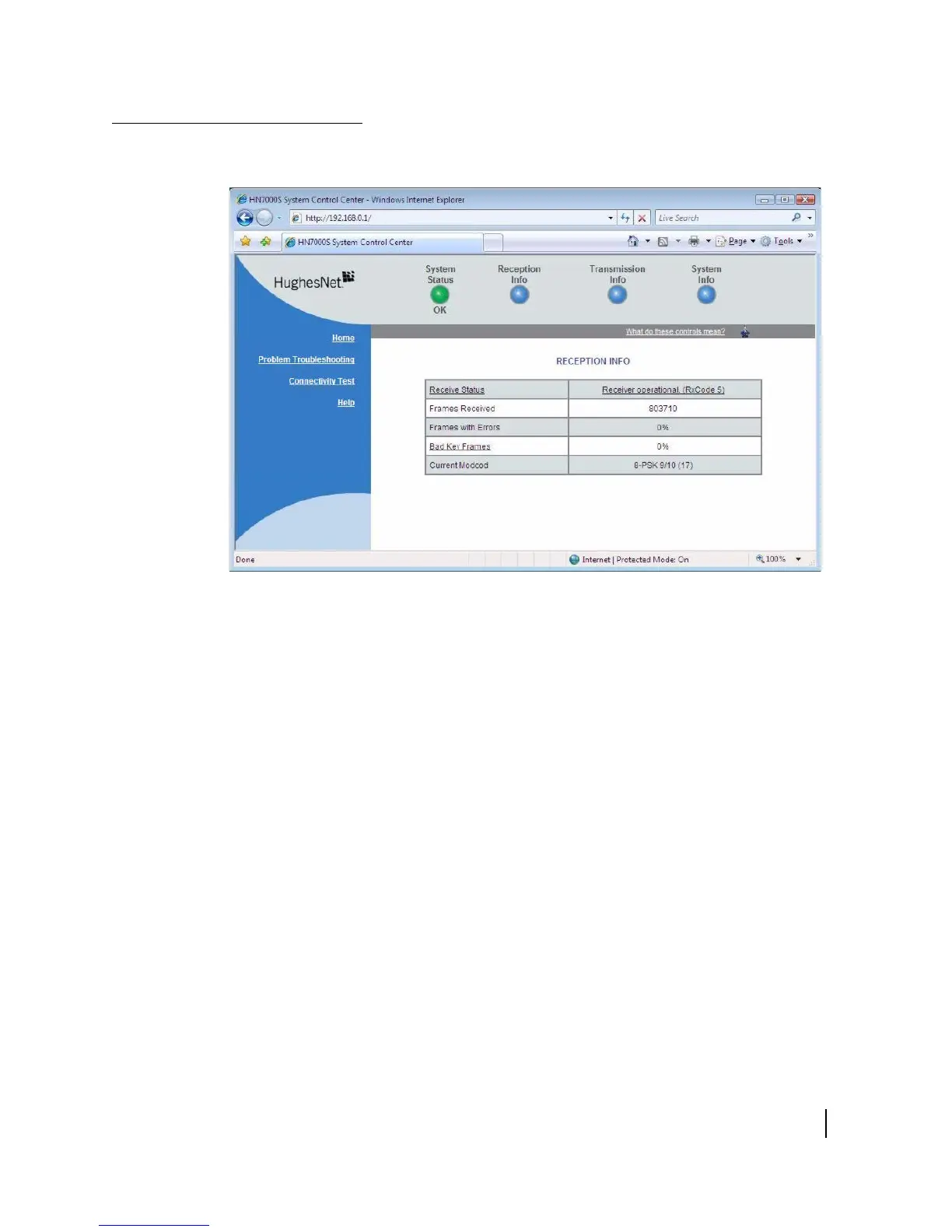

Figure 18: Reception Information page
