Hughes HN7000S User Manual

Appendix A • Typical Operating System Settings
1037073-0001 Revision E
77
Windows 98SE or Me
1. Select Start→ Settings→ Control Panel.
2. Select
Network. The Network configuration dialog box opens
to the
Configuration tab. See Figure 58.
3. Select the TCP/IP protocol bound to the NIC connected to the
remote terminal and select Properties. In Figure 58 it is
TCP/IP -> Intel (R) Pro/100VE Network
Connection
. Your system may display different NIC
information. The
TCP/IP Properties box opens to the IP
Address
tab. See Figure 59.

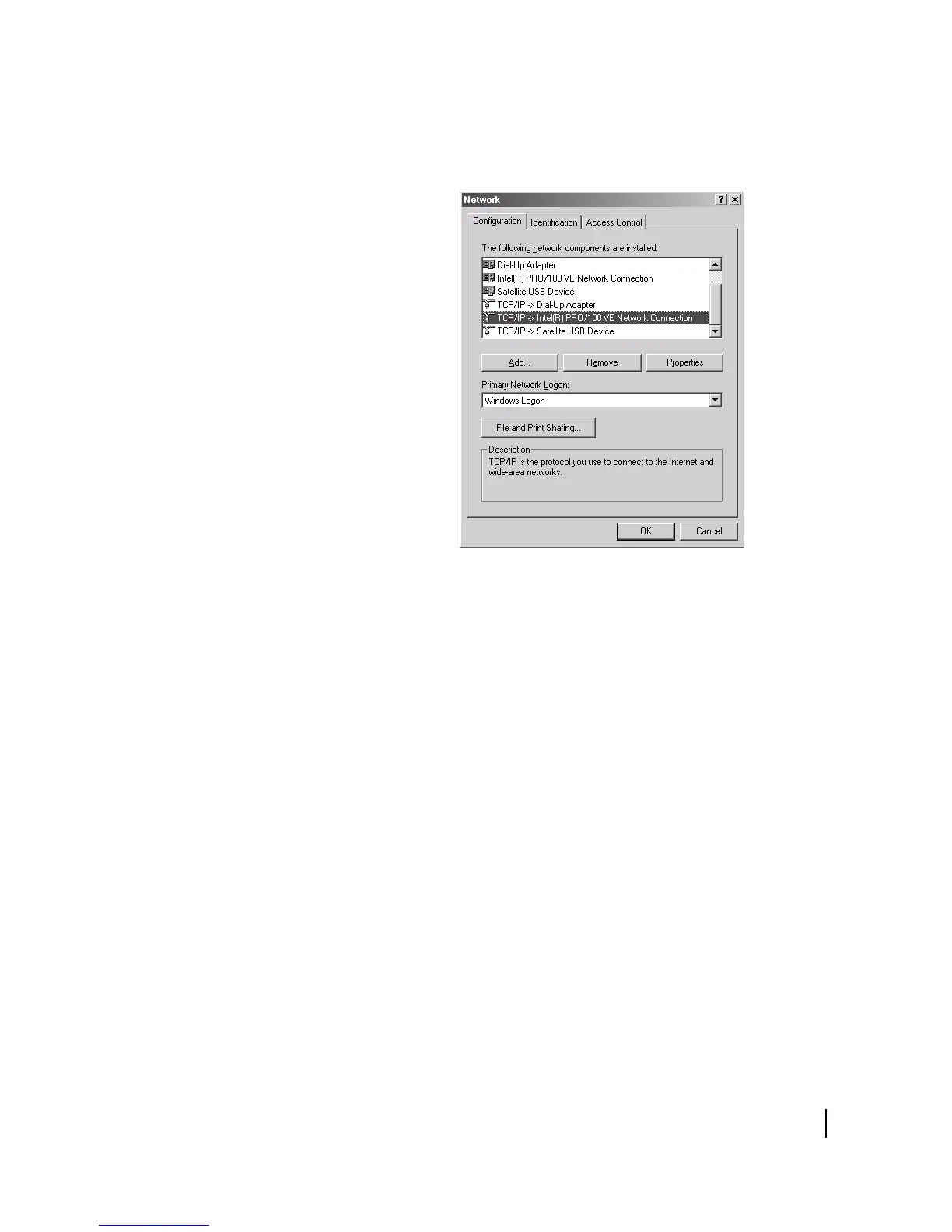

Figure 58: Network dialog with Configuration tab

Hughes HN7000S Specifications

General

Brand	Hughes
Model	HN7000S
Category	Touch terminals
Language	English
