Appendix A • Typical Operating System Settings
1037073-0001 Revision E
85
6. Ensure that both the Obtain an IP address automatically and
Obtain DNS server address automatically options are
selected. If not, select them.
7. Click OK to close the dialog boxes and finish the
configuration.
8. Restart the computer even if Windows does not require you to
do so. This ensures that the network settings are
automatically reset.
Windows 2000
1. From the Windows desktop, select Start → Settings →
Control Panel and double-click Network and Dial-up
Connections
.
A list of network connections appears as shown in Figure 67.
The
Local Area Connection icon must appear on the page. If
it does not, the network is not installed correctly.
2. Right-click the
Local Area Connection icon that represents
the terminal network connection and select
Properties from

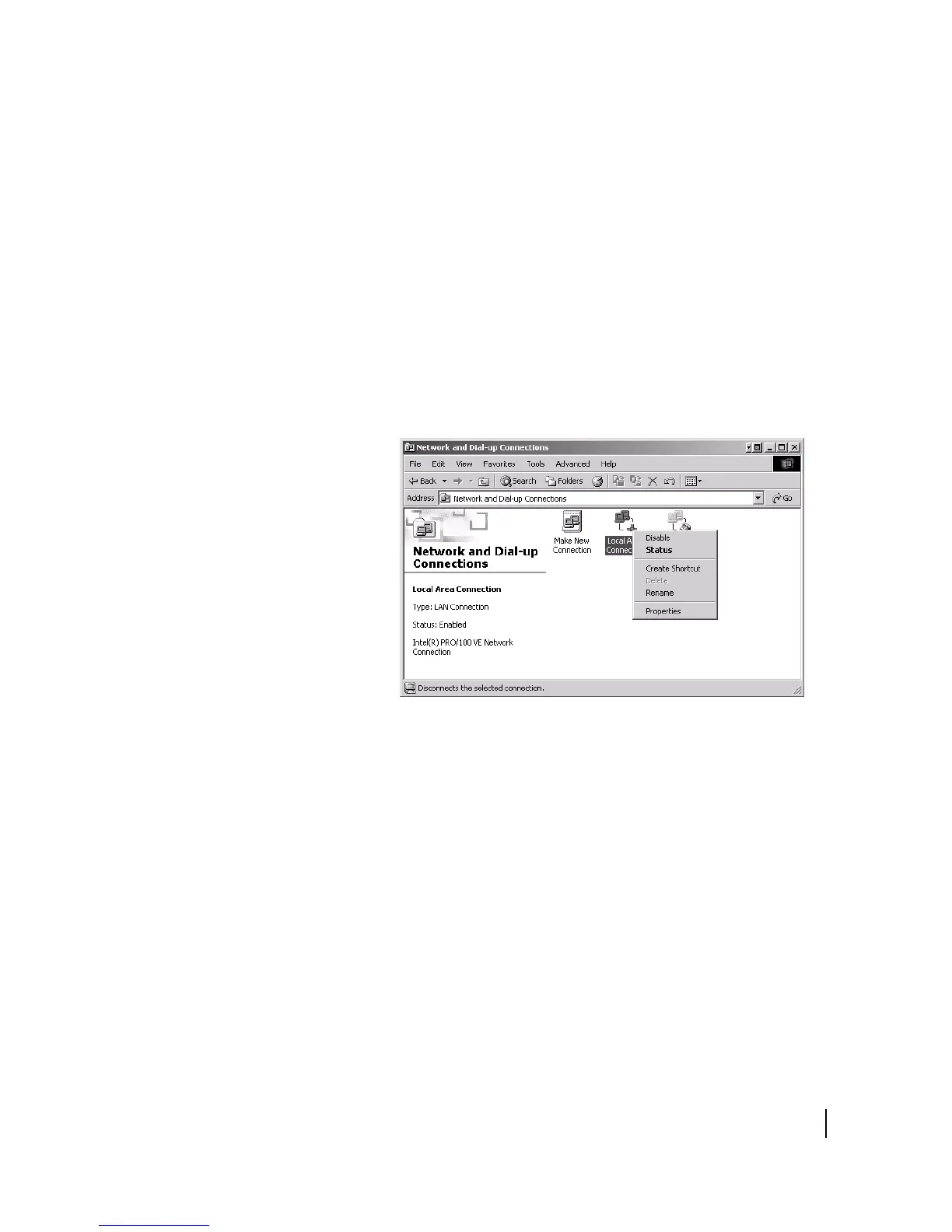

Figure 67: Network and Dial-up Connections - Windows 2000
