Chapter 2 • System Control Center
1037073-0001 Revision E
31
Defining port forwarding
rules
Follow these steps to use the Port Forwarding Configuration page
to define port forwarding rules:
1. Open a Web browser on a computer connected to the
HN7700S.
You may also use a computer on the LAN if the HN7700S is
connected to an Ethernet device, such as a hub or router.
2. Type
www.systemcontrolcenter.com in the browser’s
address bar and press E
NTER.
3. Click Port Forwarding Configuration
on the System
Control Center home page or in the left frame of the page you
are currently on.
4. Click Add Rule on the Port Forwarding Configuration page.
See Figure 25.
5. Enter the appropriate values in the following fields:
Rule ID,
Server IP Address, Server port, and Global port. See
Figure 26.
6. Click the
Protocol Type drop-down menu and select the
appropriate protocol.
7. Click Save Rule.
8. Repeat steps 1 through 7 to define additional rules.
Help page
The System Control Center Help page (Figure 27) contains
information to help you get started, a utility to help you optimize
browsing performance, contact information if you need
assistance, and other helpful information. Review the Help page
information to become familiar with the remote terminal.
To display the Help page:
• Click View Help Topics
on the System Control Center home
page

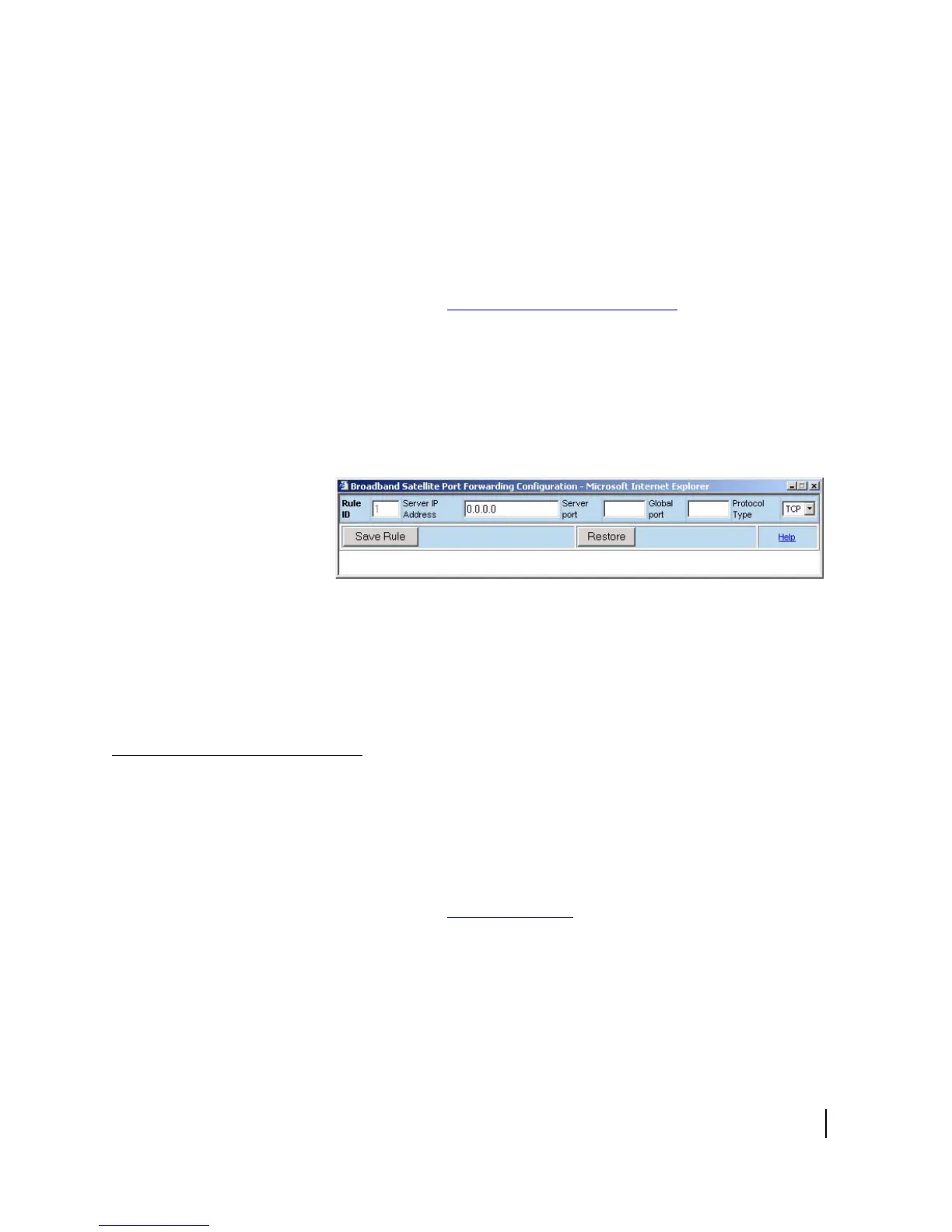

Figure 26: Entering port forwarding rules
