Ethernet port LEDs
The HN7000S remote terminal has one Ethernet port. The
HN7700S has two Ethernet ports. The Ethernet port supports a
wide range of devices, including:
• PC equipped with a network interface card (NIC)
• Hub
• Router
• Switch
Green and orange LEDs on each port indicate link status and
Ethernet mode, as explained in Figure 33.
HN7700S Ethernet port
configurations
The Ethernet ports support the following configurations:
• Dual port, single subnet
Only one Ethernet port is configured with an IP address at the
NOC, which means the terminal supports one subnet.
• Dual port, independent subnet
Each Ethernet port is configured with a separate IP address at
the NOC, which means the terminal supports independent
subnets.

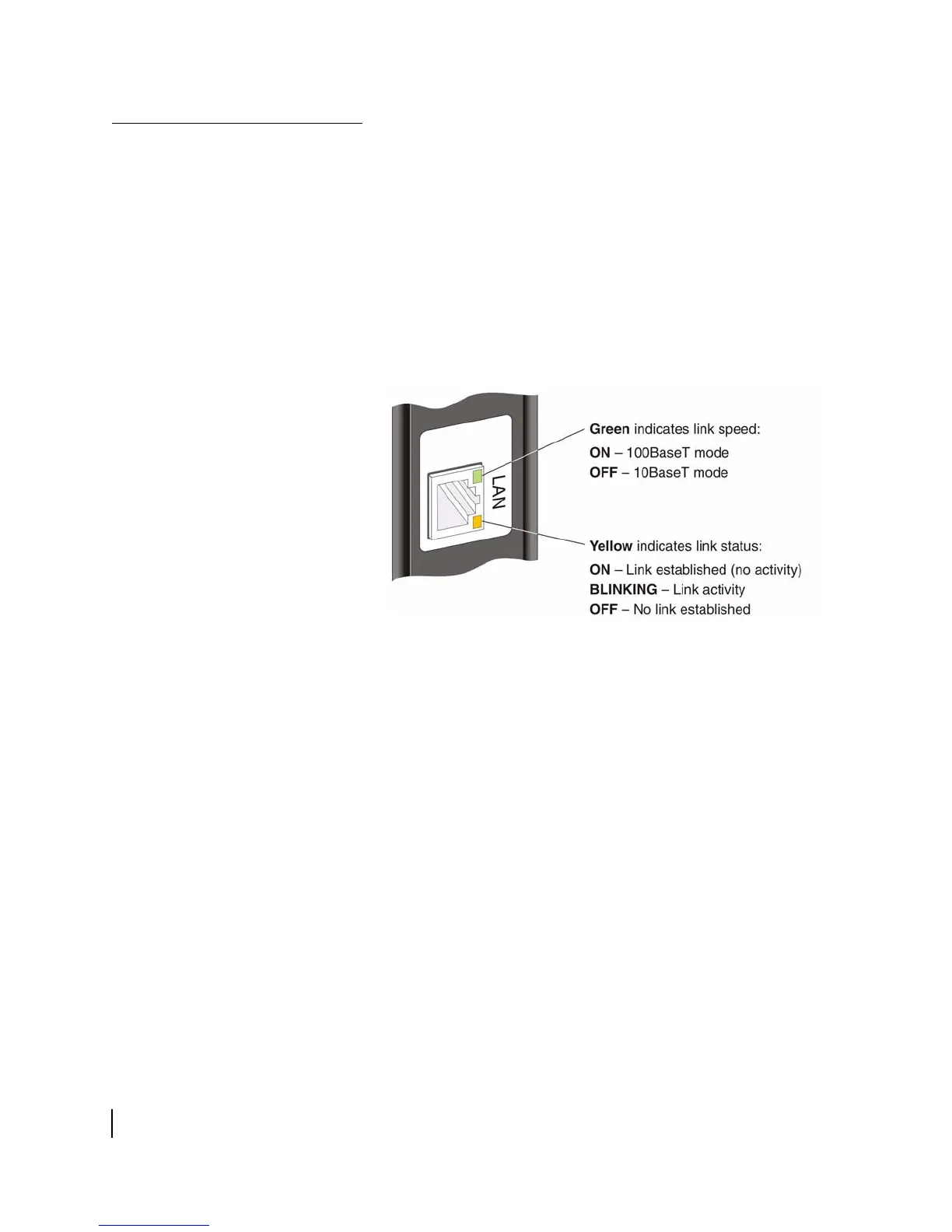

Figure 33: Ethernet port LEDs
