Chapter 4 • Remote terminal LEDs
1037073-0001 Revision E
37
Chapter 4
Remote terminal LEDs
The LEDs provide information about the remote terminal’s
operating status. If the LEDs are not functioning as described in
this chapter, refer to Using the terminal LEDs to troubleshoot on
page 56.
This chapter describes the following LEDs:
• Front panel LEDs on page 37
• Ethernet port LEDs on page 40
Front panel LEDs
The remote terminal has five front panel LED indicators, as
shown in Figure 32. This section explains what it means when the
LEDs are on, off, blinking, or flashing. (On means the LED is
continuously lit. Blinking means the LED is usually on, but
intermittently turns off briefly. Flashing means the LED
alternates between on and off for periods of ½ sec to 1 sec.)
‘

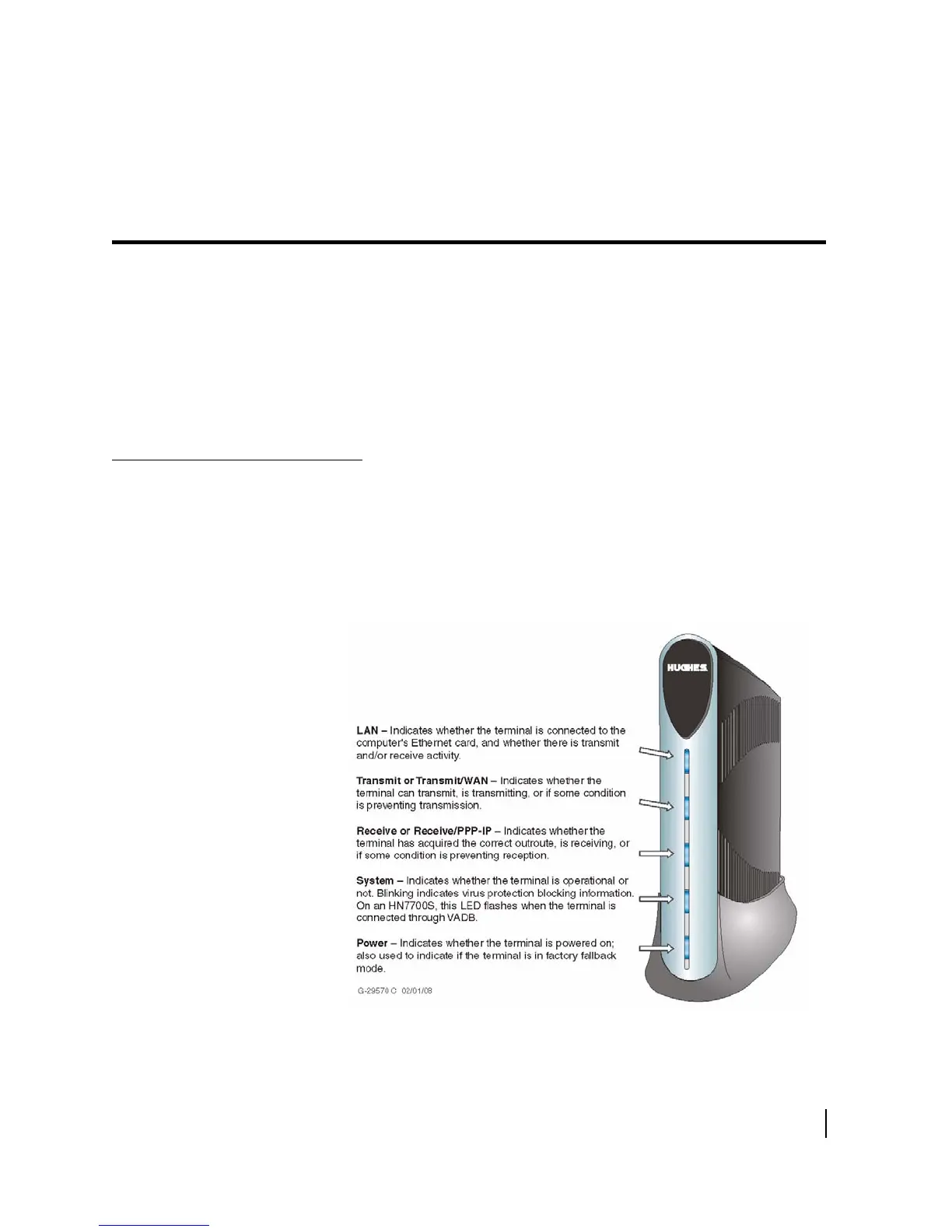

Figure 32: Front panel LEDs
