Chapter 5 • Troubleshooting
1037073-0001 Revision E
45
terminal is commissioned on page 45. Also, try the
troubleshooting procedures more than once before contacting
your service provider.
If you cannot access the System Control Center by
double-clicking the System Control Center shortcut or typing
www.systemcontrolcenter.com in the browser’s address
bar, try typing
192.168.0.1 instead, then press ENTER. If that
doesn’t work, see Cannot access the System Control Center on
page 55.
Confirming that the terminal
is commissioned
Follow these steps to confirm the terminal is commissioned:
1. At the System Control Center, click the System Info link.
The System Information page appears. See Figure 38.
2. Observe the value in the
Site ID field.
If the numerical site ID appears, the terminal is
commissioned. Proceed to Confirming receive signal on
page 46.

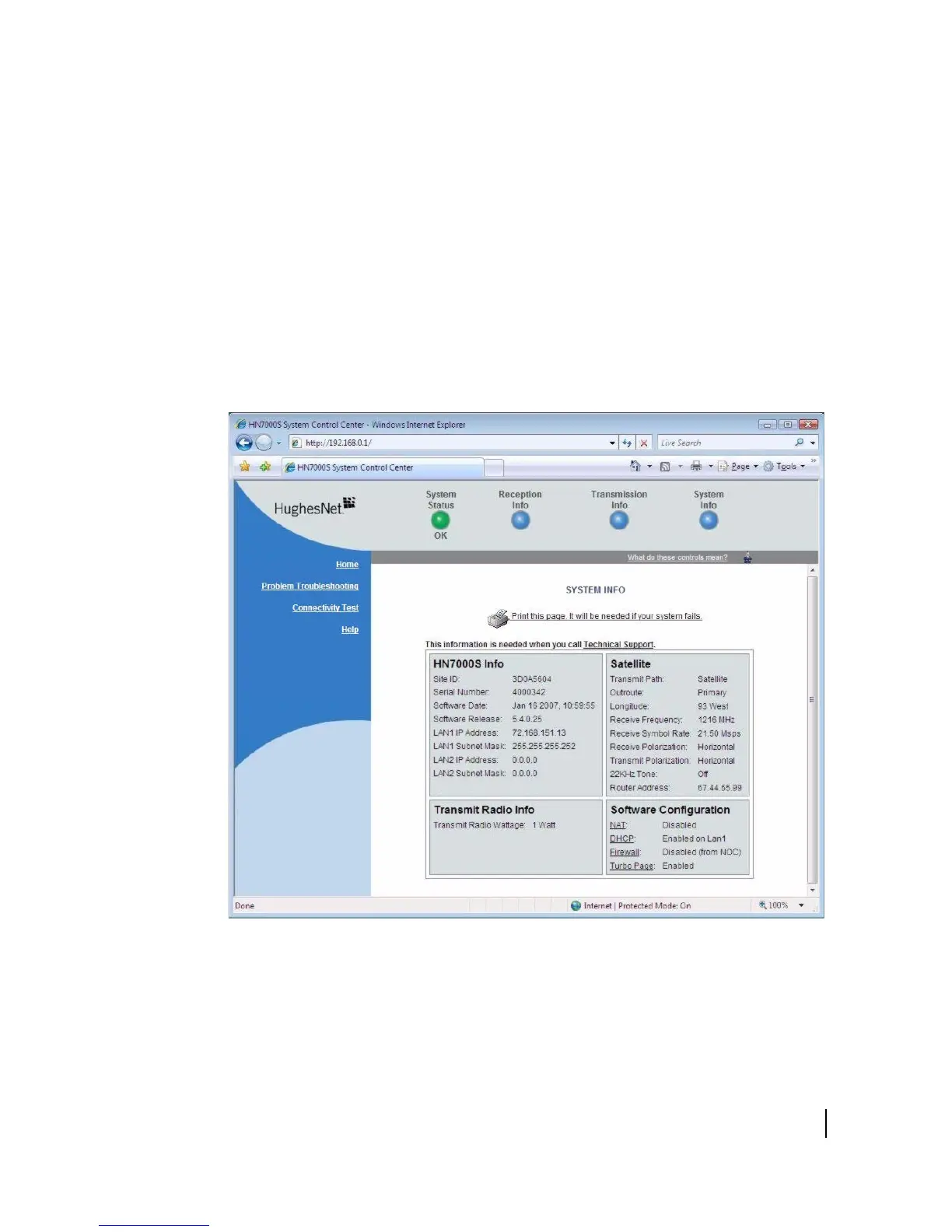

Figure 38: System Information page
