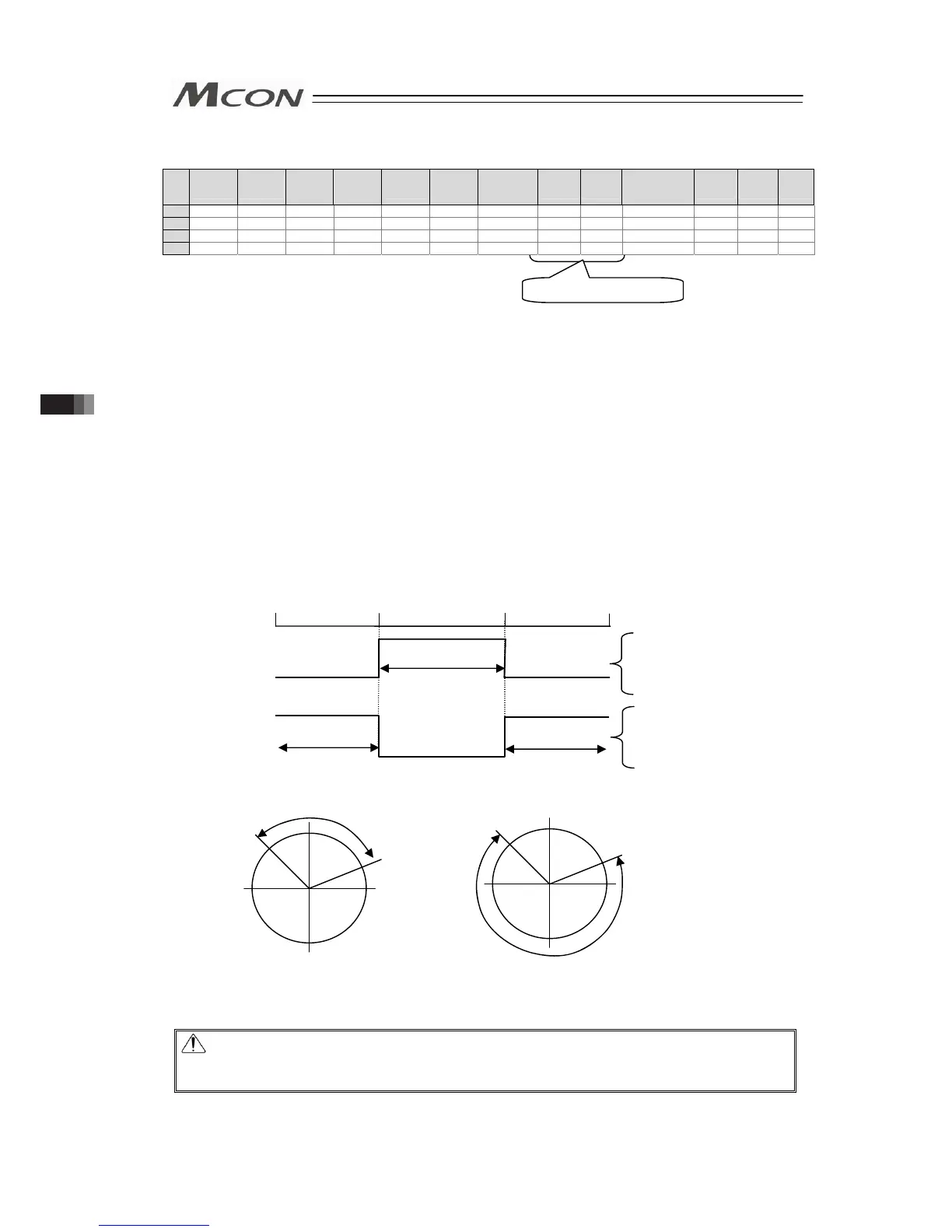

(2) Position zone signal (PZONE)
No.
Position
[mm]
Velocity
[mm/s]
Accele-
ration
[G]
Decele-
ration
[G]
Pressing
[%]
Thresh-
old
[%]
Positioning
width
[mm]
Zone+
[mm]
Zone-
[mm]
Acceleration/
Deceleration
mode
Incre-
mental
Gain
set
Stop
mode
0
1 0.00 250.00 0.20 0.20 0 0 0.10 50.00 30.00 0 0 0 0
2 100.00 250.00 0.20 0.20 0 0 0.10 70.00 60.00 0 0 0 0
3 50.00 250.00 0.20 0.20 50 0 20.00 60.00 65.00 0 0 0 0
Set the zone range to the position table.
This set value becomes valid while the position number set in the zone range is executed. It
is kept effective also during the emergency stop unless the actuator is operated or the
memory of the origin is lost due to alarm.
(3) Output Ranges of Set Values and Signals
The zone output range differs depending on the difference of the values set in the zone
positive side and negative side.
1) Value set for positive side > value set for negative side:
Output signal turn ON in the range from the value on negative side to that on positive
side, and turns OFF out of the range
2) Value set for positive side < value set for negative side:
Output signal turn OFF in the range from the value on positive side to that on negative
side, and turns ON out of the range
[Example of Line Axis]
[Example of rotary actuator of multi-rotation specification in index mode]
Caution: Since this signal becomes effective after the coordinate system is established
after the home return is completed, it would not be output just with the power
turned ON.
Current
Position
Zone Signal Output
Zone Signal Output
0mm
30mm
70mm
100mm
ON
ON
ON
Set Value
Zone setting + : 70mm
Zone setting - : 30mm
Set Value
Zone setting + : 30mm
Zone setting - : 70mm
0°
315°
70°
0°
Set Value
Zone setting + : 70°
Zone setting - : 315°
315°
70°
Set Value
Zone setting + : 315°
Zone setting - : 70°
Setting of zone range
