252

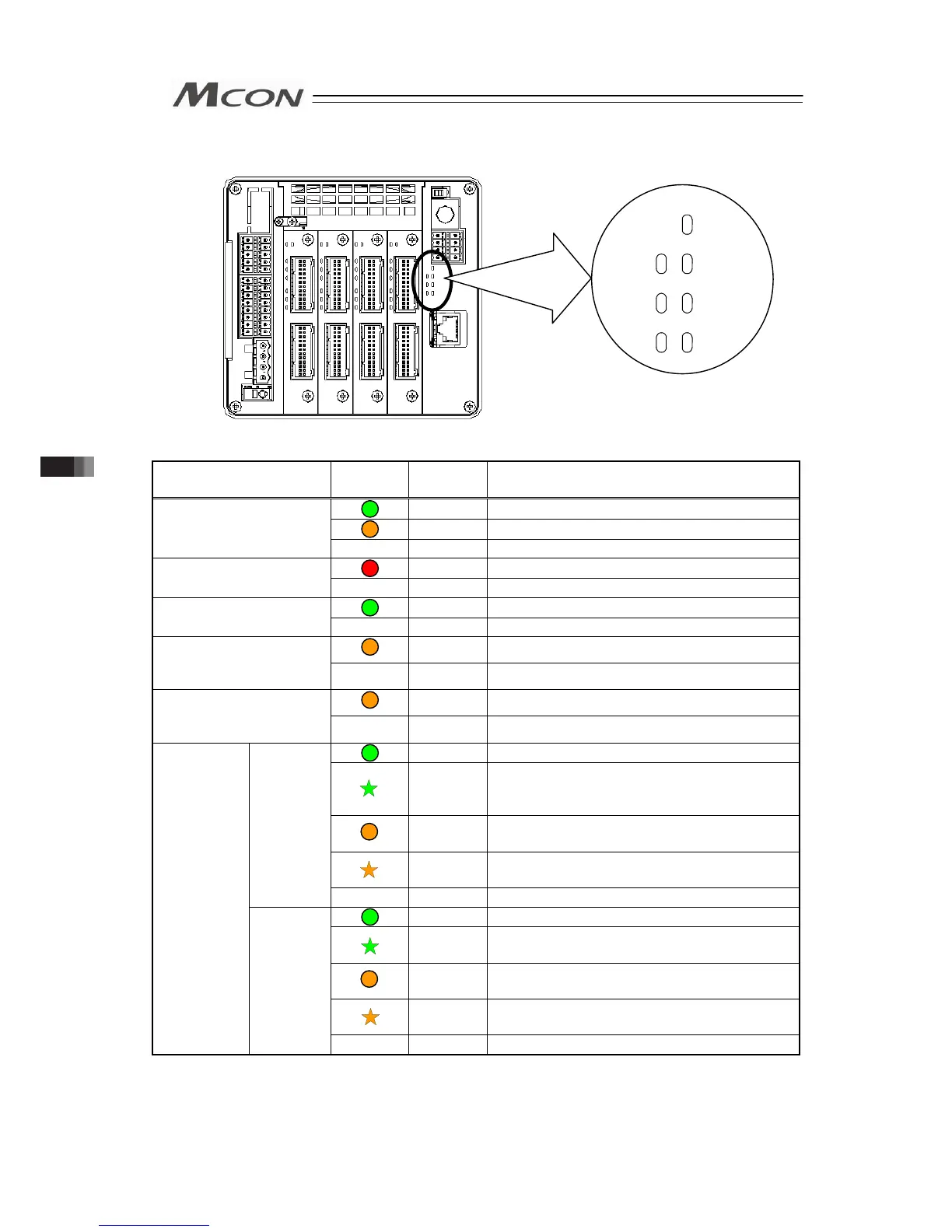

3.10.5 EtherNet/IP
{: Illuminating, ×: OFF, ☆: Flashing
Symbol
Lamp
Condition
Color Description
Green Ready
Orange Alarm generated
SYS
(System status)
× – Power is OFF or in initializing
Red Emergency stop
EMG
(Emergency stop status)
× – Normal
Green AUTO Mode
MODE
(AUTO/MANU status)
× – MANU Mode
Orange Controller internal communication error
T ERR
(Controller internal
communication status)
× – Normal
Orange Fieldbus communication error
C ERR
(Fieldbus communication
status)
× – Normal
Green Online (Communication in normal condition)
Green
Online (Even though the network is established
normally, the master does not identify as
MCON)
Orange
Communication error (such as IP address
duplication)
Orange
Communication error (Communication timeout
has been detected)
NS
× – Power is OFF or IP address not established
Green Communication in normal condition
Green
Construction information setting is incomplete,
or scanner (master) is in idling condition
Orange
Malfunction of hardware (board replacement
required)
Orange
Initializing error, light error such as setting
violation, recoverable with rebooting
Fieldbus
status
MS
× – Power is OFF
MODE EMG
SYS
MS
C ERR
NS
T ERR
3.10 Fieldbus Status LEDs
