1.6 Option
1.6.1 Absolute Battery Box
For Simple Absolute type, an absolute battery box capable for the batteries for 8 axes is used.
The battery is to be attached only to the axes for Simple Absolute Type.
The connection to MCON controller is to be made with the dedicated cable
(CB-MSEP-AB005).
(Note) Cable length: 0.5m

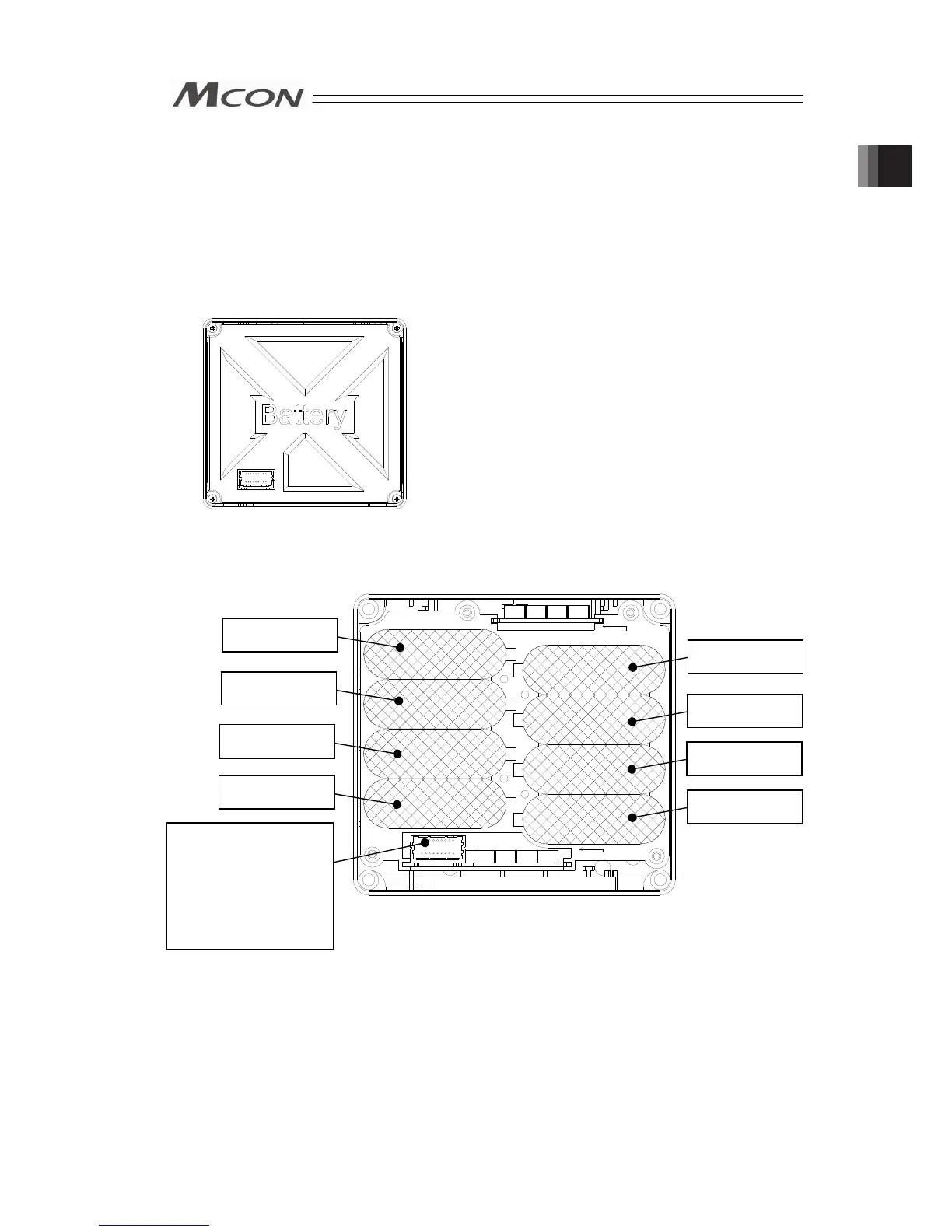

Front View when Cover ON
AX3
AX7
AX1
AX4AX5AX6AX7
AX3AX2AX1 AX0
AX4
AX6
AX0
AX2
AX5
5th Axis Battery
(Axis No.4)
7th Axis Battery
(Axis No.6)
1st Axis Battery
(Axis No.0)
3rd Axis Battery
(Axis No.2)
6th Axis Battery
(Axis No.5)
8th Axis Battery
(Axis No.7)
2nd Axis Battery
(Axis No.1)
4th Axis Battery
(Axis No.3)
Front View when Cover OFF
Connector to connect with
MCON
(Note) Do not apply force
not being
perpendicular to
the connector when
insert or detach the
cable.
