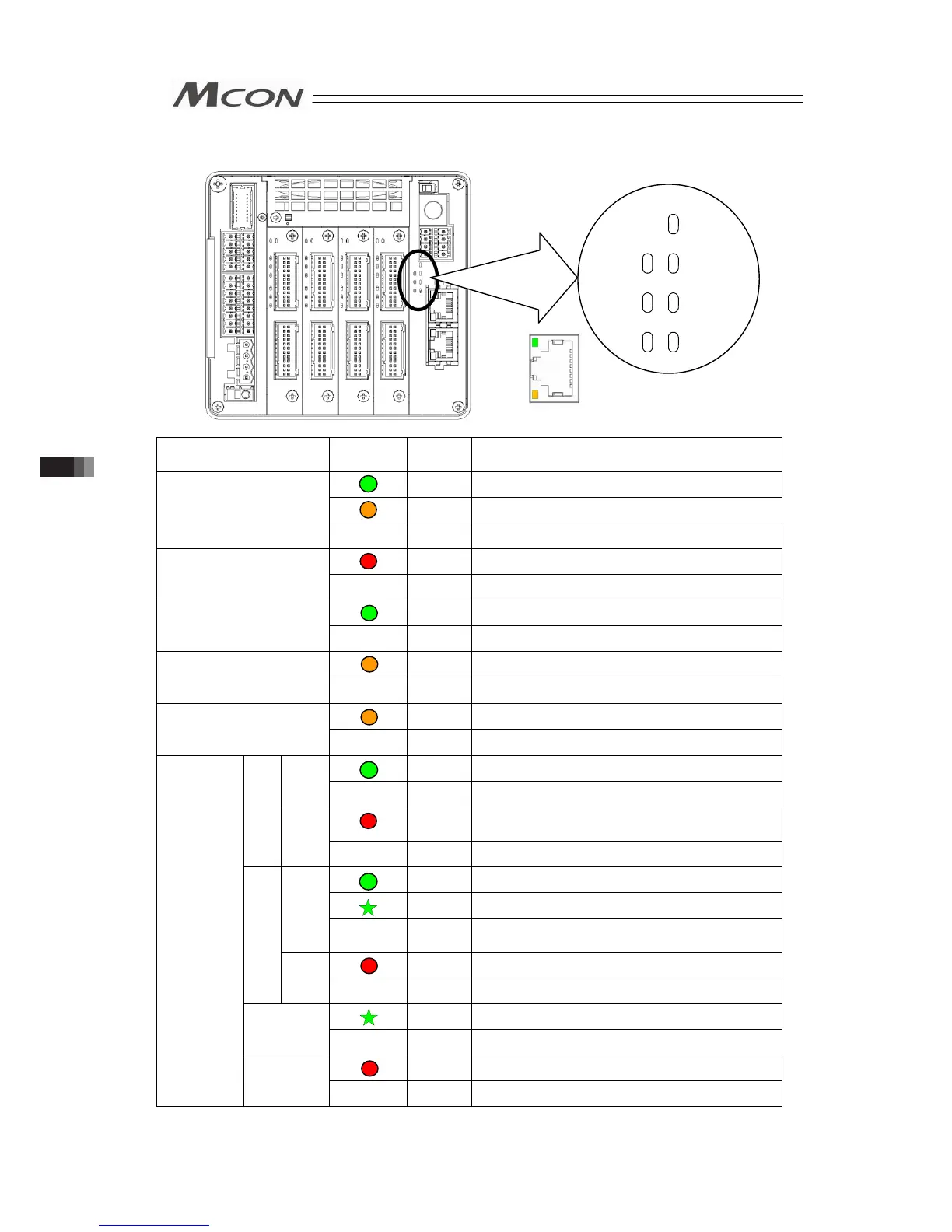

3.10.8 CC-Link IE Field
{: Illuminating, ×: OFF, ☆: Flashing
Symbol
Lamp
Condition
Color Description
Green Ready
Orange Alarm generated
SYS
(System status)
× – Power is OFF or in initializing
Red Emergency stop
EMG
(Emergency stop
status)
× – Normal
Green AUTO Mode
MODE
(AUTO/MANU status)
× – MANU Mode
Orange Controller internal communication error
T ERR
(Controller internal
communication status)
× – Normal
Orange Fieldbus communication error
C ERR
(Fieldbus
communication status)
× – Normal
Green Normal operation
RUN
× – Hardware error generated, power not ON
Red
Error generated
(node error/station number setting error)
MS
ERR
× – Normal operation, power not ON
Green Cyclic transmission ON
Green Cyclic transmission OFF
D
Link
× –
Cyclic transmission not implemented,
fragmented or power not ON
Red Receive data error (lights together with L.ER)
NS
L
ERR
× – Receive data normal, power not ON
Green Linking up
LINK
× – Linking down
Red Receive data error
Fieldbus
status
L.ER
× – Receive data normal, power not ON
MODE
EMG
SYS
C ERR
NS
T ERR
MS
LINK
L.ER
3.10 Fieldbus Status LEDs
