10.3 Maintenance
10.3.1 Consumed Parts
These parts below have production life. Shown below is the reference.
Item Life Specification
Electrolytic capacitor 5 years
0 to 40°C
Backup capacitor for
calendar feature
5 years
When repeated to conduct for 12H in 40°C
environment and cut for 12H in 20°C environment
Forced air-cooling FAN Approx. 3 years
When repeated to conduct for 24H in 40°C
10.3.2 Maintenance Information
The times of actuator run and distance of operation can be summed up and recorded
(Note 1)
in
the controller.
Also, an alarm is output
(Note 3)
and signal can by output
(Note 4)
externally when the times and
distance
(Note 2)
exceed the threshold. By this signal, notice can be available for the timing of
grease supply or regular inspection.

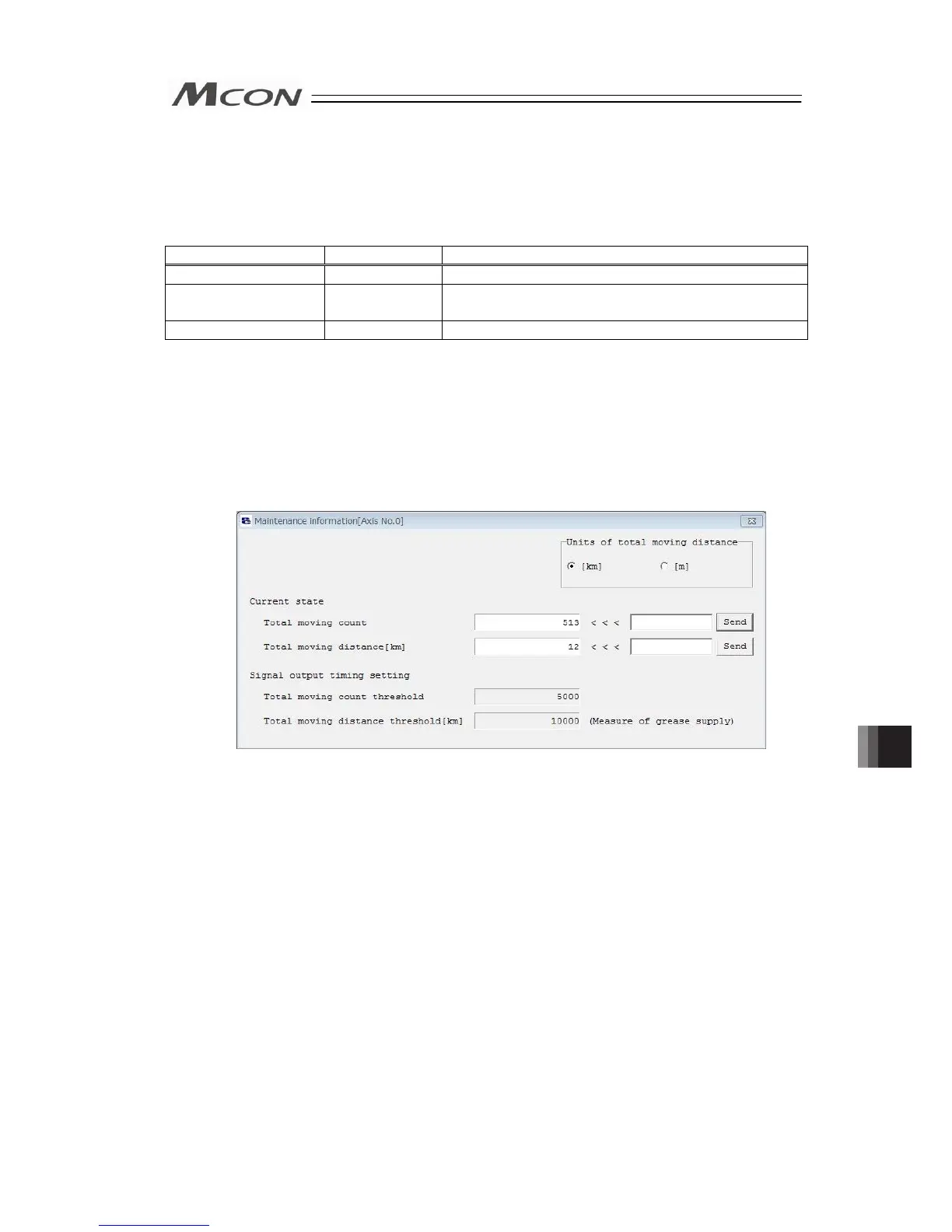

Note 1 The contents recorded in the teaching tool and Modbus communication can be checked.
To check in the teaching tool [Refer in each instruction manual for details]
x
TB-01/TB-02/TB-03 [Monitor] → [Maintenance]
x
TB-02/TB-03 [Information] → [Maintenance Information]
x
RC PC software [Monitor (M)] → [Maintenance Information (I)] → Select axis
Note 2 Set in Parameter No. 147 “Total Times of Movement Target” and No. 148 “Total Drive
Distance Target”.
Note 3 The message level alarms “04E Times of Movement Target Exceeded” and “04F Drive
Distance Target Exceeded” are output. [Refer to 9.4.3 Alarm Codes on Driver Board (Each
Axis)]
Note 4 A light malfunction alarm (ALML) is output. [Refer to 3.7.1 [21]]
