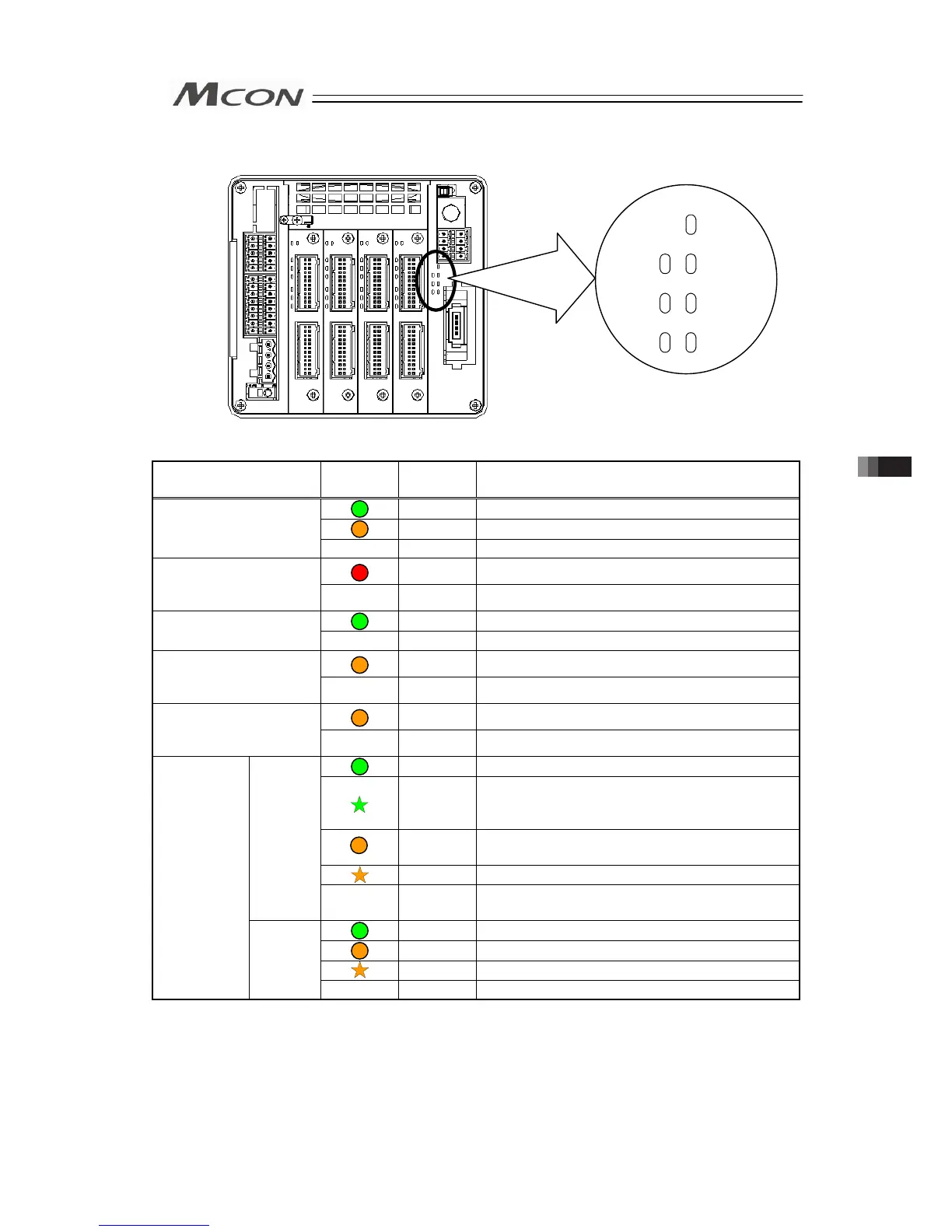

3.10.4 CompoNet
{: Illuminating, ×: OFF, ☆: Flashing
Symbol
Lamp
Condition
Color Description
Green Ready
Orange Alarm generated
SYS
(System status)
× – Power is OFF or in initializing
Red Emergency stop
EMG
(Emergency stop
status)
× – Normal
Green AUTO Mode
MODE
(AUTO/MANU status)
× – MANU Mode
Orange Controller internal communication error
T ERR
(Controller internal
communication status)
× – Normal
Orange Fieldbus communication error
C ERR
(Fieldbus
communication status)
× – Normal
Green Online (Normal)
Green
Online (Even though the network is established
normally, awaiting for being identified as MCON
by master)
Orange
Node address duplication error, slave address
wrongly established
Orange No response returned from another slave device
NS
× –
Power is OFF, under reset operation, under
initializing process
Green Communication in normal condition
Orange Malfunction of hardware
Orange EEPROM reading failed in initializing process
Fieldbus
status
MS
× – Power is not ON, under reset operation
MODE EMG
SYS
MS
C ERR
NS
T ERR
3.10 Fieldbus Status LEDs
