3.4.2 Example for each Fieldbus Address Map
Shown below is an example for the address map by the combination of operation modes for
each Fieldbus.
Refer to it for the address assignment.
The examples for the address map constructions shown below are provided for each
Fieldbus, however is described together
(Note 1)
for the networks of the same address
assignment.
Note 1 Order of address maps for each Fieldbus
1) DeviceNet and CompoNet
(Note 2)
2) CC-Link and CC-Link IE Field
3) PROFIBUS-DP, EtherNet/IP, EtherCAT
4) PROFNET-IO
Note 2 For CompoNet, only Positioner 3 Mode and Remote are available for selection.

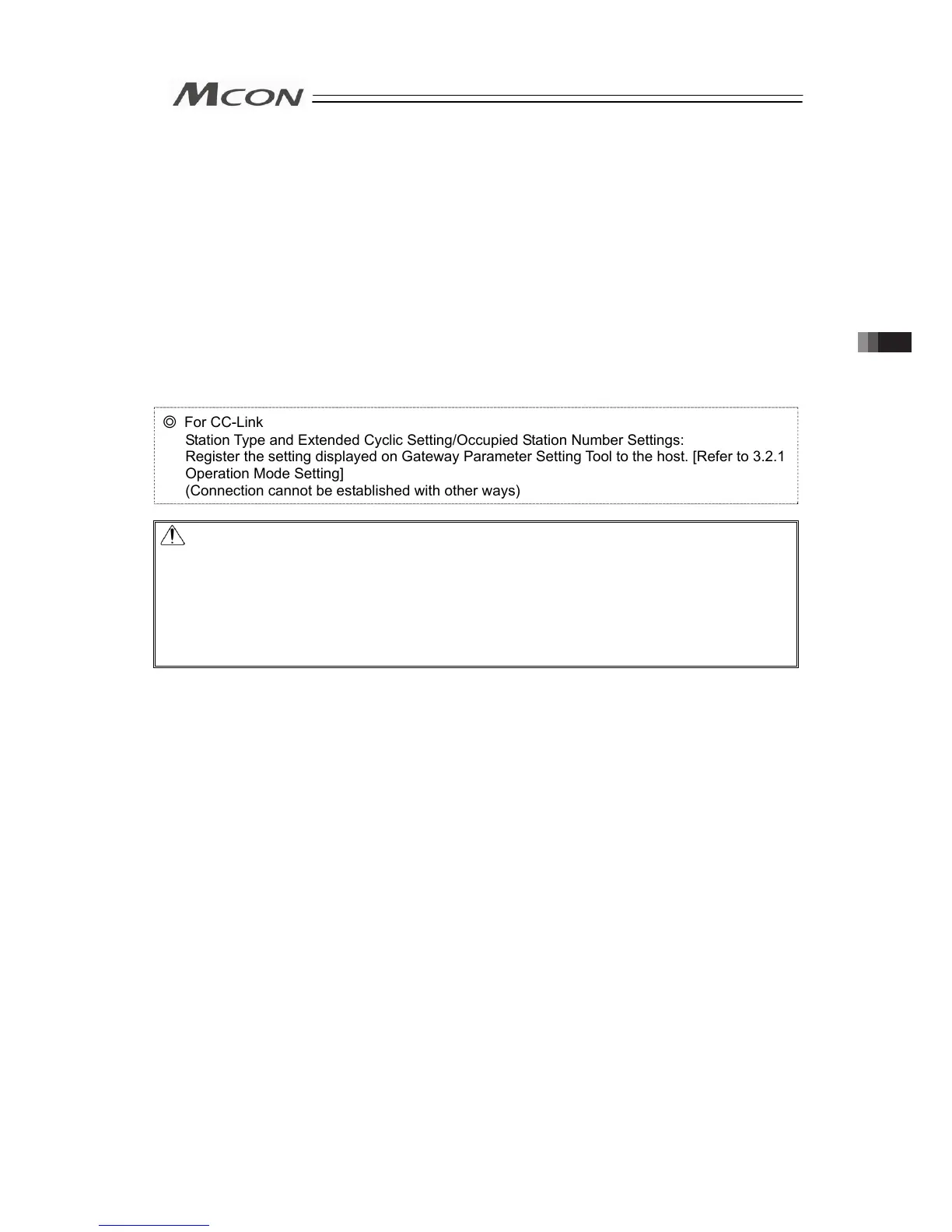

◎ For CC-Link
Station Type and Extended Cyclic Setting/Occupied Station Number Settings:
Register the setting displayed on Gateway Parameter Setting Tool to the host. [Refer to 3.2.1
Operation Mode Setting]
(Connection cannot be established with other ways)
Caution:
• If Remote I/O Mode is selected, all the axes connected to MCON are involved in Remote I/O
Mode.
• This controller is able to control 2 axes with one driver board (1 slot), however, different
operation mode cannot be selected in the same driver board.
Example Set the 1st axis in Slot 1 to Positioner 1 Mode and 2nd to Simple Direct Mode
• Even if only one axis is used in the two axes on the same slot, it requires the address space
for 2 axes.
