250

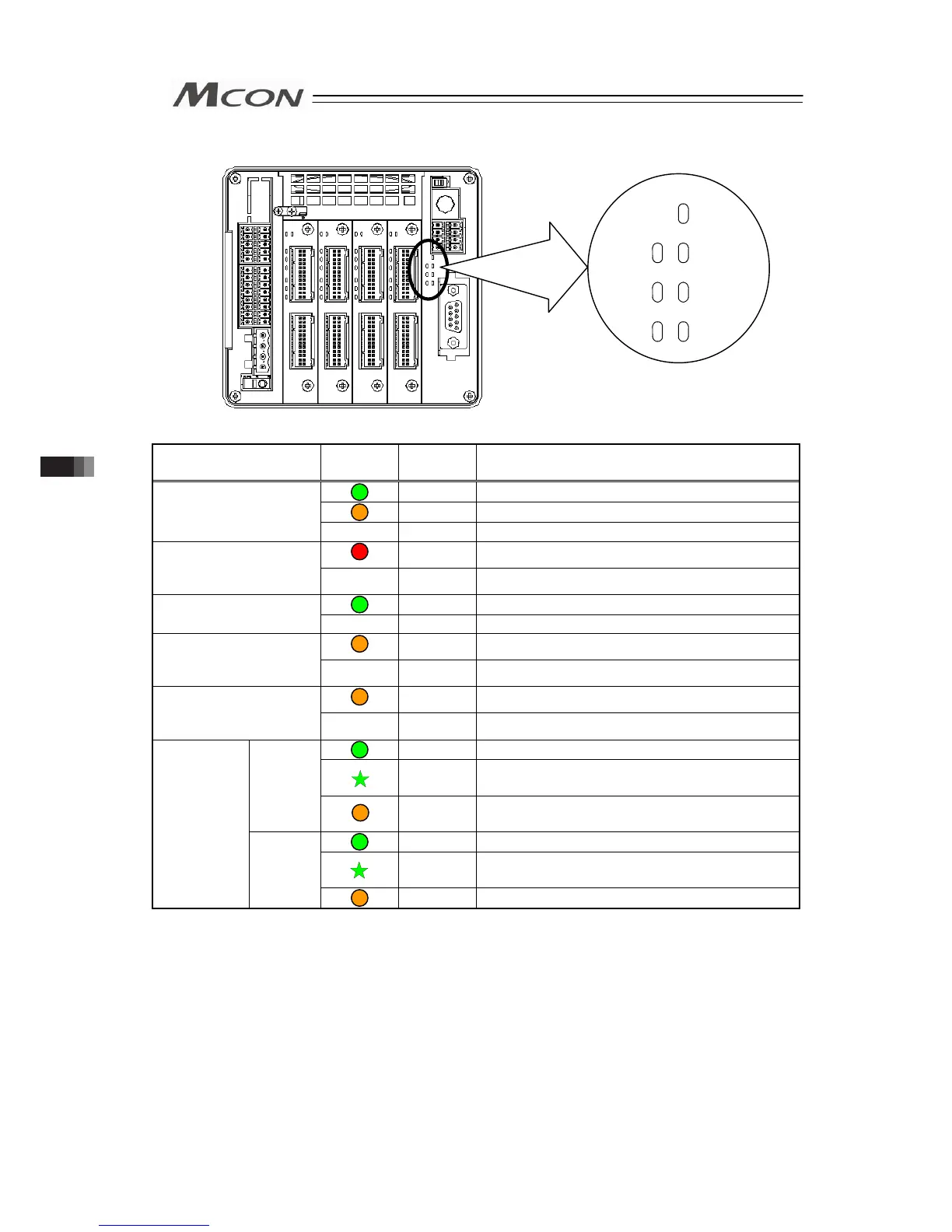

3.10.3 PROFIBUS-DP
{: Illuminating, ×: OFF, : Flashing
Symbol
Lamp
Condition
Color Description
Green Ready
Orange Alarm generated
SYS
(System status)
× Power is OFF or in initializing
Red Emergency stop
EMG
(Emergency stop
status)
× Normal
Green AUTO Mode
MODE
(AUTO/MANU status)
× MANU Mode
Orange Controller internal communication error
T ERR
(Controller internal
communication status)
× Normal
Orange Fieldbus communication error
C ERR
(Fieldbus
communication status)
× Normal
Green Online (Normal)
Green
Online (Even though the network is established
normally, the master does not identify as MCON)
NS
Orange
An error occurs. (Parameter error or initializing
error)
Green Initializing is completed.
Green
Initializing completed and in self-checking
process
Fieldbus
status
MS
Orange An error occurs. (Exceptional error)
MODE EMG
SYS
MS
C ERR
NS
T ERR
