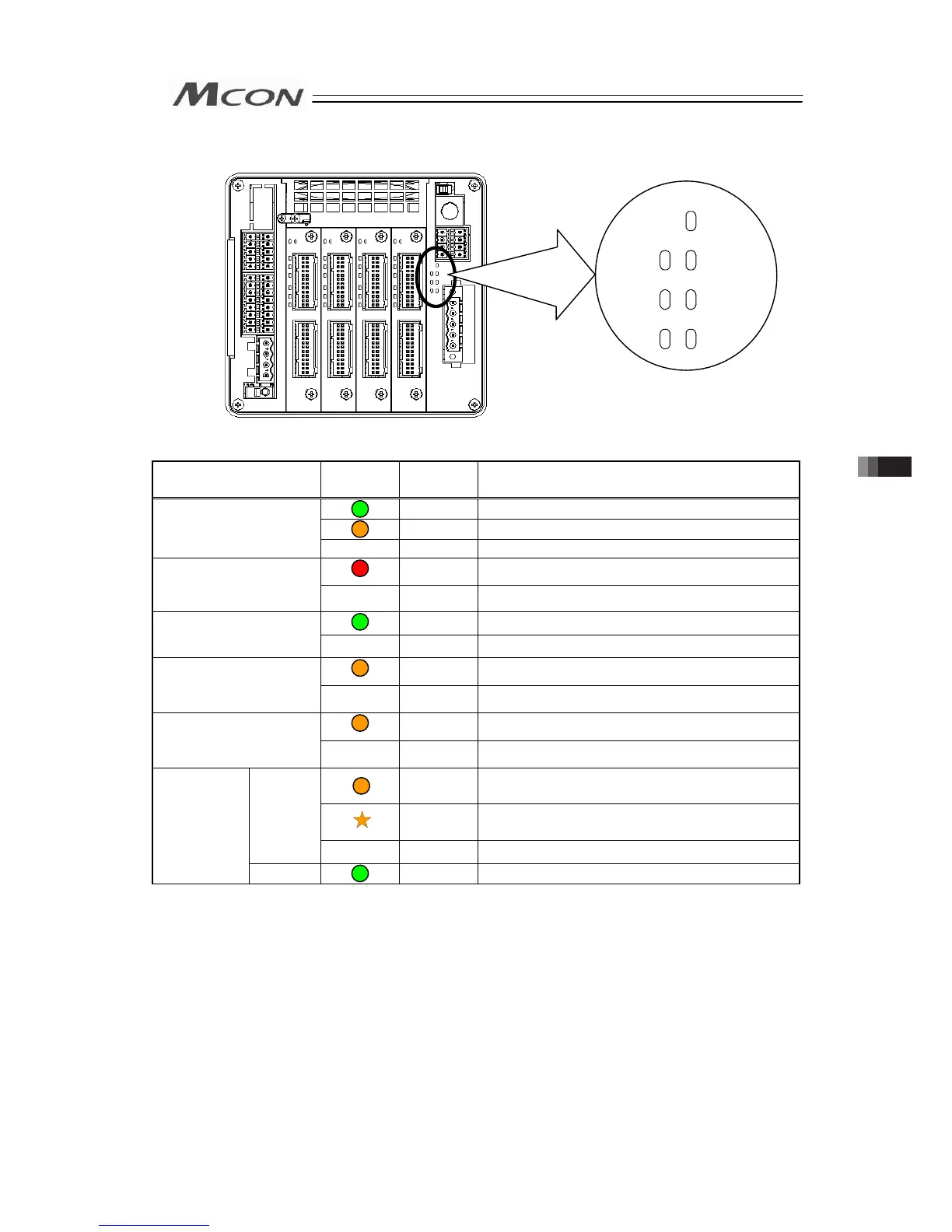

3.10.2 CC-Link
{: Illuminating, ×: OFF, ☆: Flashing
Symbol
Lamp
Condition
Color Description
Green Ready
Orange Alarm generated
SYS
(System status)
× – Power is OFF or in initializing
Red Emergency stop
EMG
(Emergency stop
status)
× – Normal
Green AUTO Mode
MODE
(AUTO/MANU status)
× – MANU Mode
Orange Controller internal communication error
T ERR
(Controller internal
communication status)
× – Normal
Orange Fieldbus communication error
C ERR
(Fieldbus
communication status)
× – Normal
Orange
An error occurs. (CRC error, station No. setting
error or baud rate setting error)
Orange
Station number or baud rate changed after the
power-on
ERR
× – Normal
Fieldbus
status
RUN Green Communication in normal condition
MODE
EMG
SYS
C ERR
ERR
T ERR
