2) Setting Menu

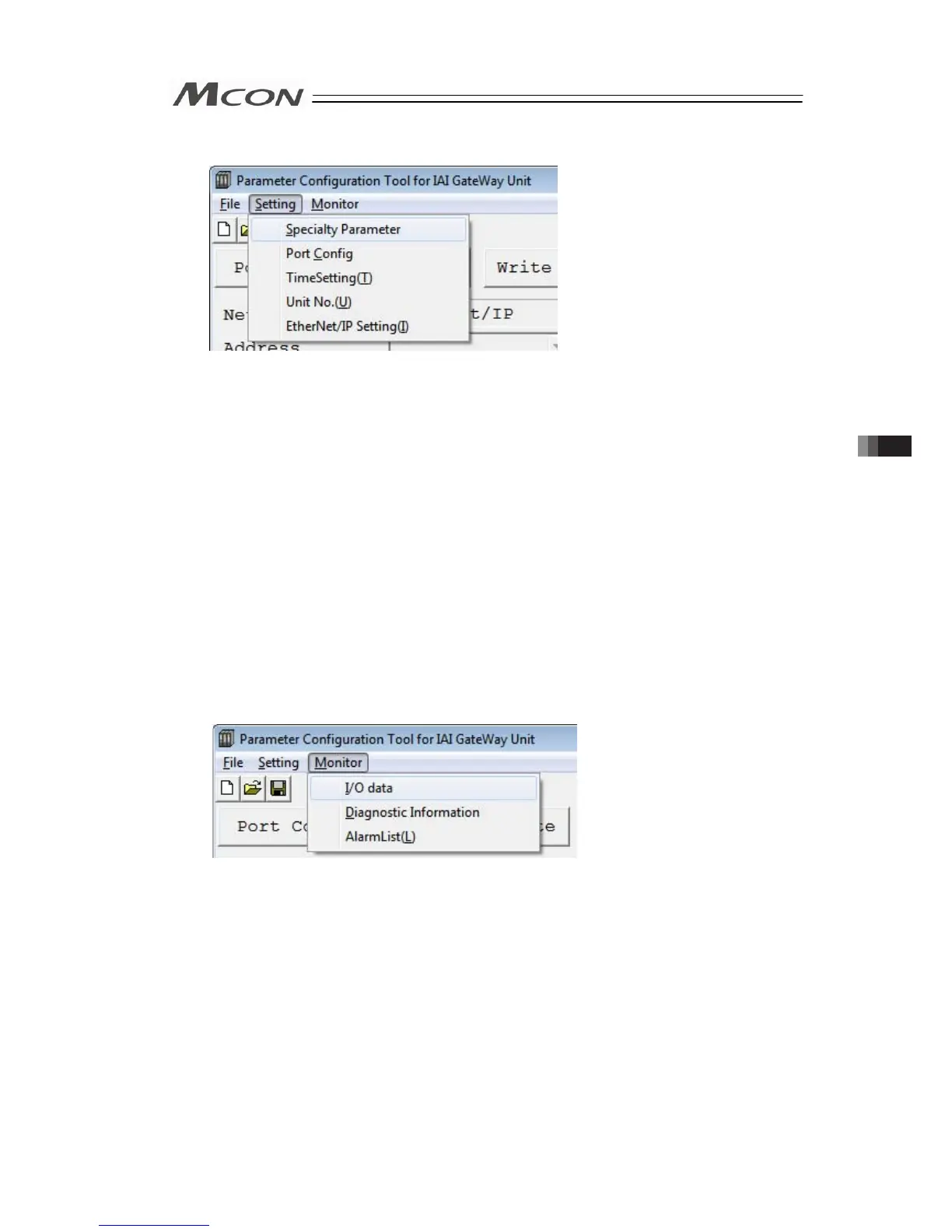

Click on the “Setting” menu on the top left corner in the main window and the setting menu
list pops up.
• Specialty Parameter : Set the parameters related to the process of Gateway area in
MCON.
[Refer to 3.9.3 1) to 3) GW Parameter 1/2/3, 4) GW Mode
Select.]
• Port Config : Set the communication speed between the tool and PC and
COM port number.
• Time Setting (T) : Set the clock retained in MCON.
[Refer to 3.9.3 5) Clock Setting.]
• Unit No. (U) : Set the unit number setting of MCON and top axis number in
that unit.
[Refer to 3.9.3 6) Unit Number.]
• EtherNet/IP Setting (I) : For EtherNet/IP type, this menu is displayed.
Set IP address etc.
[Refer to 3.9.3 7) EtherNet/IP Setting]
3) Monitor menu
Click on the [Monitor] menu on the top left corner in the main window and the monitor menu
list pops up.
(Note) “Monitor” cannot be selected before reading a parameter.
• I/O data : Show the details of the host PLC and MCON data.
[Refer to 3.9.3 8) I/O data.]
• Diagnosis Information : Show the number of ERRT and ERRC occurrence, emergency
stops and scan time.
[Refer to 3.9.3 9) Diagnosis information.]
• Alarm List (L) : Read and show the alarm list retained in MCON.
[Refer to 3.9.3 10) Alarm list.]
