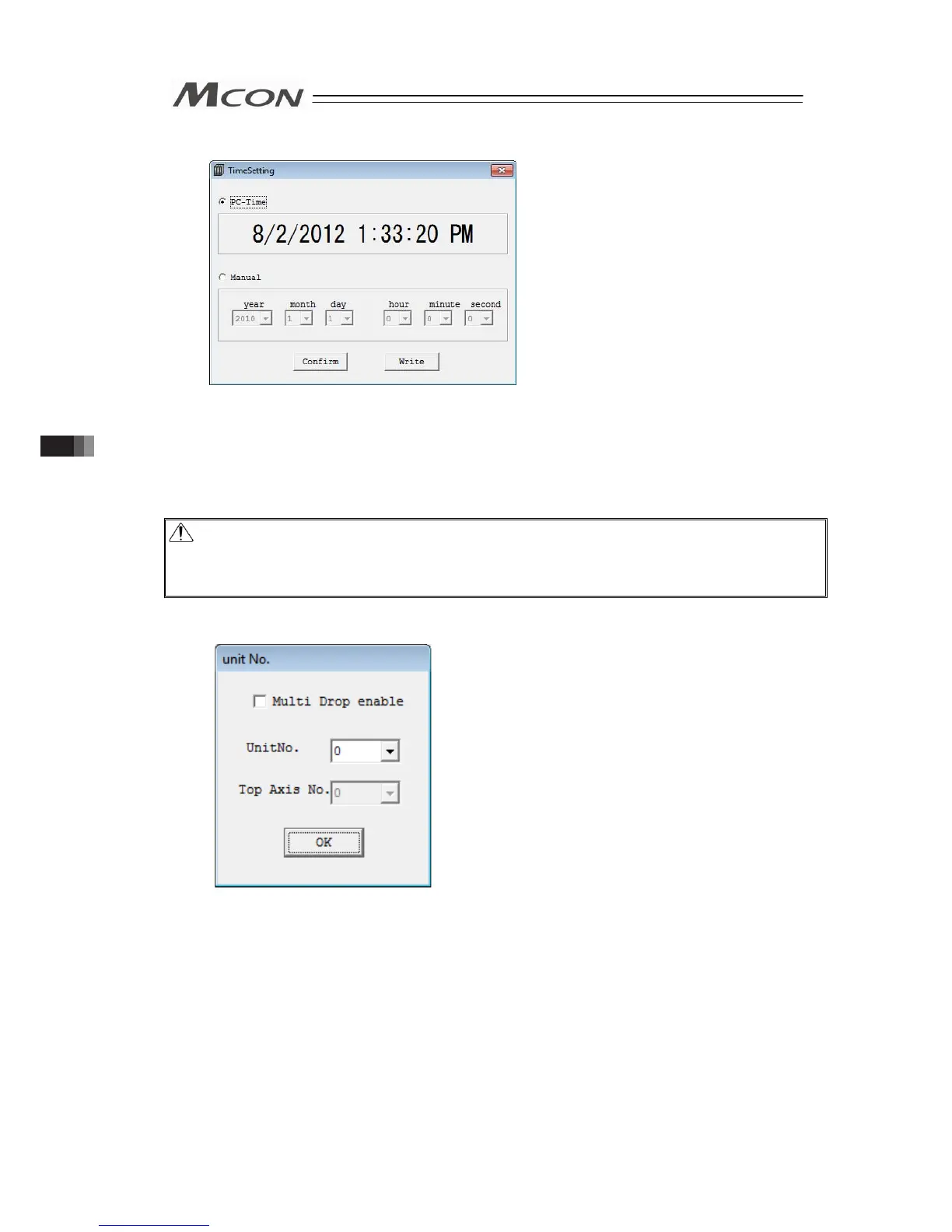

5) Time Setting
By selecting Time on PC, the current time on the PC is acquired and set to MCON. If Set
Manually is selected, desired time set in the clock edit in the window can be set in MCON.
Click “Write”, and the time setting is transferred to MCON and the data is written in.
Clicking on the Confirm button and the clock data currently retained in MCON can be read
and displayed.
6) Unit No. Setting
This setting is to be conducted when 2 units of MCON are to be connected to the PC
software at the same time.
(It is not necessary to have this setting done for 1 unit of MCON.)
•
Multi Drop enable : Tick in the box if the setting in this window is to be activated.
• Unit No. : Set the unit number of MCON.
• Top Axis No. : Set the top axis number of MCON composition axes.
Caution: The clock (calendar) function in MCON can be retained for approximately 10 days
(reference) after the power to MCON is turned OFF.
Once the clock data is lost, the time passed since the power is turned back on as
2000/1/1 0:00:00 is displayed as the current time.
3.9 About Gateway Parameter Setting Tool
