18

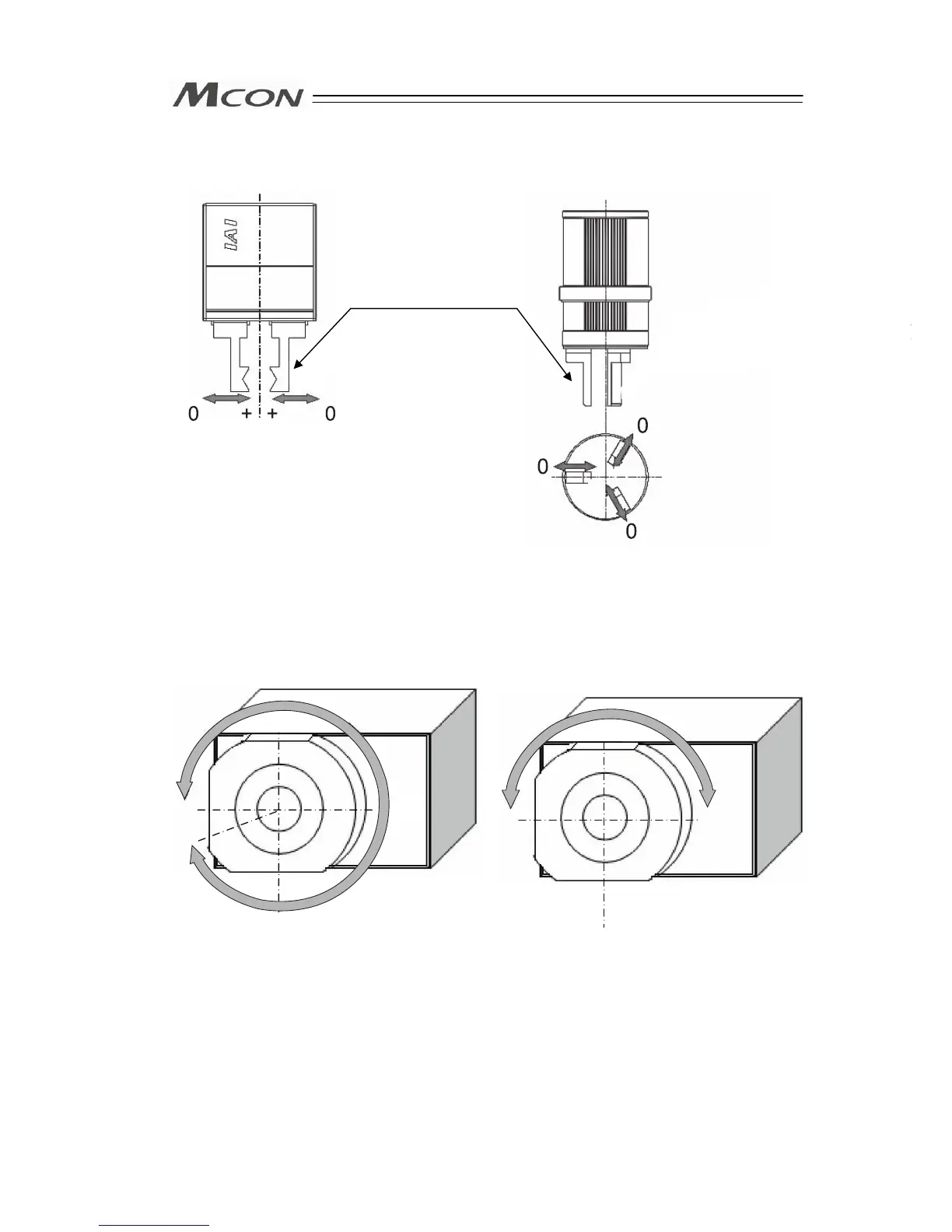

(5) Gripper Type
(3-Finger Gripper)
Note Finger attachment is not included in the actuator package. Please prepare separately.
(6) Rotary Type
(330° Rotation Type) (Multi-Rotation Type)
For Multi-Rotation Type with the origin reversed type, the directions of + and – are the other way
around.
+
+
+
Finger Attachment
(N
o
t
e
)
-
+
0
330°
