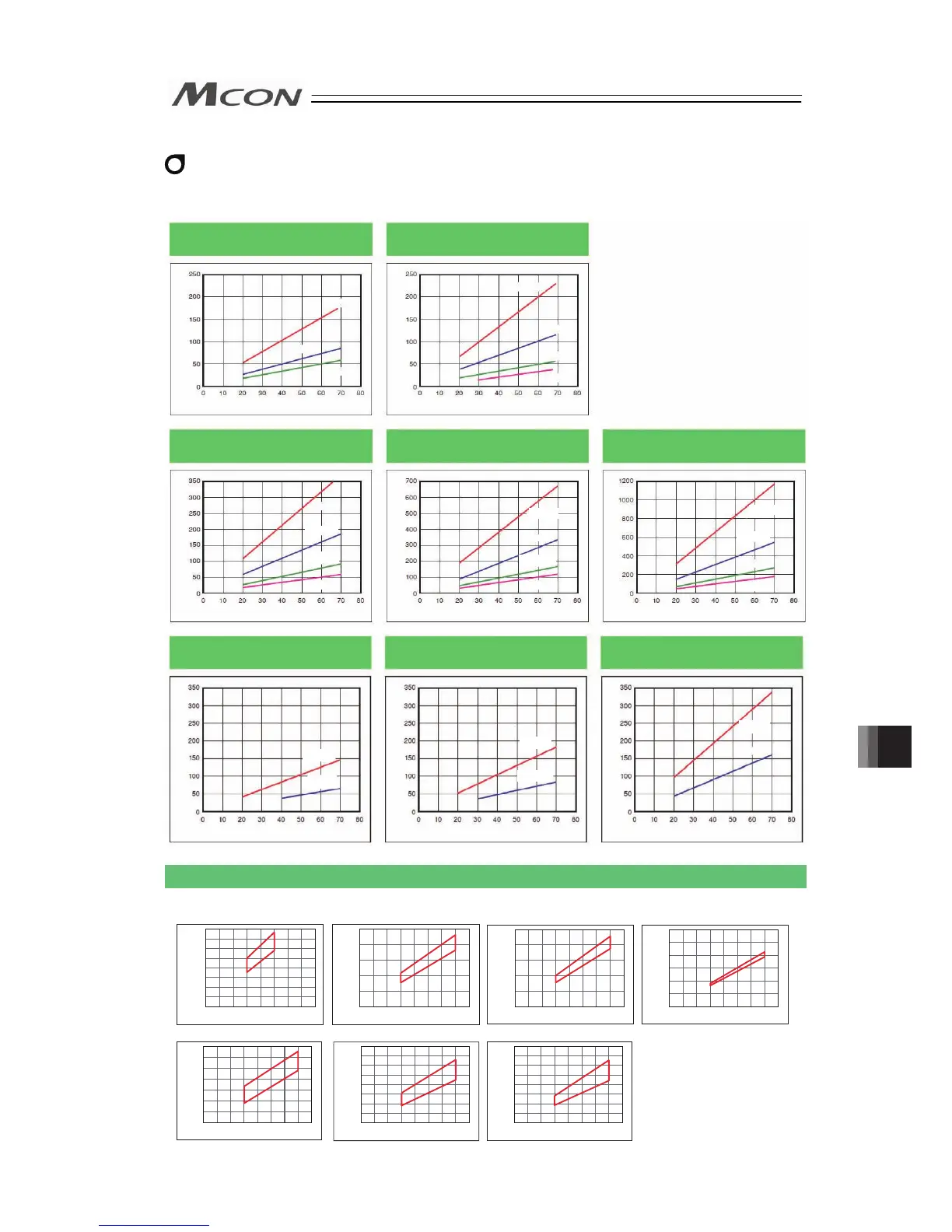

RCP4 Series (Slider type / Rod type)
* Characteristics should be the same for Cleanroom type.
* RCP4-RA6C high thrust type is not available for connection to this controller.
SA3 type
SA3 type
SA5/SA6/RA5 type
SA7 type
RA6 type
RCP4W-SA5C RCP4W-SA6C
RCP4W-SA7C
Push force (N)
Current-limiting value (%)
Push force (N)
Current-limiting value (%)
Push force (N)
Current-limiting value (%)
Push force (N)
Current-limiting value (%)
Push force (N)
Current-limiting value (%)
Push force (N)
Current-limiting value (%)
Push force (N)
Current-limiting value (%)
Push force (N)
Current-limiting value (%)
Lead 2
Lead 4
Lead 6
Lead 2.5
Lead 5
Lead 10
Lead 3
Lead 20
Lead 12
Lead 10
Lead 5
Lead 12
Lead 6
Lead 16
Lead 8
Lead 8
Lead 24
Lead 16
Lead 4
Lead 16
Lead 24
Lead 16
Lead 4
Lead 8
Lead 6
800
700
600
500
400
300
200
100
0
Push force (N)
0 10 20 30 40 50 60 70 80
Current-limiting value (%)
<RA6C Lead 3 High-Thrust type>
500
400
300
200
100
0
Push force (N)
0 10 20 30 40 50 60 70 80
Current-limiting value (%)
<RA6C Lead 3 Standard type>
250
200
150
100
50
0
Push force (N)
0 10 20 30 40 50 60 70 80
Current-limiting value (%)
<RA6C Lead 6 Standard type>
150
125
100
75
50
25
0
Push force (N)
0 10 20 30 40 50 60 70 80
Current-limiting value (%)
<RA6C Lead 12 Standard type>
800
700
600
500
400
300
200
100
0
Push force (N)
0 10 20 30 40 50 60 70 80
Current-limiting value (%)
<RA7C Lead 8 Standard type>
1400
1200
1000
800
600
400
200
0
Push force (N)
0 10 20 30 40 50 60 70 80
Current-limiting value (%)
<RA7C Lead 4 Standard type>
400
350
300
250
200
150
100
50
0
Push force (N)
0 10 20 30 40 50 60 70 80
Current-limiting value (%)
<RA7C Lead 16 Standard type>
RCP4W-RA6C/RA7C type
