37

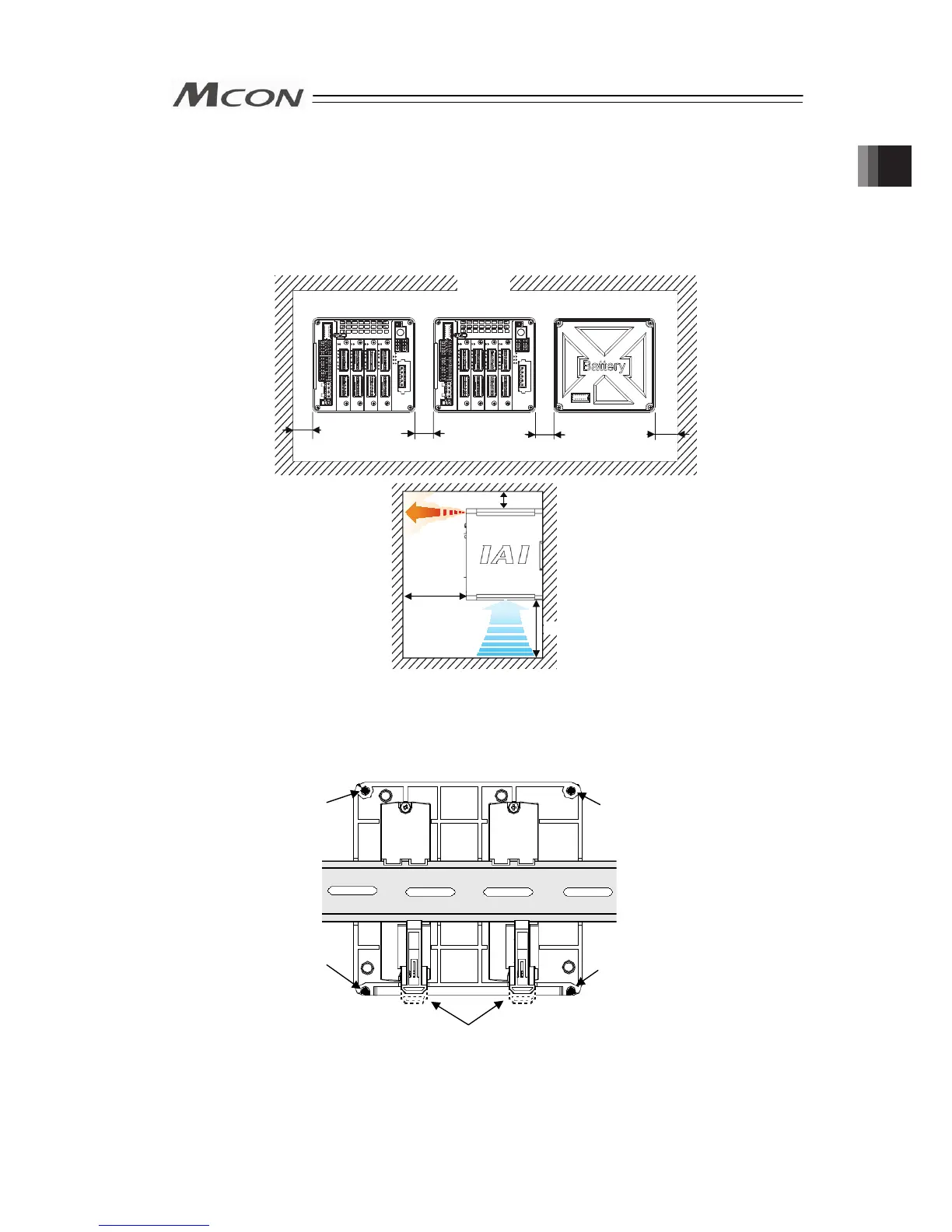

(4) Cooling Factors and Installation
Design and Build the system considering the size of the controller box, location of the controller
and cooling factors to keep the ambient temperature around the controller below 40°C.
Pay a special attention to the battery unit since the performance of it would drop both in the low
and high temperatures. Keep it in a room temperature environment as much as possible.
(Approximately 20°C is the recommended temperature.)
20mm
or more
20mm
or more
20mm
or more
20mm
or more
20mm or more
50mm
or more
Ensure
enough space
for wiring.
50mm or more
Air outlet
(Heat
Radiation)
Air outlet
(Heat
Radiation)
Air inlet
Air inlet
Rear View
Ceiling
For the attachment of the unit, use the fixture holes on the four corners or attach on the DIN rail.
(Attachment should be the same for the absolute battery box.)
φ5 fixture hole
φ5 fixture hole
DIN rail
φ5 fixture hole
φ5 fixture hole
Lever for attachment to DIN rail
Chapter 1 Specications Check
