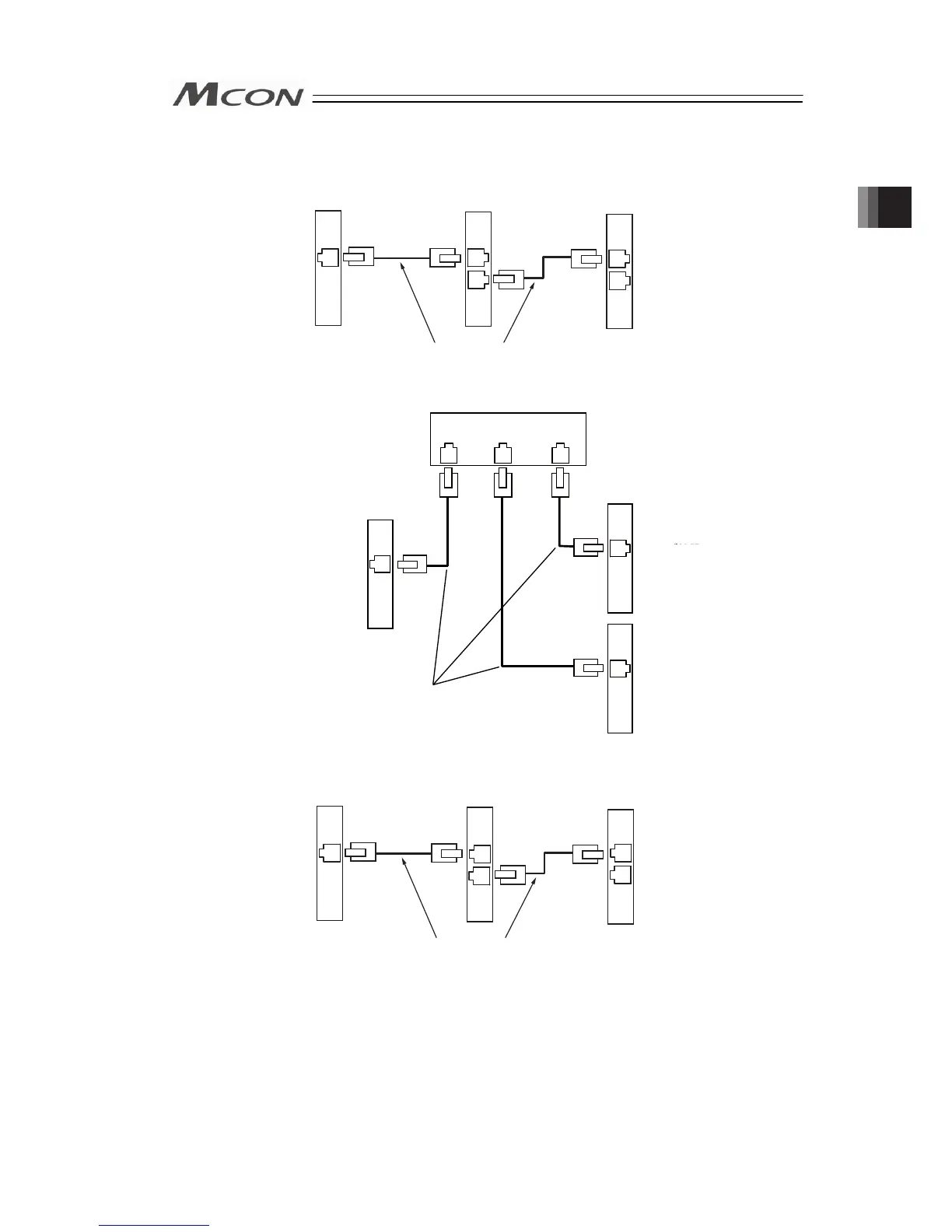

6) EtherCAT Type, EtherCAT Motion Type
IN
OUT
IN
OUT
Master Unit Slave Devices
MCON
EtherCAT Type or
EtherCAT Motion Type
7) PROFINET-IO Type
マスタユニット
スイッチングハブ
スレーブ機器
EtherNetストレートケーブル
カテゴリ5e以上
アルミテープと編組の二重しゃ断シールド
ケーブル推奨
MSEP
EtherNet/IP仕様
8) CC-Link IE Field Type
Master Unit Slave Devices
MCON
CC-Link IE Field Type
9) SSCNETⅢ/H Type
Refer to wiring of SSCNETⅢ/H, SSCNETⅢ/H Applicable Controller Instruction Manual
(ME0352).
10) MEHCATROLINK-Ⅲ Type
Refer to wiring of MEHCATROLINK-Ⅲ, MEHCATROLINK-Ⅲ Applicable Controller
Instruction Manual (ME0317).
Ethernet Straight Cable Category 5 or more
Double shielded cable braided with aluminum foil recommended
Terminal resistance is not required.
Ethernet Straight Cable
Category 5 or more
Double shielded cable braided with aluminum foil
recommended
Master Unit
Slave Devices
MCON Unit
PROFINET-IO Type
Switching Hub
Ethernet Straight Cable Category 5e or more
Double shielded cable braided with aluminum foil recommended
There is no distinction of IN and OUT. Terminal resistance is not required.
