IAI MCON-C User Manual

65

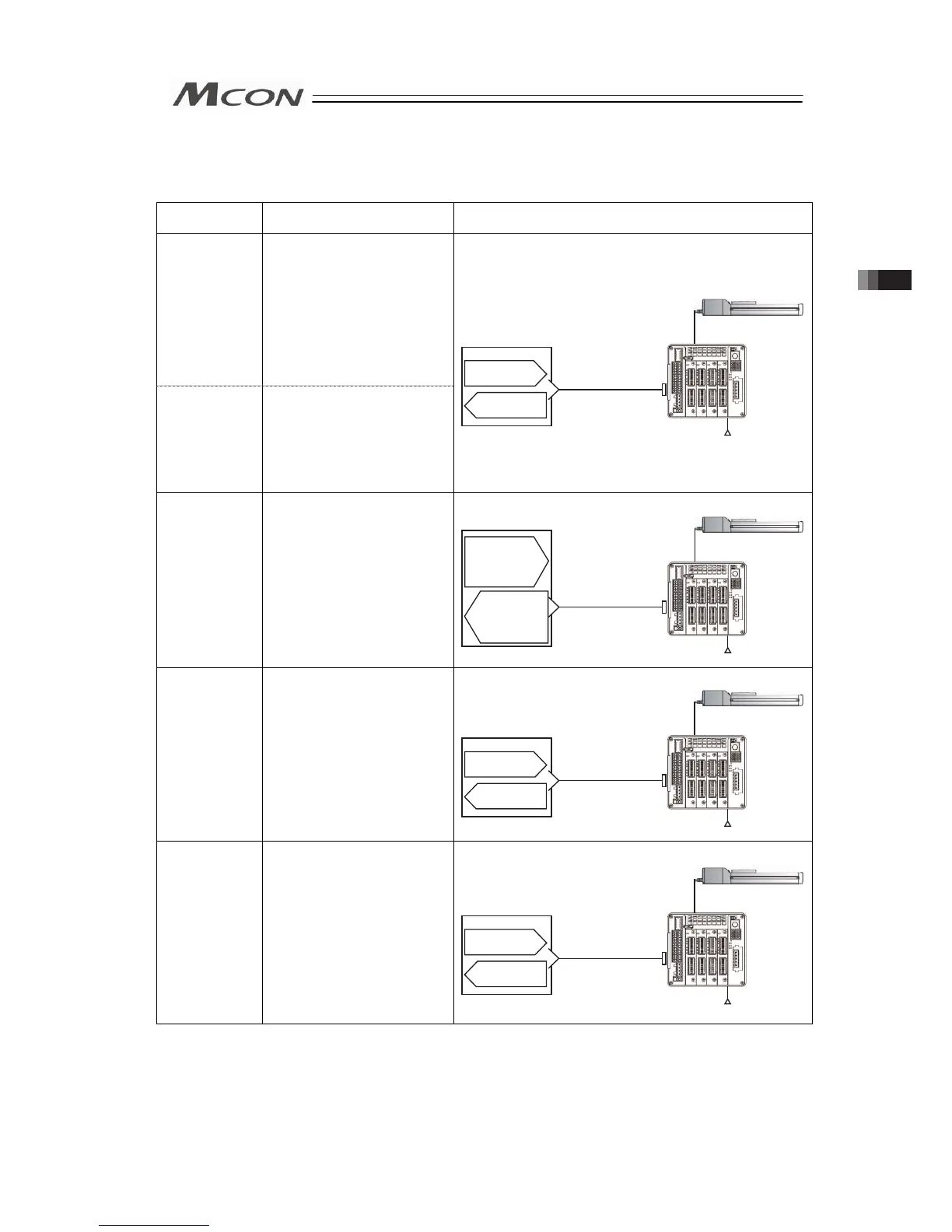

● Operation Mode Available
7 types of operation modes are available to select from. The settings are to be established with
Gateway Parameter Setting Tool.
Shown below are the outline.
Operation
Mode
Contents Overview
Simple Direct
Mode
The target position can be
indicated directly by inputting a
value. Also, monitoring of the
current position is available in
0.01mm unit.
Those other than the target
position are to be indicated in
the position table, and the
setting can be done for 256
points at maximum.
Positioner 1
Mode
The 256 points of position data
can be registered at the
maximum and is able to stop at
the registered positions. Also,
monitoring of the current
position is available in 0.01mm
unit.
Communication with Fieldbus
Dedicated Cable
+24V
Target Position
Target Position No.
Control Signal
PLC
Current Position
Completed Position No.
Status Signal
Electric Cylinder
Direct Indication
Mode
The target position, speed
acceleration/deceleration and
pressing current limit can be
indicated with inputting a
number.
As well as monitoring of the
current position in 0.01mm unit,
monitoring of current speed and
command current is also
available.
Communication with Fieldbus
+24V
Target Position
Positioning Width
Speed
Acceleration/Deceleration
Push %
Control Signal
PLC
Current Position
Current Value
(Command Value)
Current Speed
(Command Value)
Alarm Code
Status Signal
Dedicated Cable
Electric Cylinder
Positioner 2
Mode
This is the operation mode of
the position data of 256 points
at maximum set in the position
table. The monitoring of the
current position is not available
This mode is that the
transferred data is reduced
from Positioner 1 Mode.
Communication with Fieldbus
+24V
Target Position No.
Control Signal
PLC
Completed Position No.
Status Signal
Dedicated Cable
Electric Cylinder
Positioner 3
Mode
This is the operation mode of
the position data of 256 points
at maximum set in the position
table. The monitoring of the
current position is not available
This is the mode to control with
the minimized number of
signals to perform the
positioning operation by
reducing the amount of sent
and received data from
Positioner 2 Mode.
Communication with Fieldbus
+24V
Target Position No.
Control Signal
PLC
Completed Position No.
Status Signal
Dedicated Cable
Electric Cylinder
3.1 Basic Operation
