IAI SCON-CB-F - Step 4 Wiring

Step 4 Wiring Refer to Chapter 2 “Wiring”
[Positioner Operation] ~ 750W Type Refer to Sections 2.1 and 2.5
3000W ~ Type Refer to Sections 2.2 and 2.6
[Pulse Train Control] Refer to Sections 2.3 and 2.5
[Ladder Control] Refer to Sections 2.4 and 2.5
[Field Network Specification] Refer to Chapter 4

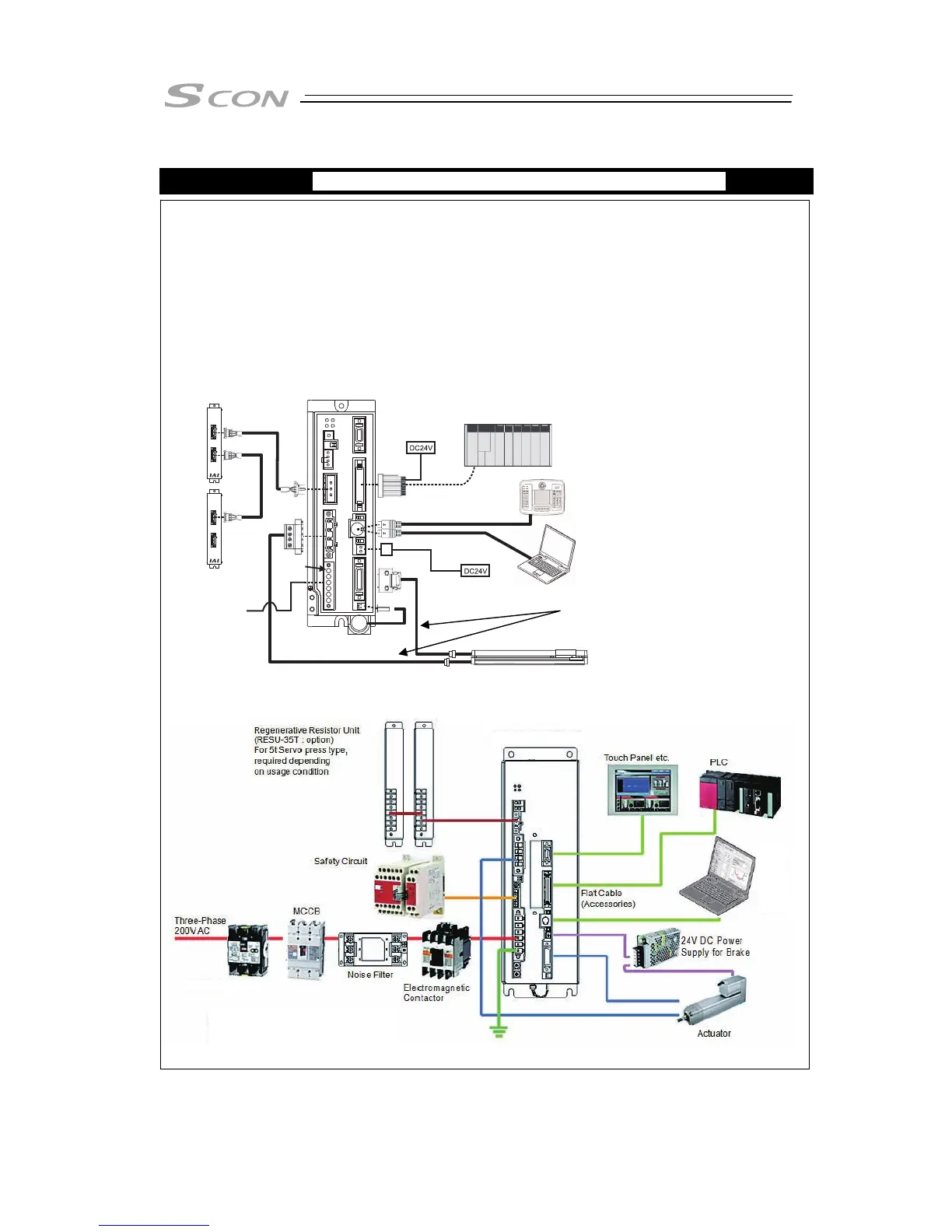

• Example for Basic Connection 1 (~ 750W or less)
• Example for Basic Connection 2 (3000W ~)
* Refer to 2.1.3 [5] and 2.2.3 [5]
for wiring layout as the
signals/features differ for each
PIO pattern (selected in
Parameter No. 25) in PIO.
* Perform wiring referring to
Chapter 4 Field Network for the
field network type.
CB-SC-REU010
Regenerative Resistor Unit
(REU-2 : option)
Required depending
on usage condition
[Refer to 1.5.3 Regenerative Unit]
CB-ST-REU010
Power Source
Single Phase
100V AC or
200V AC
Power
Supply
Connector
Absolute Battery
(for Absolute Type)
PLC
(Note1)
Power Source for
I/O Control
(Note1)
Flat Cable
(Accessories)
PC Software
(option)
(Note1)
Power Supply for Brake
It is necessary when actuator with brake
Actuator
Teaching pendant (option)
Connection cable differs depending on
actuator. [Refer to 2.1.3 [4]]
Teaching Tool
Power Cutoff Breaker
As SCON-CGB for 3000 to 3300W does not have
the drive cutoff circuit, make sure to establish
cutoff externally.
A
s SCON-CGB for 3000W and above dose not
have the drive cutoff circuit, make sure to
establish cutoff externally.
