x Heat Radiation and Installation
Keep the ambient temperature of the controller at 40°C or less.
To fix the units in the control box, use the attachment holes on top and bottom of the unit for the screw
fixed type.

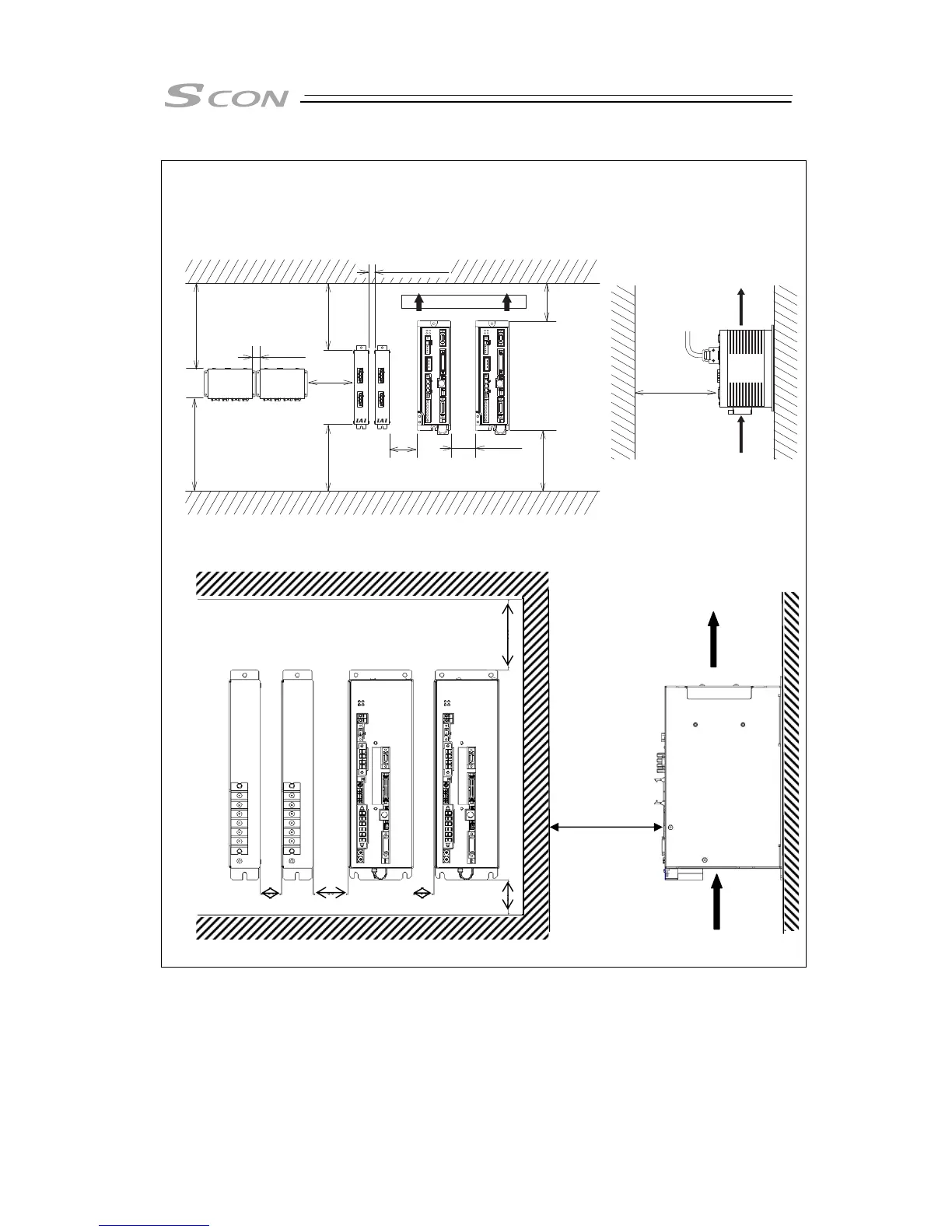

Install in the orientation shown in the figure below for heat radiation.
For 3000W ~ type
Brake Box
Regeneration
Unit
Air Flow
Fan
10mm
or more
100mm
or more
50mm
or more
50mm
or more
100mm
or more
30mm
or more
50mm
or more
50mm
or more
50mm
or more
50mm
or more
10mm or more
150mm or more
Air Flow
A
ir Flow
150mm
or more
100mm
or more
50mm
or more
30mm or more
50mm or more
30mm or more
