Check the operation modes and control methods available on the controller you have purchased.
It can be defined on the controller model code shown on the label in the front face of the controller.
Note example
Step 3

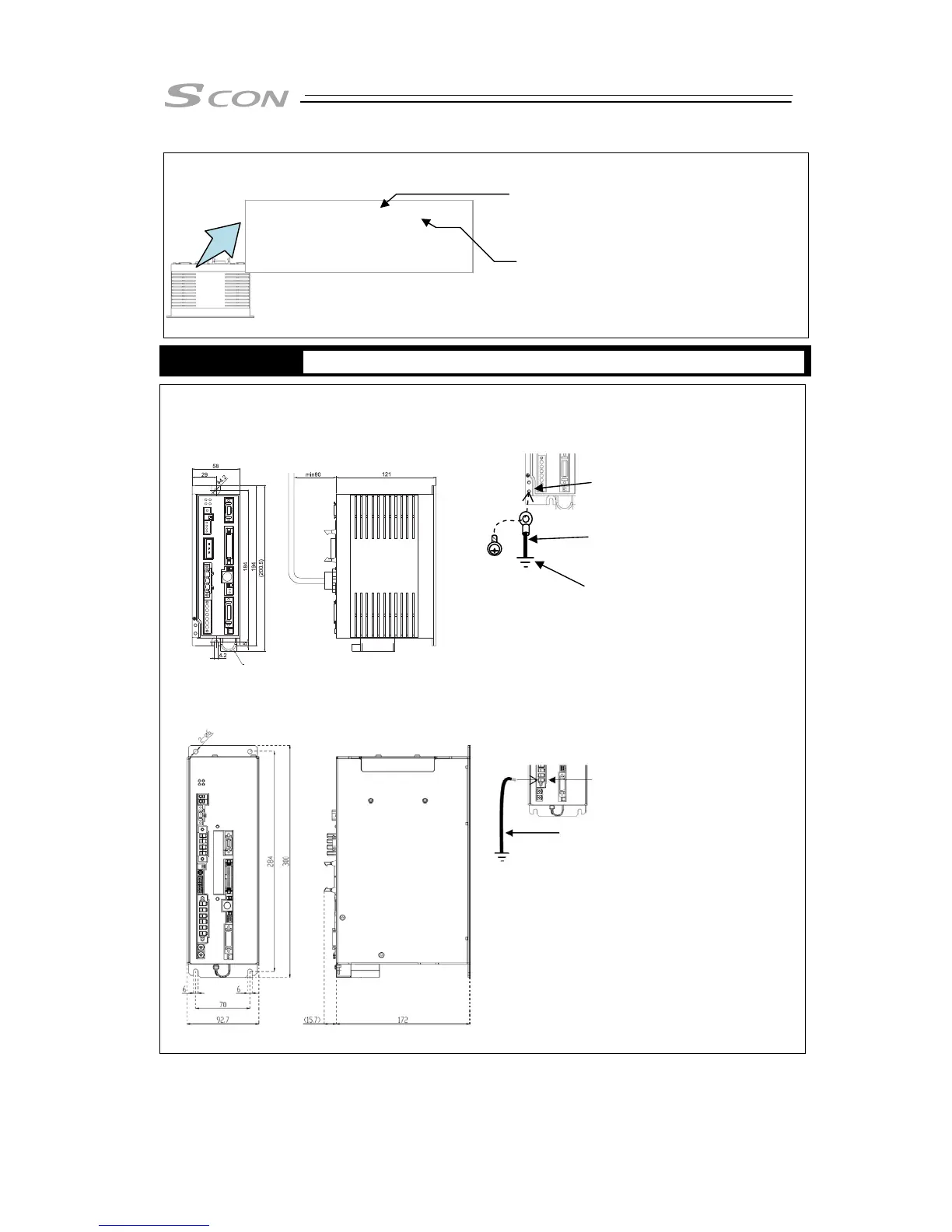

Installation
x External Dimensions
* Check in 1.3 Appearance. •
Noise Elimination Grounding (Frame Ground)
Controller
Controller (3000W ~)
Refer to 1.6 “Installation and Storage Environment” and “1.7 Noise Elimination and Mounting Method”
For Absolute Battery
(For Absolute Encoder Type)
Earth Terminal
(Grounding resistance at 100Ω or less)
Copper Wire:
Connect to a ground cable with
diameter 2mm
2
(AWG14) or more.
Connect the ground line
together to the main unit
using the fixing screw.
Type Name
1) CB / CGB (select from positioner and pulse train)
2) LC / LCG (Ladder control)
I/O Type
1) NP / PN (For PIO control)
2) For others, (dedicated for field network control)
MODEL : SCON-CB-100I-NP-5-2
SERIAL No. : 100283729
INPUT :
φ
100-115V, 50/60Hz, 1.8A
OUTPUT : 3
φ
, 0-230V, 0-333Hz, 1.1A
Earth Terminal
(Grounding resistance at 100Ω or less)
Copper Wire: Connect to a ground cable
with diameter 3.3mm
2
(AWG12) or more.
Connect the ground line to PE terminal
on the power supply connector.
