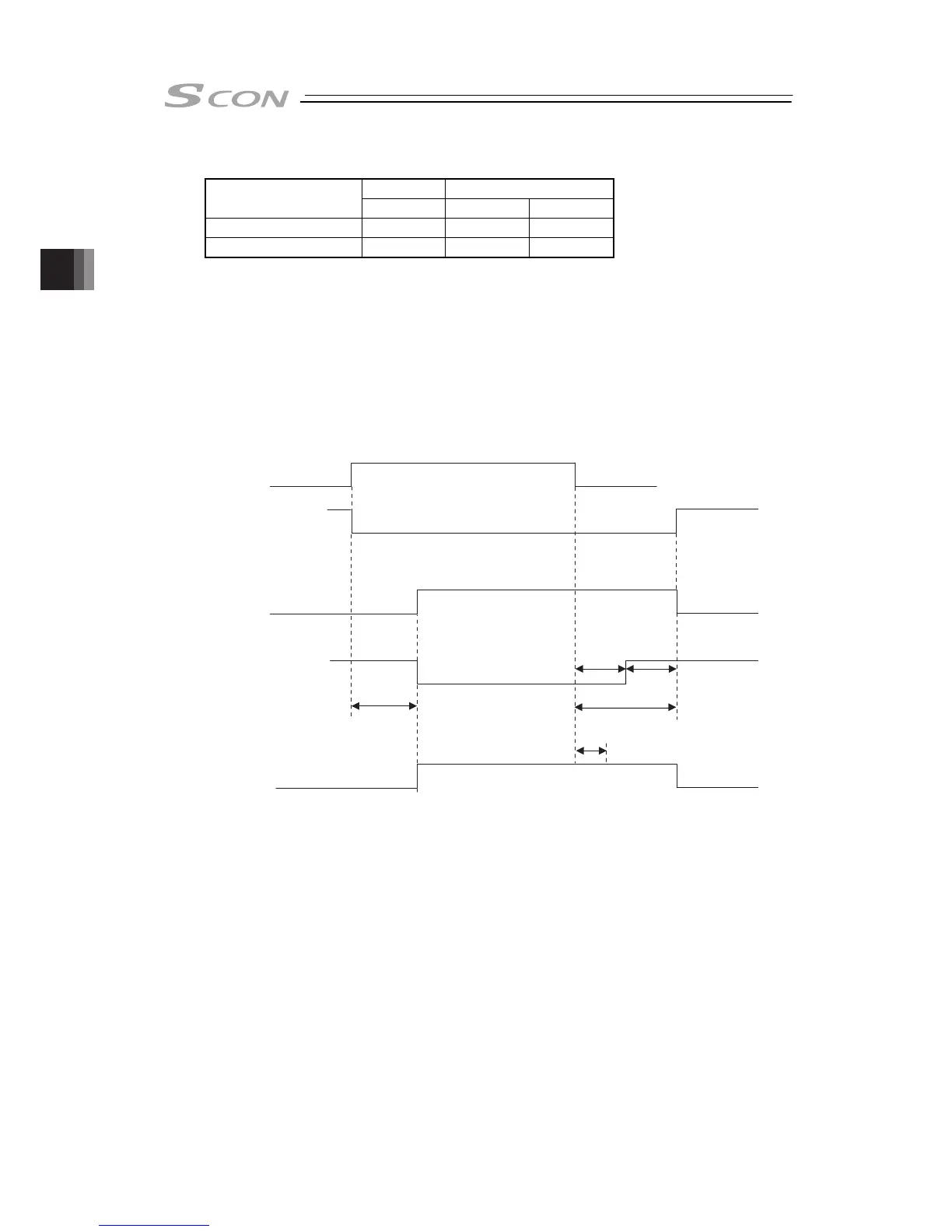

3. Operation
162
[3] Servo ON (SON, SV, PEND)
Input Output
PIO signal
SON SV PEND
Other than pattern 5
{ { {
Pattern 5
{ {
×
{ : Available, ×: Unavailable
1) Servo ON signal SON is the input signal making the servo motor of the actuator operable.
2) If the servo-on is performed to enable operation, the SV output signal is turned ON.
Concurrently positioning completion signal PEND is turned ON.
3) With the power being supplied, then controller cannot be operated while the SV signal
remains OFF. If the SON signal is turned OFF under operation of the actuator, the actuator
is decelerated and stopped with the forced stop torque. After the stop, the servo OFF
occurs to enter the motor into the free running state.
The brake (option) is of release-in-excitation type. Therefore, making the excitation on will
release the brake while making it off will lock the brake.
SON
SV
Dynamic Brake
Lock
20ms
50ms
50ms
100ms
Lock
Release
Release
Brake Excitation
It may differ due to operation condition
and load condition.
PEND
(Note 1)
Note 1 PEND would not turn ON in the pause condition.
3.2.3
