[117] Linear Absolute Home Preset Value (Parameter No.150)
No. Name Symbol Unit Input Range
Default factory
setting
150
Linear Absolute Home Preset
Value
LAPS mm -9999.99 to 9999.99
In accordance
with actuator
This can set the home position of the actuator for Spurious Absolute Type.

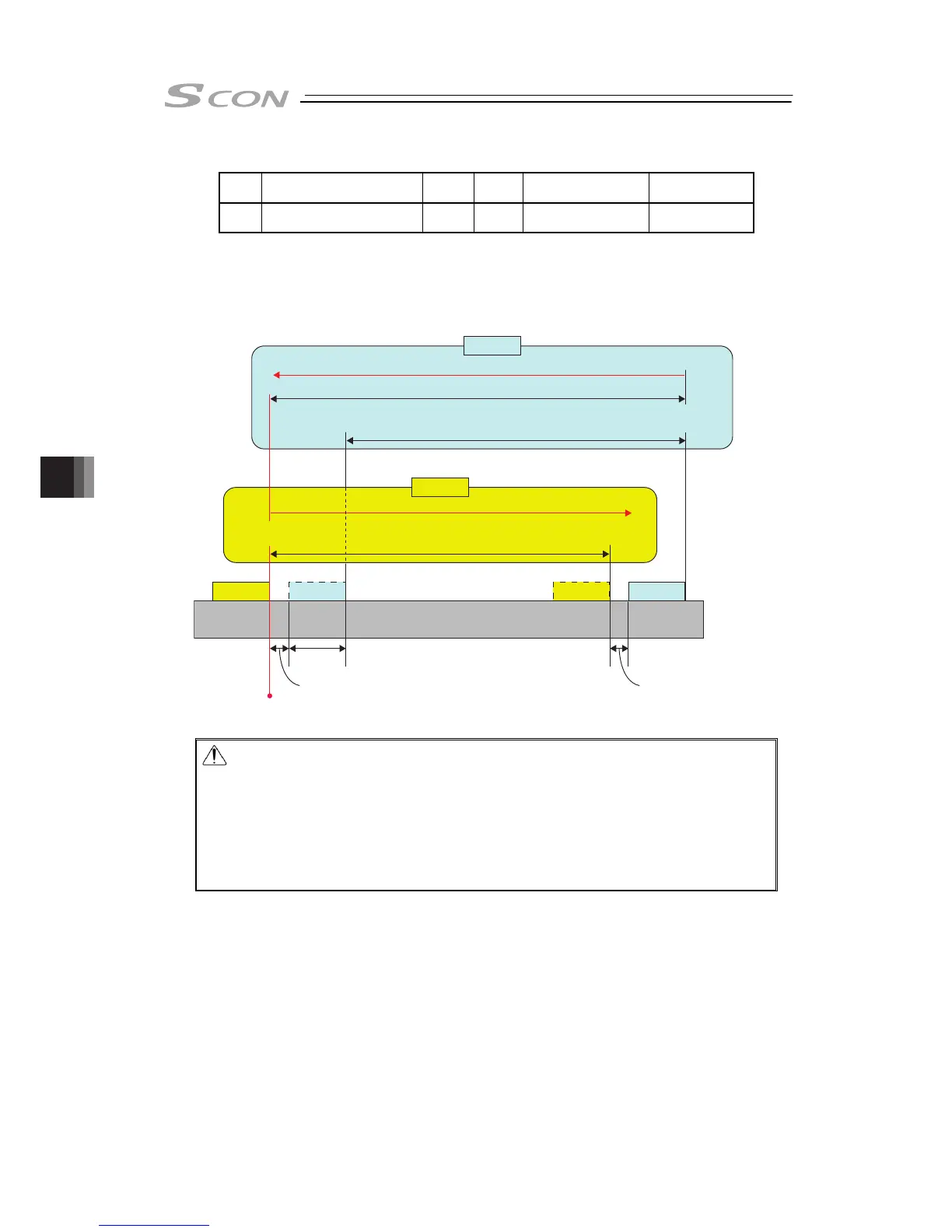

This can set the home position of the actuator for Spurious Absolute Type.The diagram below
shows the position of each part related to the datum (the initial position at the delivery from our
factory):
Caution: x Note the initial parameter at the delivery from our factory in a memo
before changing the settings.
x Take the initial parameter at the delivery from our factory as the datum
when giving a change to the settings.
x After having a change to the settings, make sure to have an operation
check with low speed.
x For the spurious absolute type actuator, No.22: Home-return Offset
Value and No.139: Home Preset Value are invalid.
+
+
Slider 2
Slider 1
Slider 2 Slider 2Slider 1Slider 1
Stroke
Stroke
Stroke + Slider Length + Min. Distance between Sliders
Coordinates of Slider 2
Coordinates of Slider 1
Slider 2
Positive Side Soft Limit
Slider 1
Negative Side Soft Limit
Slider 1
Positive Side Soft Limit
Slider 2
Negative Side Soft Limit
Min. Distance between Sliders Min. Distance between Sliders
Datum
(Initial position at the
delivery from our factory)
Slider Length
