Working with Master/Slave 8-14
ICE Vulcan Service Manual
Advanced Configuration - Configuring the Master LPA
To configure the master LPA proceed as follows:
1
Establish communications between CLARiTY Configuration Manager
and the master LPA
(“How to Connect the CLARiTY Configuration
Manager to the LPA using an RS232 connection”
on page 5-8).
2
Right click on the 'New Printer' icon when the icon turns 'green' and
Select 'Set as
Master', from the list as shown in Figure 8-12.

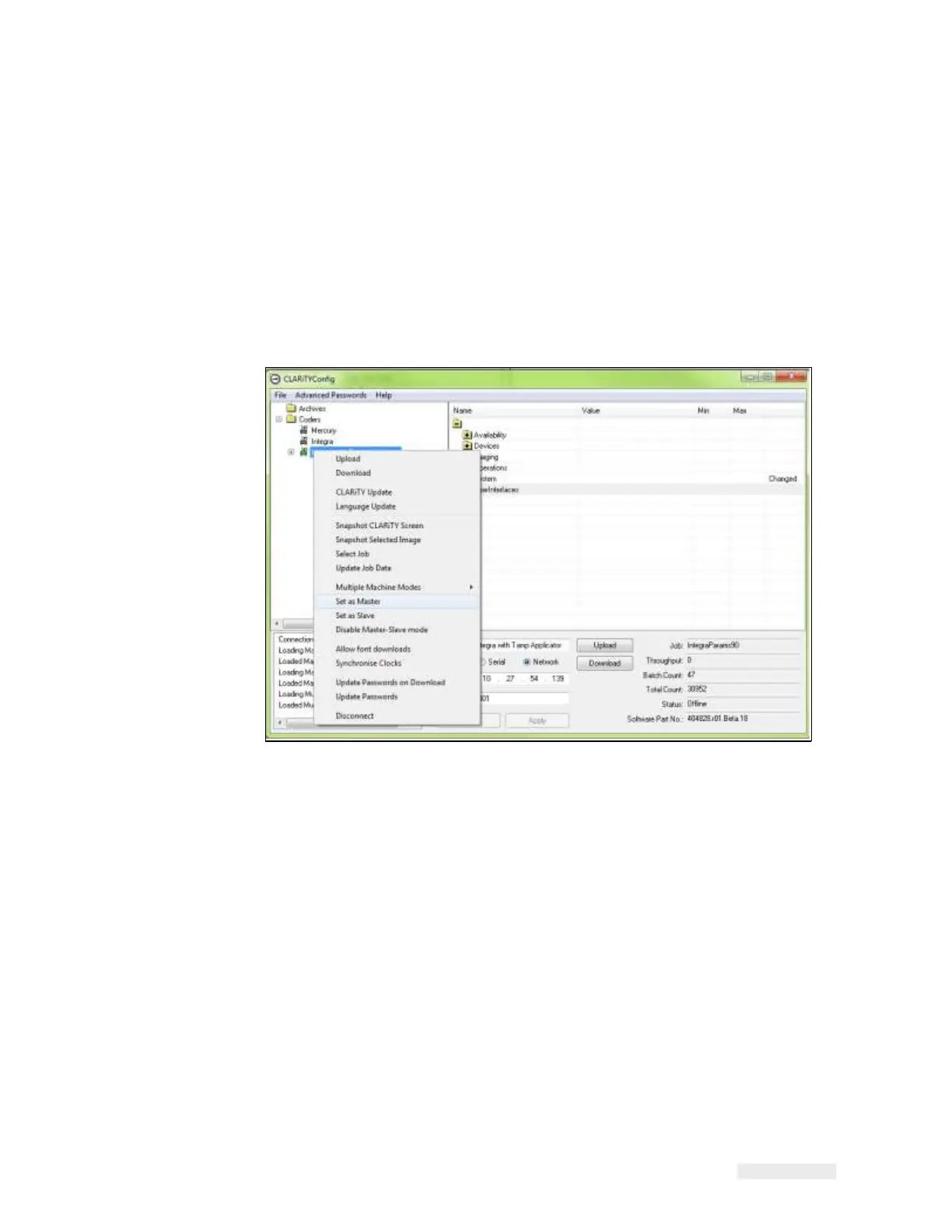

Figure 8-12: CLARiTY Config - Master Setup
