Working with Master/Slave 8-26
ICE Vulcan Service Manual
Touch Tools > Diagnostics > Printhead > Printer 1 > Inputs, there is a short
delay whilst the
Master LPA retrieves the parameters from the Slave 1
LPA. These parameters are displayed
on the CLARiTY screen of the
Master, as shown in Figure 8-24.
Slave Printer
selected
is
indicated

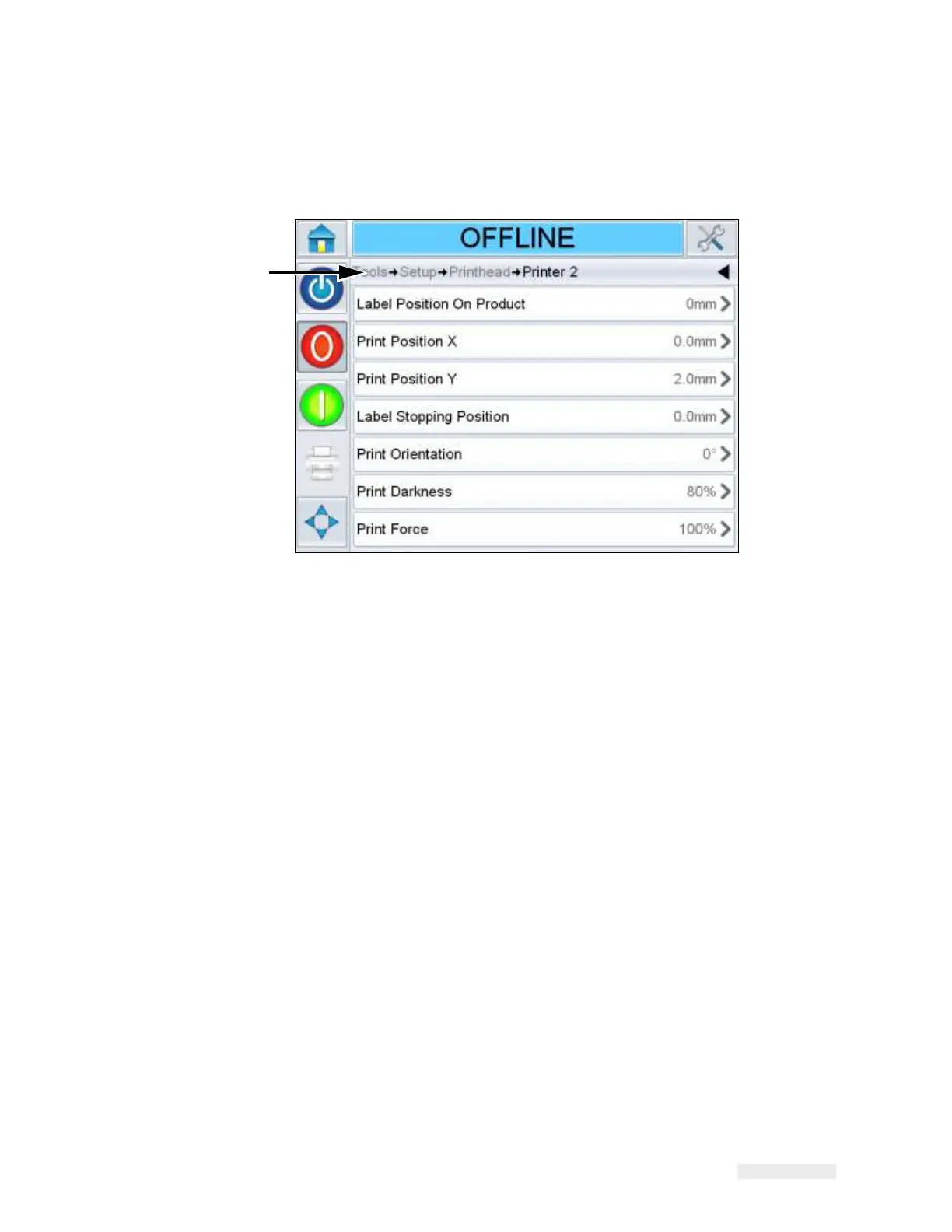

Figure 8-24: Slave Parameters
If Set up information is selected, any parameters edited would be saved in
the selected Slave
LPA.
If a Slave LPA raises a Fault or Warning, the message is displayed on the
Master LPA CLARiTY.
The Fault is also displayed on the Slave CLARiTY, if it is a Standard LPA.
When viewing the
details of the error screen on the Master CLARiTY, the
name of the Slave LPA raising the error
is displayed, e.g. LPA 2.
Error messages may be cleared in the normal way or, if desired, the LPA
may be unassigned to
ignore the error (see “Assigned LPA Parameter” on
page 8-24).
