4-10 Installing the Label Applicator
ICE Vulcan Service Manual
6
Secure the stand bars (item 2, Figure 4-6) with the M6 grub
screws (item 1).
Note: It is recommended not to fully tighten the grub screws to allow some
movement of the
stand bars whilst locating to the stand.
2
1
1.
M6 Grub Screws
2.
Stand Bar

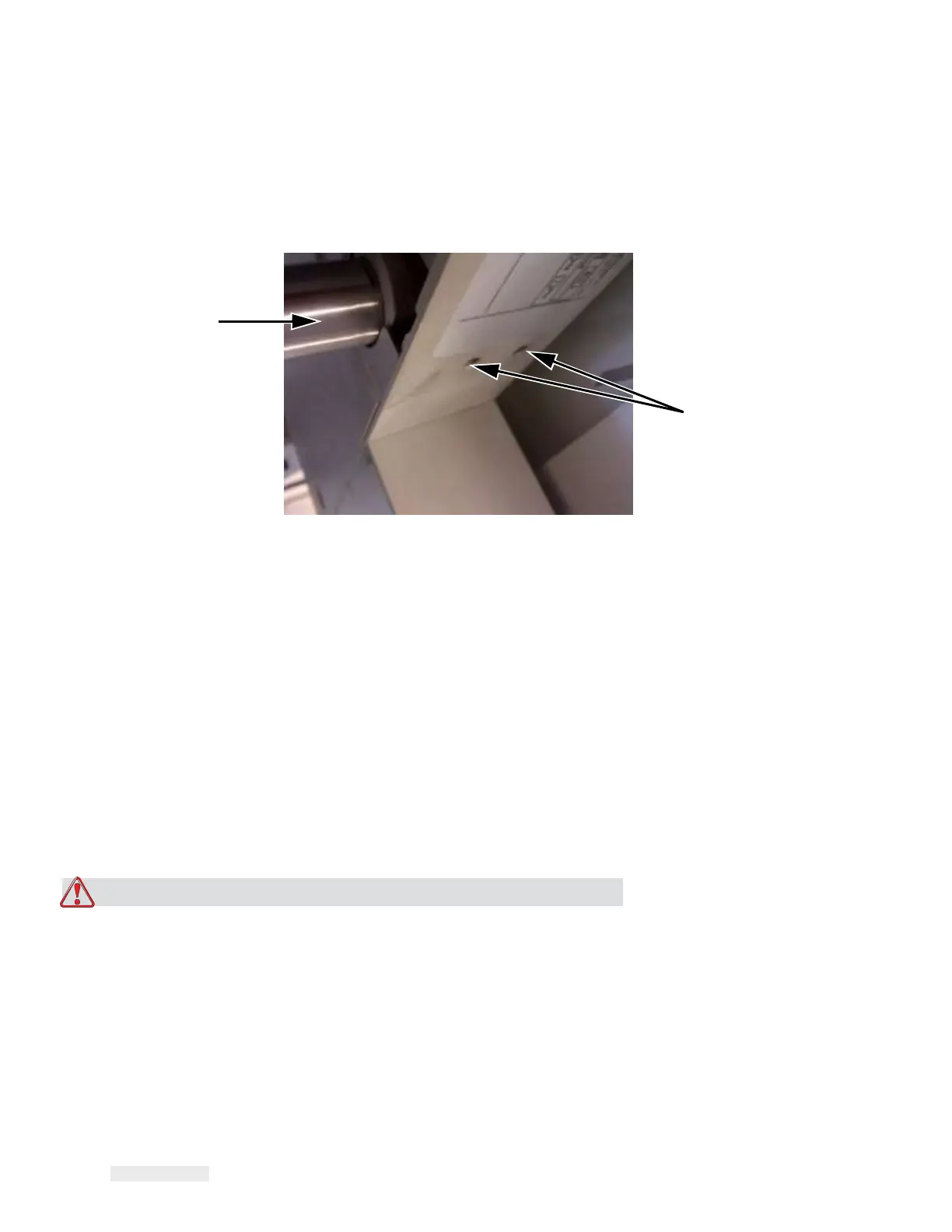

Figure 4-6:Stand Bar and Grub Screw
7
Place the LPA stand bars along with the LPA to the mounting fixture
ensuring that the LPA is within the correct footprint as shown in
Figure 4-
4 on page 4-8. Secure it by tightening the M8 screws (item 3,
Figure 4-5
on page 4-9).
8
Tighten the M6 grub screws (item 1, Figure 4-6) on the LPA.
9
When the LPA is secure in place, raise the feet and unlock the casters.
Move the stand and LPA into position on the production line.
Note: It is not recommended to transport the unit over long distances.
Warning
PERSONAL INJURY. Ensure that the unit is pushed by two or more
persons.
10
Secure the stand in position by locking the casters and lowering the
feet.
11
If necessary rotate the mounting fixture to place the LPA in the correct
location.
