5-10 How to Configure the LPA
ICE Vulcan Service Manual
The list of folders containing the configuration parameters appears in
the parameter listing (in
the right hand frame of the Configuration
Manager).

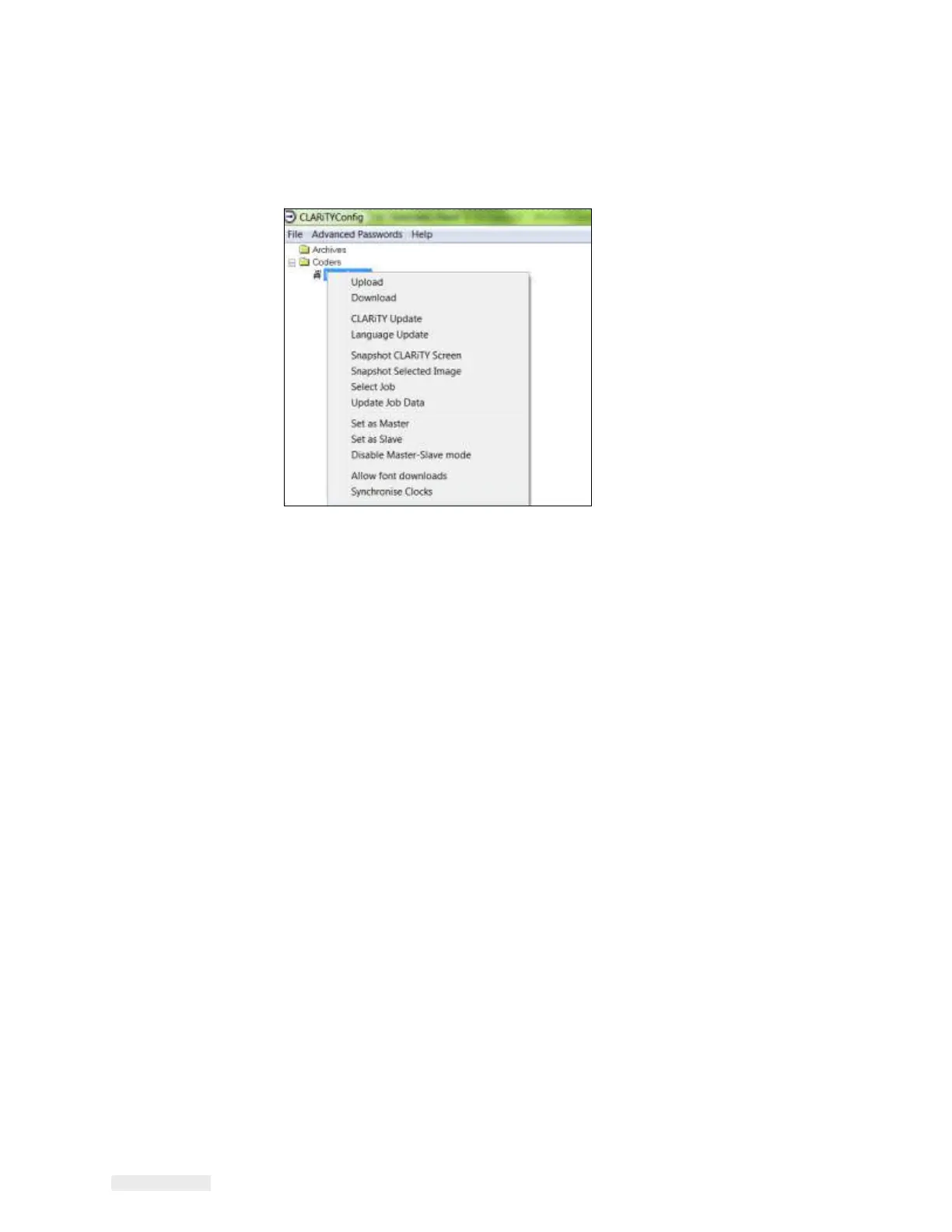

Figure 5-4: CLARiTY Configuration Manager
Note: It is possible to setup the IP address using the CLARiTY user interface
Archive feature with
USB. Refer to “Creating, Editing and Restoring a USB
Archive on a CLARiTY LPA” on page 5-17.
How to Connect the CLARiTY Configuration Manager to the LPA
using an Ethernet cable
The following components are required to connect the LPA to CLARiTY
Configuration
Manager via Ethernet cable:
•
Correct Ethernet cable
-
If connection is being made directly between the PC and the LPA, a
crossed Ethernet cable
must be used.
-
If the connection is being made via an office LAN or Ethernet hub, an ordinary uncrossed
patch cable is used.
•
Correct configuration of the PC ethernet port
•
Correct configuration of the LPA’s ethernet port
