3.6.9 Deleting block groups

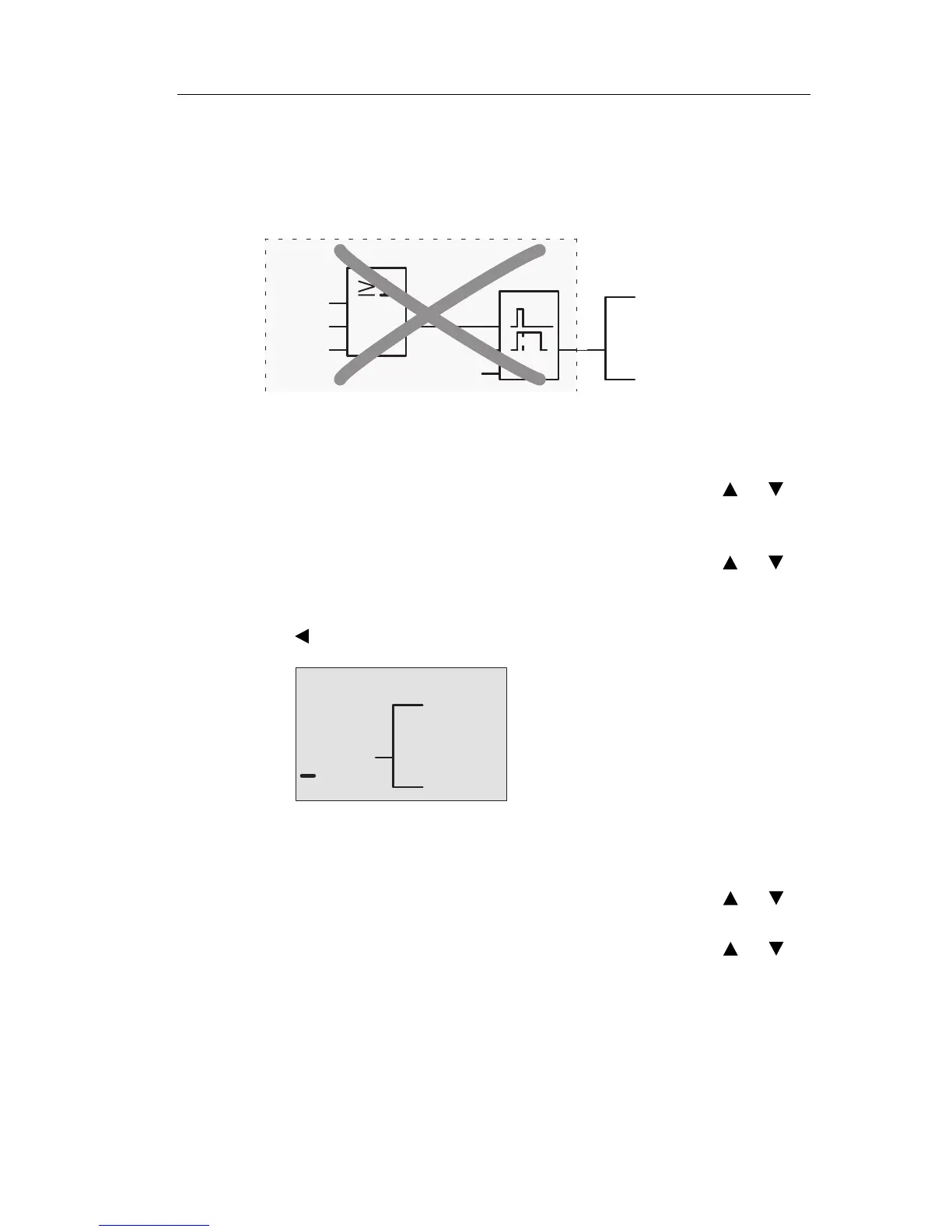

Let us assume you want to delete the blocks B1 and B2 from
the following circuit program (corresponds with the circuit
program in Chapter 3.7.7 ).
Proceed as follows:
1. Switch IDEC SmartRelay to programming mode
(as a reminder, refer to page 66).
2. To select ’Edit’: Press
or
3. To confirm ’Edit’: Press OK
(If required, enter your password and confirm with OK.)
4. To select ’Edit Prg’: Press
or
5. To confirm ’Edit Prg’: Press OK
6. To move the cursor to the input of Q1; that is, to B2, press
:
B2 Q1
7. Confirm with OK.
8. Now set the connector ’x’ at output Q1
instead of block
B2. To do so:
- Select the Co list: Press
or
- Accept the Co list: Press OK
-Select ’x’: Press
or
- Apply ’x’: Press OK
Result: Block B2 is de
leted, because it is no longer used in
the circuit. This includes all blocks connected to B2. In this
example, block B1 also.
