IDEC SmartRelay functions
114 IDEC SmartRelay Manual
4.2 Basic functions list - GF
Basic functions represent simple logical elements of
Boolean algebra.
You can invert the inputs of individual basic functions, th
at is,
the circuit program inverts a logical ”1” at a relevant input to
a logical ”0”; if ”0” is set at the input, the program sets a
logical ”1”. A programming example is found in Chapter
3.6.3.
The GF list contains the basic function b
locks yo
u can use
for your circuit program. The following basic functions are
available:

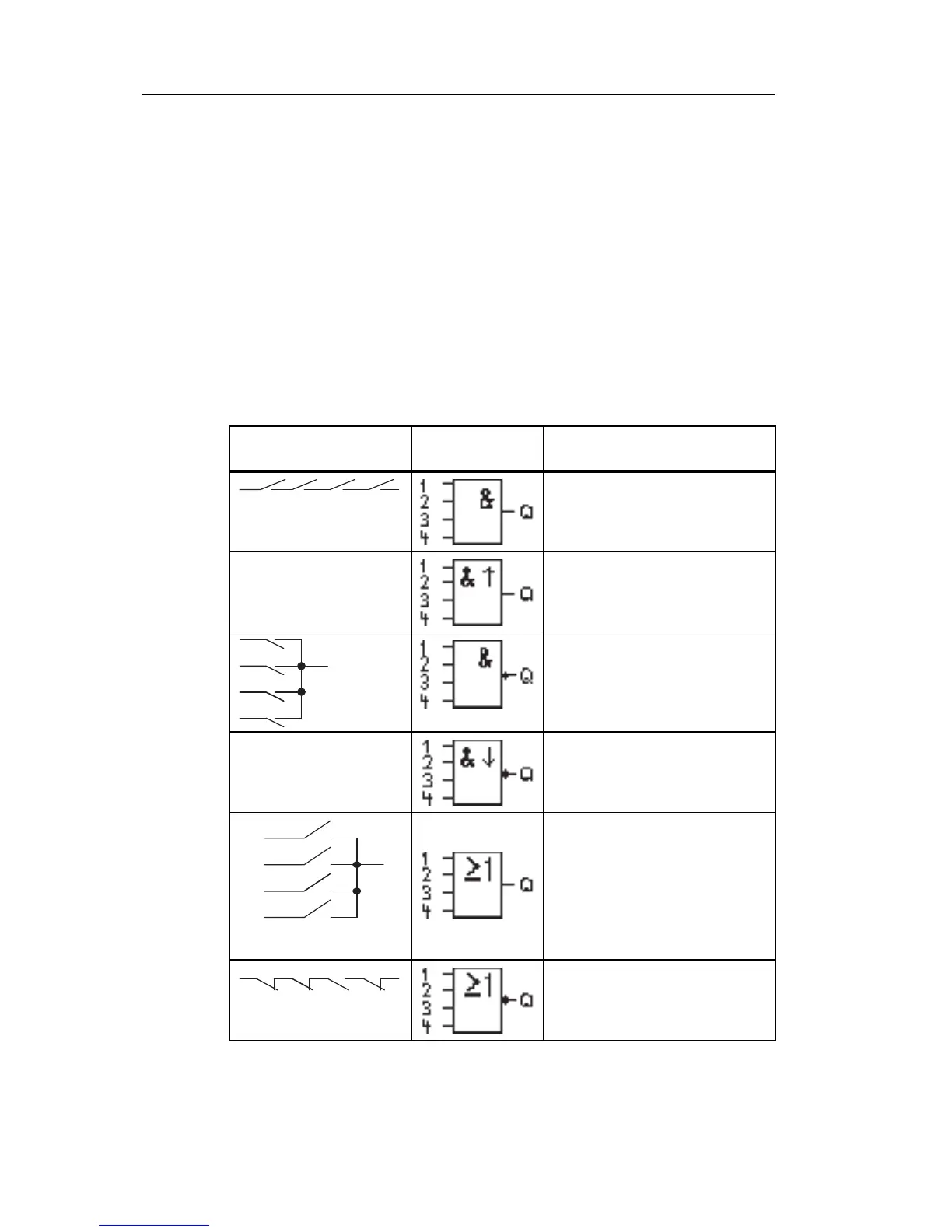

View in the circuit
diagram
View in IDEC
SmartRelay
Name of the basic function
AND
(see page
115)
AND with Edge Detection
(see page 116)
NAND
(not AND)
(see page 116)
NAND with Edge Detection
(see page 117)
OR
(see page 118)
NOR
(not OR)
(see page 119)
