IDEC SmartRelay Manual 325
C
IDEC SmartRelay without display
Because some specific applications do not require operator
control and monitoring units such as buttons or a display, we
provide the FL1E-B12RCE, FL1E-B12RCA and FL1E-
B12RCC versions without display.

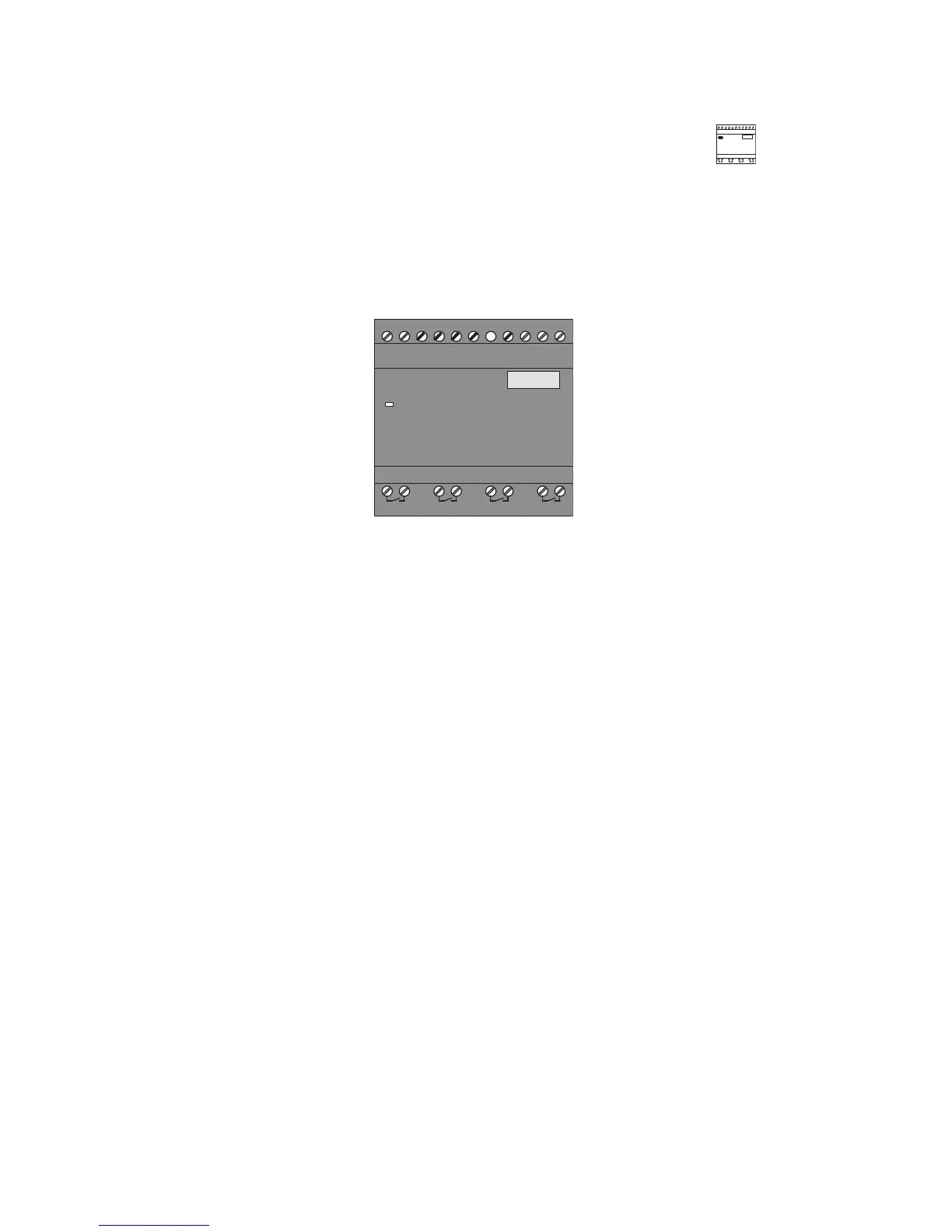

View of a FL1E-B12RCC, for example:
I4 I5 I6
Q1 Q2 Q3 Q4
L1 N
RUN/STOP
I7 I8
I1
I2 I3
I1
I2 I3
I1
I2 I3
I1
I2 I3
I1
I2 I3
I1
I2 I3
I1
I2 I3
I1
I2 I3
1 2 1 2 1 2 1 2
Less is definitely more!
The versions without display offer you the following benefits:
• Even more cost-effective without the operating element
• Requires less switch cabinet space than conventional
har
dware
• Substantial
benefits with regard to flexibility and prime
costs compa
red to stand-alone electronic switchgear
• Of advantage even for applications in which merely two
or thre
e conventional switching devices can be replaced
• Very easy to use
• Access protected
• Compatible to IDEC SmartRelay versions with display
• Offers the option to read data by means of WindLGC
Creating a circuit program without operator panel
There are two ways to create a circuit program for an IDEC
SmartR
elay without display:
•
You create the circuit program with WindLGC on your
PC
and then download it to IDEC SmartRelay (see Chapter
7).
• You download the circuit program from an IDEC Smart-
Relay memory cartridge or combined memory/battery
ca
rtridge
to your IDEC SmartRelay without display (see
Chapter 6).
