IDEC FL1E-H12RCE User Manual

IDEC SmartRelay functions
IDEC SmartRelay Manual 115
4.2.1 AND

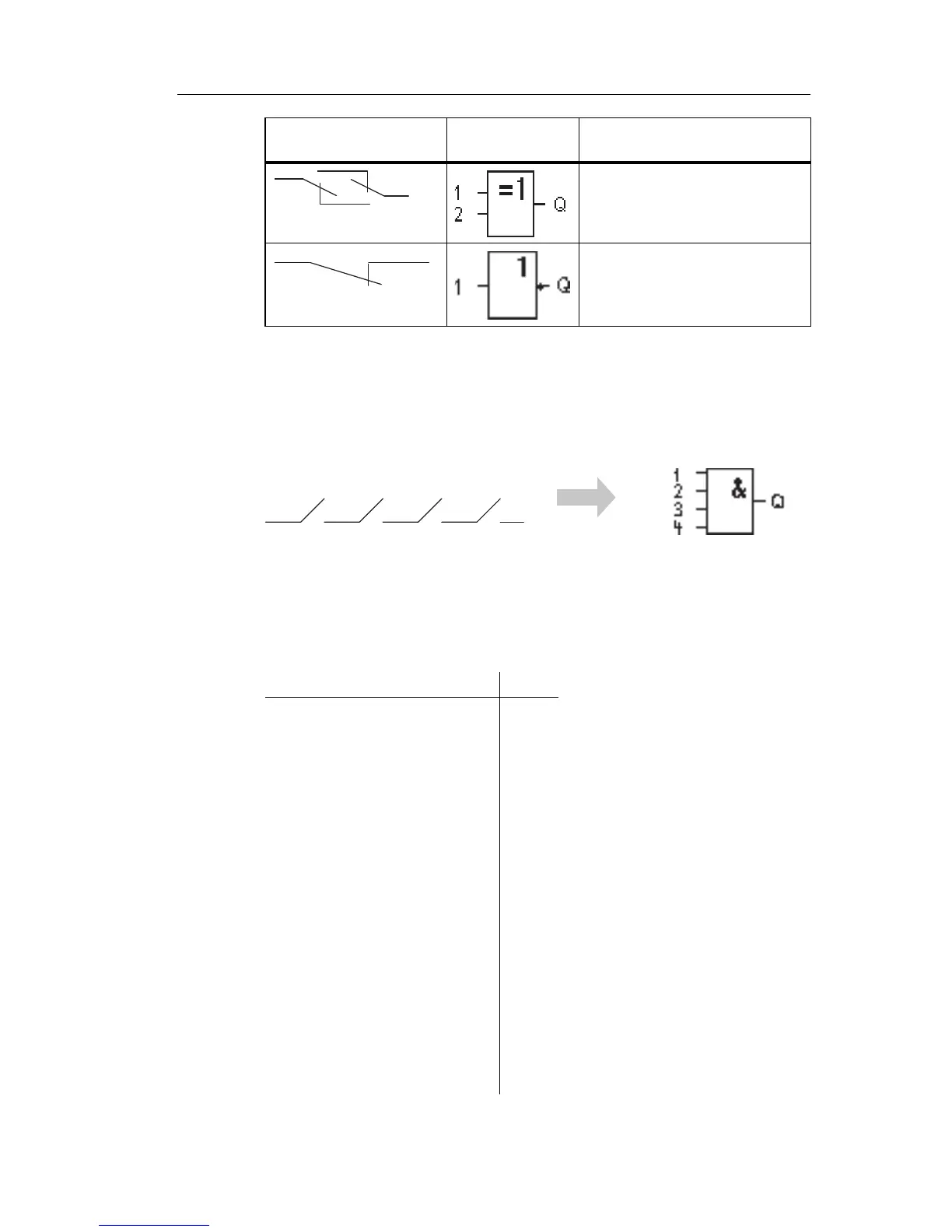

Circuit diagram of a series circuit with
several normally open contacts:
Symbol in IDEC SmartRelay:
The output of the AND is only 1 if all inputs are 1, i.e. all
contacts are closed.
At an unused block input (x): x = 1.
AND function logic table
XOR 
(exclusive OR)
(see page 120)
NOT 
(negation, inverter)
(see page 120)
1234Q
00000
00010
00100
00110
01000
01010
01100
01110
10000
10010
10100
10110
11000
11010
11100
11111
View in the circuit
diagram
View in IDEC
SmartRelay
Name of the basic function
Double changeover
contact
Normally Closed
Contact
