IDEC SmartRelay installation and wiring
30 IDEC SmartRelay Manual
2.2.3 Mounting the Text Display
To prepare the mounting surface for the optional Text
Display and mount it, follow these steps:

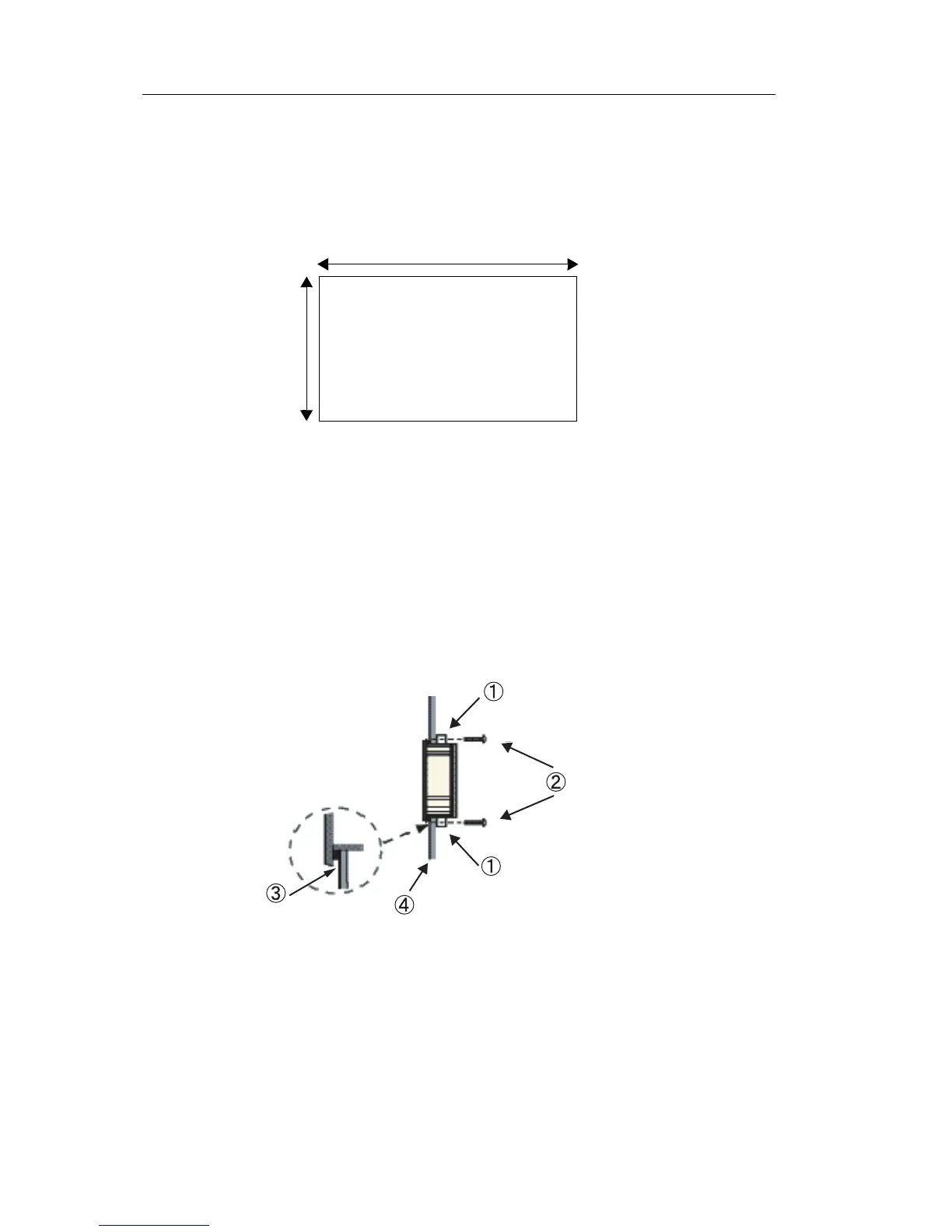

1. Cut a 119.5 mm x 78.5 mm hole in the mounting surface.
2. Place the included gasket on the frontplate of the Text
Display.
3. Fit the Text Display into the cutout you made in the
mounting
surface.
4. Attach the mounting brackets (included) to the Text
Display.
5. Tighten the mounting screws on the mounting brackets to
0.
15...0.2 Nm torque to
secure the Text Display.
¿
Mounting brackets
¡ Mounting screws
¬ Gasket
Ð Cabinet door or con-
trol panel (Thick-
ness: 1.5 to 4 mm)
You can then use the included cable to connect the Text
Display to the IDEC SmartRelay base module up to a
distance of 2.5 meters. You can extend this distance to up to
ten meters by using a standard Sub-D cable together with
the Text Display cable.
