IDEC SmartRelay installation and wiring
44 IDEC SmartRelay Manual
2.3.4 Connecting outputs
FL1E-H12RCA / FL1E-B12RCA / FL1E-H12RCC / FL1E-B12RCC /
FL1E-H12RCE / FL1E-B12RCE
The FL1E-H12RCA / FL1E-B12RCA / FL1E-H12RCC /
FL1E-B12RCC / FL1E-H12RCE / FL1E-B12RCE version
is
equipped with relay outputs. The potential of the relay
contacts is isolated from the power supply and the inputs.
Requirements for relay outputs
You can connect various loads to the outputs, e.g. lamps,
fluorescent lamps, motors,
contactor relays etc. For
information on the properties required for the loads
connected to FL1E-H12RCA / FL1E-B12RCA / FL1E-
H12RCC / FL1E-B12RCC / FL1E-H12RCE / FL1E-B12RCE,
refer to Appendix A.

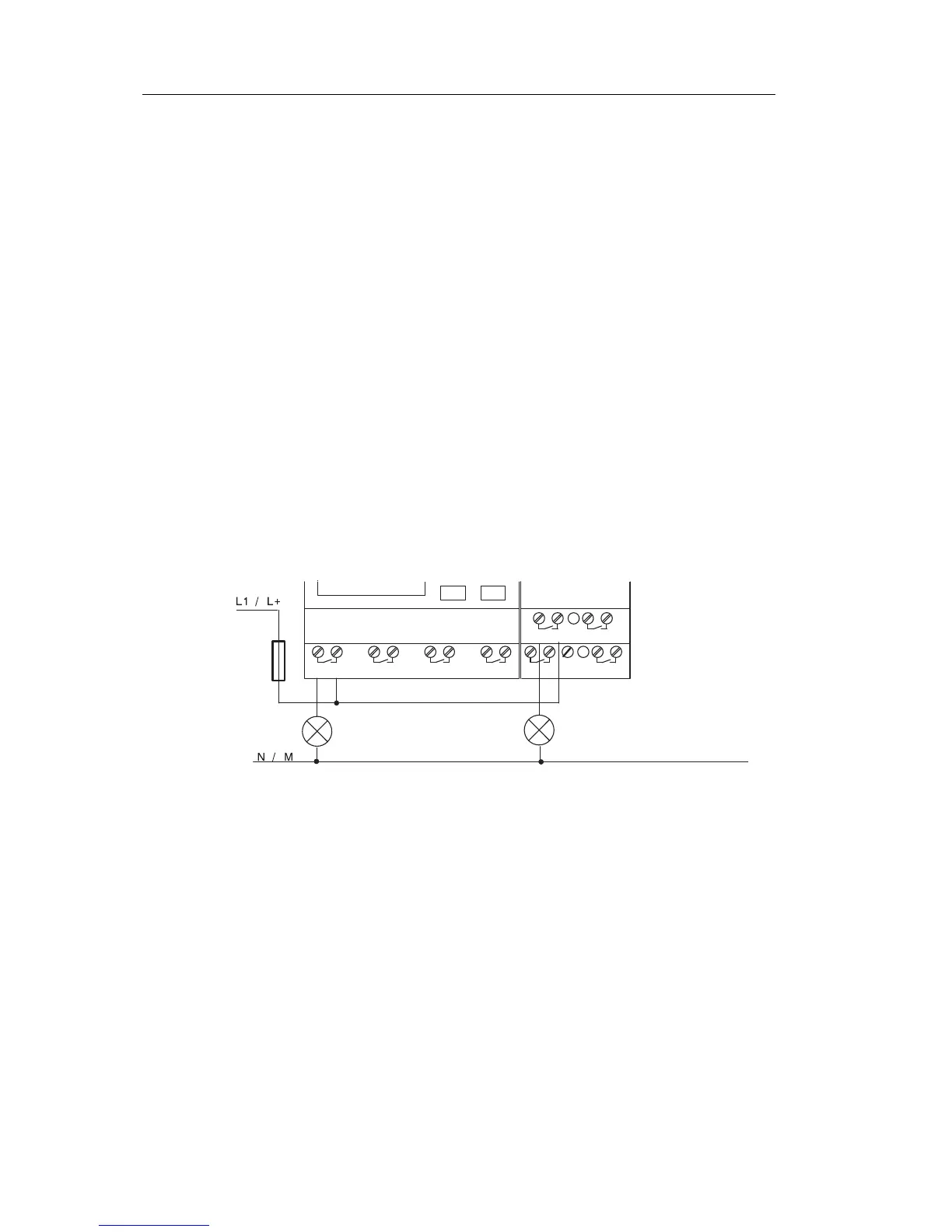

Connecting
This is how you connect the load to FL1E-H12RCA / FL1E-
B12RC
A / FL1E-H12RCC
/ FL1E-B12RCC / FL1E-H12RCE
/ FL1E-B12RCE:
Protection with automatic circuit-breaker, max. 16 A, characteristics
B16, e.g.: Power circuit-breaker 5SX2 116-6 (if required)
IDEC SmartRelay with transistor outputs
IDEC SmartRelay versions with transistor
outputs can be
identified by the fact that the letter R is missing from their
type name. The outputs are short circuit-proof and overload-
proof. An auxiliary load voltage supply is not necessary,
because IDEC SmartRelay supplies the load voltage.
